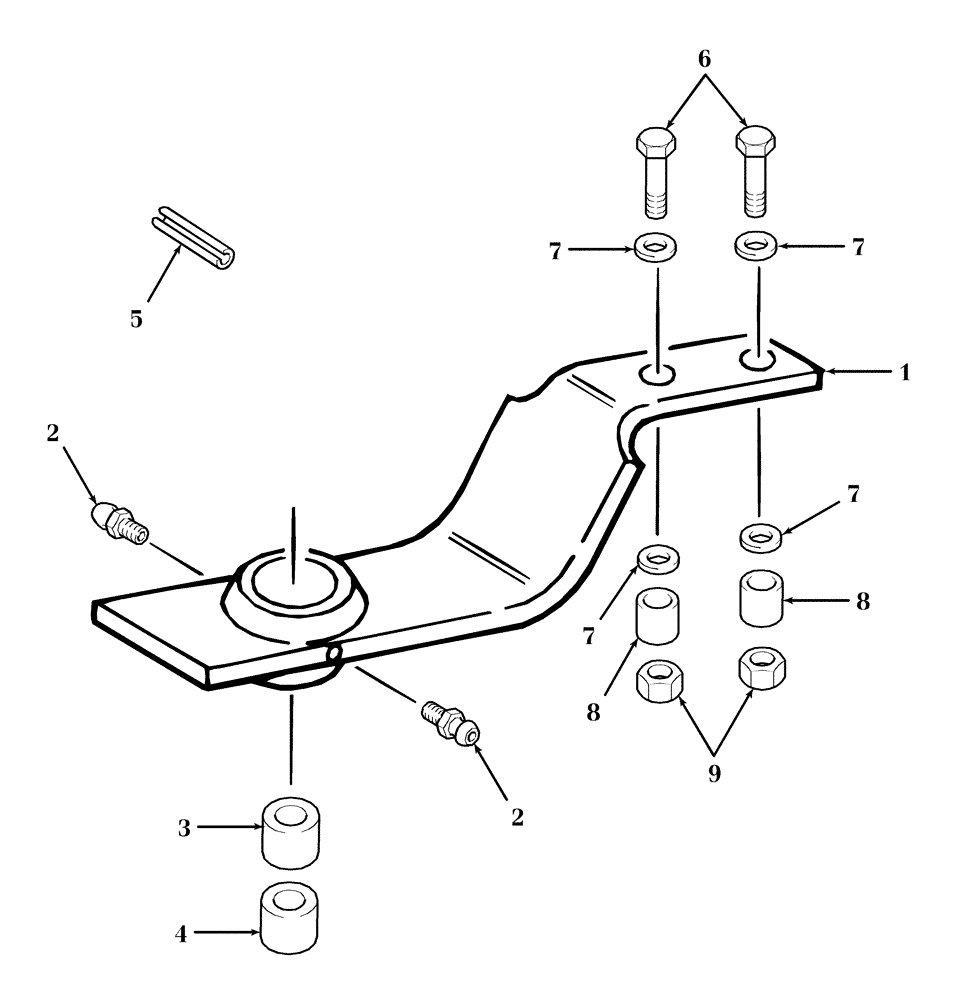

Запчасти Case IH SBX530 (064) - HITCH, AUSTRALIA (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

1

86629994

HITCH ASSY

Incl 2, 10

1шт.

2

219-87

LUBE NIPPLE,1/4" - 28 NPTF

2шт.

3

9820250

SLEEVE

1шт.

4

9820243

SLEEVE

1шт.

5

86544249

GROOVED PIN,3/16" x 5/8", Type A

1шт.

6

814-16150

BOLT,Hex, M16 x 2 x 150mm, Cl 8.8

2шт.

7

130358

WASHER,16.28mm ID x 38.35mm OD x 4.11mm Thk

Hardened, 5/8"

4шт.

8

9802046

SPACER

2шт.

9

832-46416

NUT,M16 x 2, Cl 8

2шт.

10

NSS

NOT SOLD SEPARAT

Ball Joint, Incl in 1

1шт.
