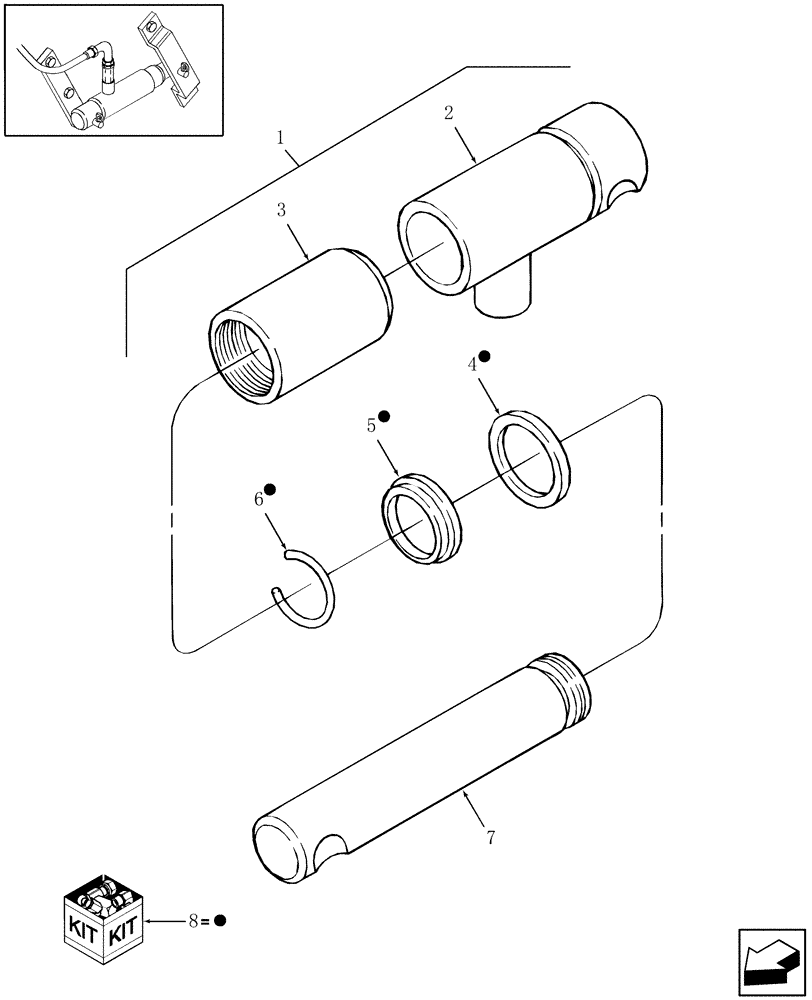

Запчасти Case IH SBX530 (056) - HYDRAULIC CYLINDER, HYDRAULIC PICKUP LIFT (35) - HYDRAULIC SYSTEMS

1

849372

CYLINDER

Pickup Lift

1шт.

Manufacturer's Production Date Stamp - (ex. 02 03 = week / year )

1шт.

1

87027465

HYDRAULIC CYLINDER,28.57mm Rod, 76.2mm Stroke

HYDRAULIC CYLINDER Pickup Lift

1шт.

Manufacturer's Production Date Stamp - (ex. M 02 2003 = M / week / year )

1шт.

2

NSS

NOT SOLD SEPARAT

Cylinder Barrel

1шт.

3

NSS

NOT SOLD SEPARAT

Cylinder Head

1шт.

4

NSS

NOT SOLD SEPARAT

Seal, Wiper

1шт.

5

NSS

NOT SOLD SEPARAT

Seal, Rod

1шт.

6

NSS

NOT SOLD SEPARAT

Retaining Ring

1шт.

7

771598

PISTON ROD

Piston

1шт.

Component of 849372 Hydraulic Cylinder

1шт.

7

87030037

PISTON ROD

1шт.

Component of 87027465 Hydraulic Cylinder

1шт.

8

798979

SEAL KIT

1шт.

Component of 849372 Hydraulic Cylinder

1шт.

8

87030873

SEAL KIT

1шт.

Component of 87027465 Hydraulic Cylinder

1шт.
