Запчасти Case IH SBX530 (018) - POWER TAKE OFF SLIP CLUTCH, SBX530 & SBX540 (31) - IMPLEMENT POWER TAKE OFF

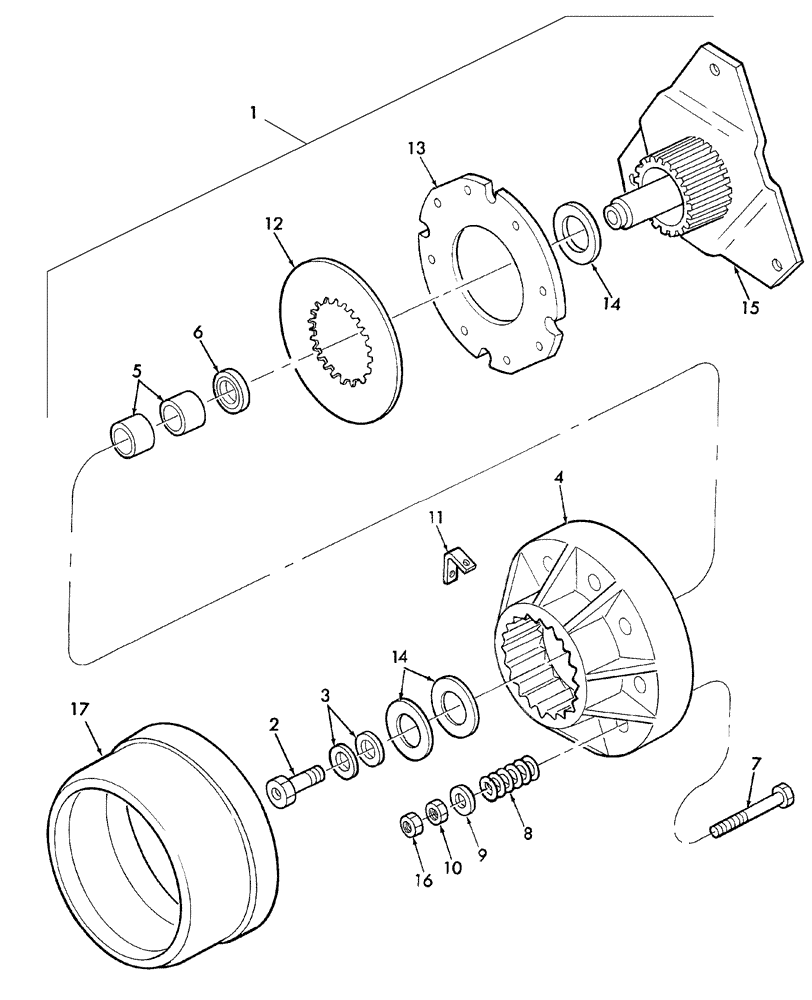

Схема запчастей Case IH SBX530 - (018) - POWER TAKE OFF SLIP CLUTCH, SBX530 & SBX540 (31) - IMPLEMENT POWER TAKE OFF
2
17
14
7
1
16
4
15
12
8
9
11
13
3
10
14
6
5

Артикул

Название

Примечание

Количество

1

86626076

CLUTCH

PTO Slip, SBX 530

1шт.

1

86626079

CLUTCH

PTO Slip, SBX 540

1шт.

2

221481

BOLT,Hex, 1/4" - 28 x 1-3/4", Gr 5

HH, Drilled, G5, 1/2"-13 x 1-3/4"

1шт.

219-90

LUBE NIPPLE,45 Degree Elbow, 1/4" -28 NPTF

1шт.

3

65319

WASHER,13.1mm ID x 25.4mm OD x 3.68mm Thk

2шт.

4

86640861

HOUSING

SBX530, Includes: Ref. 5

1шт.

4

9828556

HOUSING

SBX540, Includes: Ref. 5 & 6

1шт.

5

184317

BUSHING,34.88mm ID x 38.13mm OD x 33.3mm L

2шт.

6

46886

OIL SEAL,34.92mm ID x 44.76mm OD x 5.13mm Thk

SBX540

1шт.

7

814-10120

BOLT,Hex, M10 x 1.5 x 120mm, Cl 8.8

CRS, SBX530

8шт.

7

814-10140

BOLT,Hex, M10 x 1.5 x 140mm, Cl 8.8

SBX540

8шт.

8

86836510

SPRING

8шт.

9

9801065

WASHER

Hardened, 3/8"

8шт.

10

100016

NUT,M10 x 1.5, Cl 8

16шт.

11

645650

BRACKET

3шт.

614-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

3шт.

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

3шт.

825-1406

NUT,M6, Cl 8

3шт.

12

261798

CLUTCH PLATE,101.6mm ID x 174.6mm OD x 7.11mm Thk

Friction, Quantity 2 for sbx530, Quantity of 3 for sbx540

2/3шт.

13

258425

CLUTCH PLATE

Quantity 2 for sbx530 and quantity of 3 for sbx540

2/3шт.

14

189423

SHIM,.030" Thk

3шт.

15

849379

CLUTCH DRIVING PLATE

SBX530

1шт.

15

849376

CLUTCH DRIVING PLATE

SBX540

1шт.

827-12055

BOLT,Hex, M12 x 1.75 x 55mm, Cl 10.9

3шт.

262183

WASHER

Heat Treated

3шт.

16

829-4410

THIN NUT,Thin, M10 x 1.5, Cl 05

8шт.

17

86630327

SHIELD

1шт.

614-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

3шт.

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

3шт.

825-1406

NUT,M6, Cl 8

3шт.

Выбрано товаров: 30
