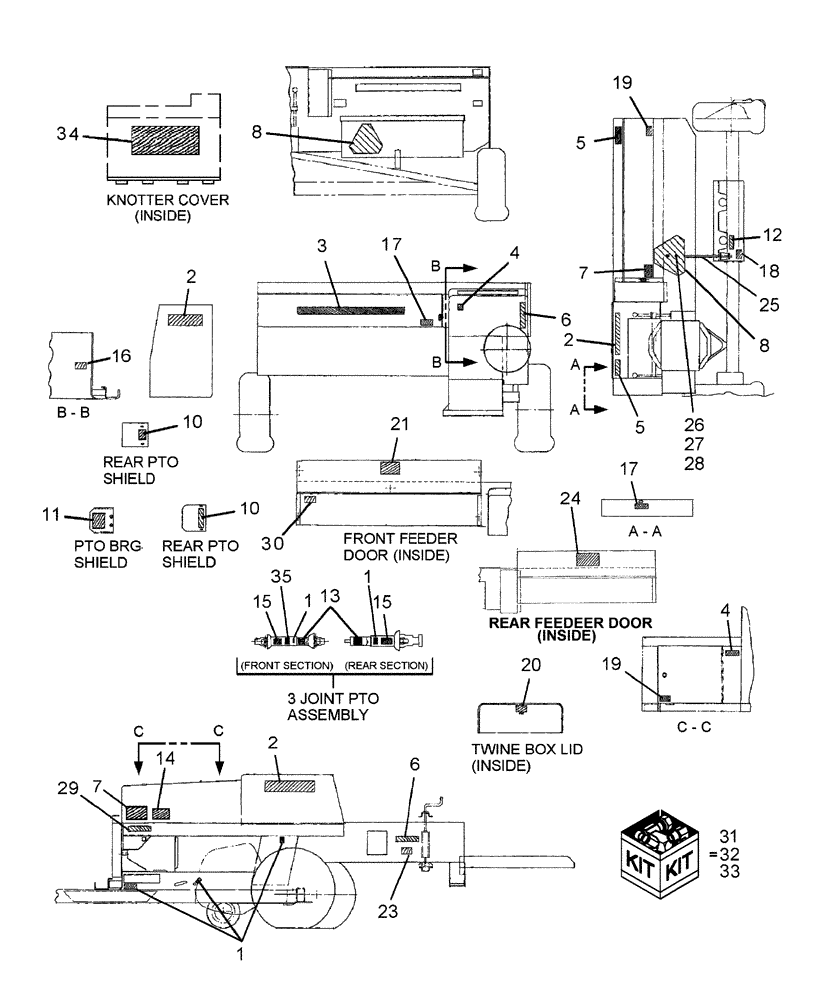

Запчасти Case IH SBX520 (073) - DECALS (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

165109

DECAL

Lube Fitting

5шт.

2

86624776

DECAL

3шт.

3

86629209

DECAL

SBX540

1шт.

3

86629208

DECAL

SBX530

1шт.

3

86629207

DECAL

SBX520

1шт.

4

NSS

NOT SOLD SEPARAT

DECAL Hydraulic Pump

1шт.

635935

1шт.

5

86547781

REFLECTOR,RED

Red Retroreflective

2шт.

6

86547782

REFLECTOR,YELLOW

Yellow Reflective

3шт.

7

86622073

WARNING DECAL

English

1шт.

7

86622074

WARNING DECAL

WARNING, French

1шт.

8

86547710

EMBLEM

KIT Includes: SMV Decal and Backing

1шт.

Backing NSS, Ref. 26, 27, & 28 Mount SMV to Pole, Ref. 25

1шт.

9

86547711

DECAL,SMV

SMV (Australia)

1шт.

10

221252

DECAL

Instructions, PTO

1шт.

11

708659

DECAL

ATTENTION, PTO

1шт.

12

786531

DECAL

Wire Threading (Not Used in Australia)

1шт.

13

849472

DANGER DECAL

English

2шт.

13

849483

DANGER DECAL

French

2шт.

14

87041060

WARNING DECAL

English

1шт.

14

87042011

WARNING DECAL

WARNING, French

1шт.

15

849471

DANGER DECAL

English

2шт.

15

849482

DANGER DECAL

French

2шт.

16

NSS

NOT SOLD SEPARAT

PLATE, Serial Number

1шт.

16

86598785

SELF-TAP SCREW

Rd Hd, Stainless Steel, #4 x 1/4"

2шт.

17

86626958

WARNING DECAL

English

1шт.

17

86626962

WARNING DECAL

1шт.

18

NSS

NOT SOLD SEPARAT

DECAL Wire Specs.

1шт.

705747

1шт.

19

86629205

WARNING DECAL

English

3шт.

19

86630249

WARNING SIGN

French

1шт.

20

86529671

DECAL

Twine Threading

1шт.

North America

1шт.

20

NSS

NOT SOLD SEPARAT

DECAL Twine Threading {9843061}

1шт.

Australia

1шт.

21

9804078

DECAL

RotorTiming, SBX530 & 540

1шт.

22

9622377

DECAL

Hook (Not Shown)

1шт.

Not Part of Svc. Kit, Not Used in Australia

1шт.

23

86630717

WARNING DECAL

English

1шт.

23

86630250

WARNING DECAL

French

1шт.

24

NSS

NOT SOLD SEPARAT

DECAL Timing

1шт.

47604

1шт.

25

195036

PLATE

Pole

1шт.

Not Part of Svc. Kit, Not Used in Australia

1шт.

26

225-14110

NUT,#10-24

2шт.

27

492-11010

LOCK WASHER,#10

2шт.

28

84821

SCREW,Truss HD, #10 - 24 x 1/2"

2шт.

29

86605188

DECAL

ATTENTION

1шт.

30

NSS

NOT SOLD SEPARAT

DECAL More Storage

1шт.

242957

1шт.

31

86633285

DECAL KIT

SBX540

1шт.

French Language Option Ordered From Wholegoods

1шт.

32

86633770

DECAL KIT

SBX520

1шт.

French Language Option Ordered From Wholegoods

1шт.

33

86633698

DECAL KIT

SBX530

1шт.

French Language Option Ordered From Wholegoods

1шт.

34

87017126

DECAL

Knotter Adjustment

1шт.

35

87041061

WARNING DECAL

English

1шт.

35

87042013

DECAL

WARNING, French

1шт.
