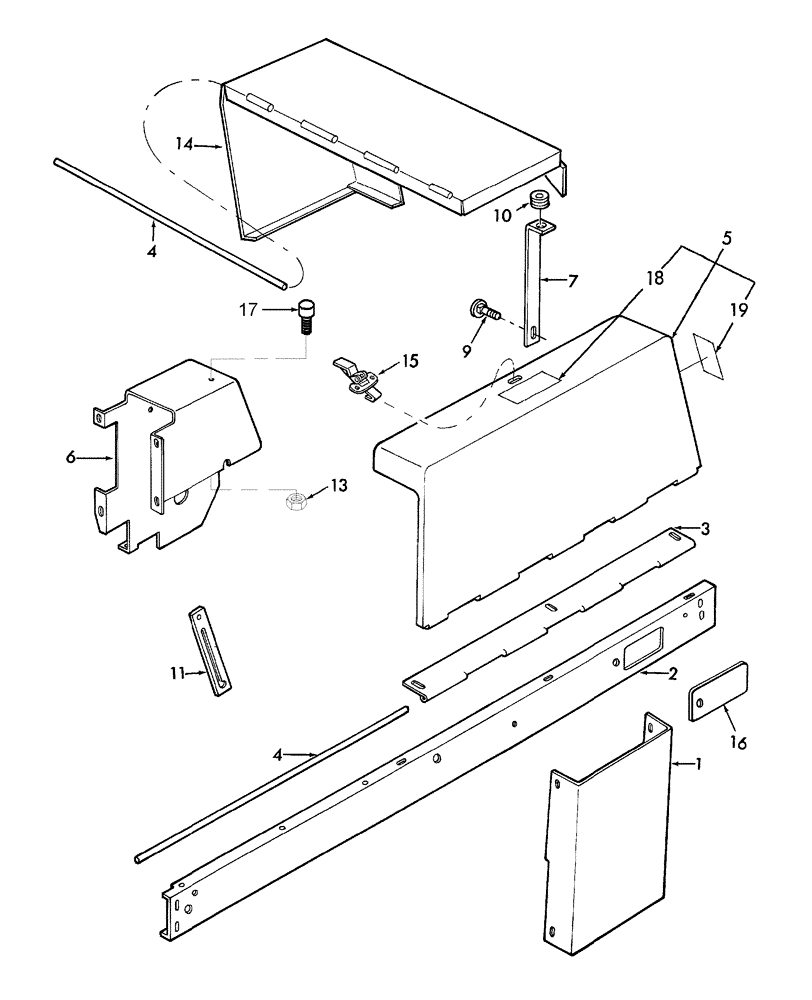

Запчасти Case IH SBX520 (007) - SHIELDS, LH (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

86626096

SHIELD

Pickup Drive

1шт.

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

4шт.

495-11034

WASHER,5/16", SAE

4шт.

492-11031

LOCK WASHER,5/16"

4шт.

825-1408

NUT,M8, Cl 8

4шт.

2

86626107

CHANNEL

1шт.

86521614

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1шт.

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

2шт.

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

495-11034

WASHER,5/16", SAE

4шт.

86513238

LOCK WASHER,.515” ID x 1.070” OD x .120” TK

1/2"

1шт.

492-11031

LOCK WASHER,5/16"

4шт.

280431

NUT,1/2"-13, G5

1шт.

825-1408

NUT,M8, Cl 8

2шт.

425-105

NUT,5/16"-18, G5

4шт.

3

86626086

HINGE

1шт.

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

3шт.

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

3шт.

495-11034

WASHER,5/16", SAE

3шт.

492-11031

LOCK WASHER,5/16"

3шт.

825-1408

NUT,M8, Cl 8

3шт.

425-105

NUT,5/16"-18, G5

3шт.

4

637576

PIN,4.76mm OD x 2057.4mm L

Hinge, 3/16" x 81" Cut To Length

2шт.

5

86635529

SHIELD

Side, LH, Includes Ref. 18 & 19

1шт.

6

86635527

SHIELD

Knotter

1шт.

811-8020

CARRIAGE BOLT,Sht Sq Nk, M8 x 1.25 x 20mm, Cl 8.8

5шт.

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

5шт.

495-11034

WASHER,5/16", SAE

5шт.

492-11031

LOCK WASHER,5/16"

5шт.

825-1408

NUT,M8, Cl 8

5шт.

425-105

NUT,5/16"-18, G5

5шт.

7

86640938

SUPPORT

1шт.

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

1шт.

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

1шт.

425-106

NUT,3/8"-16, Cl 5

1шт.

8

86978500

SPACER

1шт.

9

811-10030

CARRIAGE BOLT,Sht Sq Nk, M10 x 1.5 x 30mm, Cl 8.8

SBX520 & SBX530

1шт.

9

811-10040

CARRIAGE BOLT,Sht Sq Nk, M10 x 1.5 x 40mm, Cl 8.8

SBX540

1шт.

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

1шт.

825-1410

NUT,M10, Cl 8

1шт.

10

174265

GROMMET

1шт.

11

86629754

LATCH

1шт.

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

1шт.

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

1шт.

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

1шт.

495-21038

WASHER,5/16"

2шт.

832-46408

NUT,M8 x 1.25, Cl 8

2шт.

280736

NUT,5/16"-18, GC

2шт.

825-1408

NUT,M8, Cl 8

1шт.

425-105

NUT,5/16"-18, G5

1шт.

13

425-104

NUT,1/4"-20, Cl 5

2шт.

14

86635525

COVER

Knotter

1шт.

15

244457

LATCH

1шт.

16

86635539

COVER

1шт.

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

1шт.

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

458-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

492-11031

LOCK WASHER,5/16"

1шт.

425-105

NUT,5/16"-18, G5

1шт.

17

9844656

BUMPER

1шт.

18

86626958

WARNING DECAL

English

1шт.

19

86547781

REFLECTOR,RED

Red Retroreflective

1шт.
