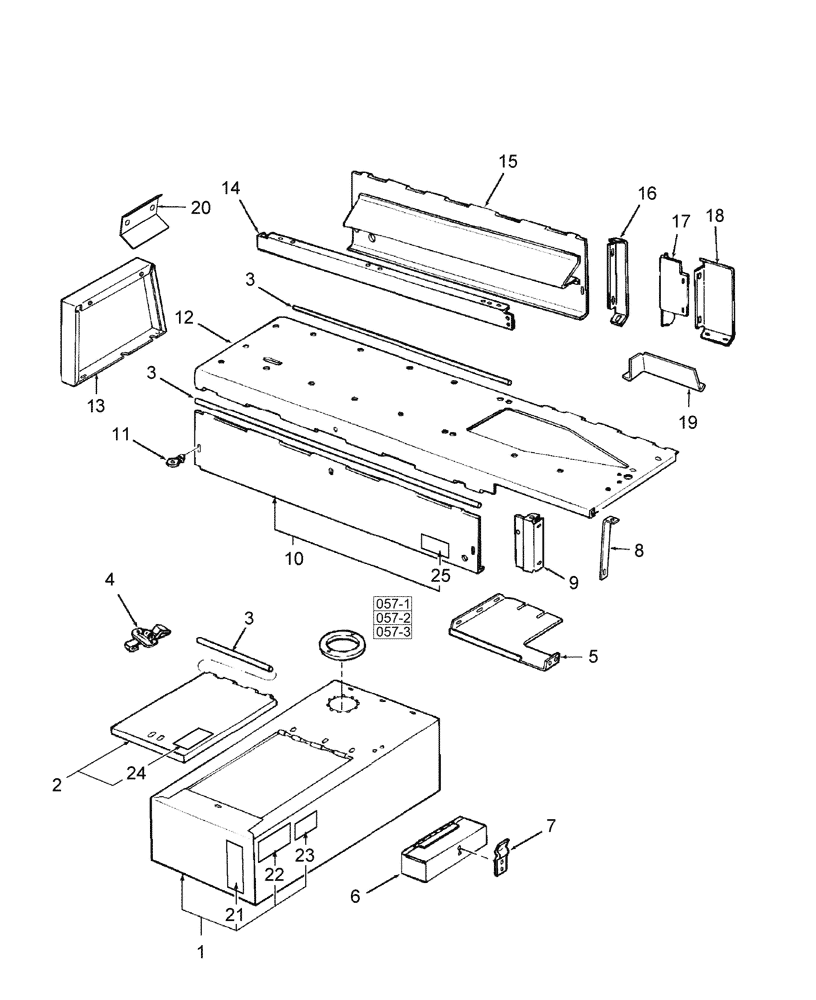

Запчасти Case IH SBX520 (006) - SHIELDS, RH (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

86635523

HOOD

1шт.

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

6шт.

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

5шт.

495-11034

WASHER,5/16", SAE

6шт.

495-11028

WASHER,1/4", SAE

5шт.

492-11031

LOCK WASHER,5/16"

6шт.

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

5шт.

825-1408

NUT,M8, Cl 8

6шт.

825-1406

NUT,M6, Cl 8

5шт.

829-1405

NUT,M5, Cl 10

4шт.

2

86837175

DOOR ASSY.

Includes: Ref. 21

1шт.

3

637576

PIN,4.76mm OD x 2057.4mm L

Hinge, 3/16" x 81" Cut To Length

3шт.

614-5020

BOLT,Hex, M5 x 0.8 x 20mm, Cl 8.8, Full Thd

4шт.

495-31025

WASHER,3/16"

4шт.

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

4шт.

4

244457

LATCH

1шт.

6

86635458

TOOL BOX

1шт.

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

2шт.

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

495-21044

WASHER,3/8"

6шт.

495-11028

WASHER,1/4", SAE

(.065" Thk)

2шт.

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

2шт.

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

2шт.

825-1406

NUT,M6, Cl 8

2шт.

425-106

NUT,3/8"-16, Cl 5

2шт.

7

9801069

LATCH

1шт.

84893

SCREW,Slotted Truss Hd, #10 - 24 x 3/8"

2шт.

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

2шт.

225-14110

NUT,#10-24

2шт.

8

9604510

SUPPORT

SBX520

1шт.

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

2шт.

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

458-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

495-11034

WASHER,5/16", SAE

2шт.

492-11031

LOCK WASHER,5/16"

2шт.

825-1408

NUT,M8, Cl 8

2шт.

425-105

NUT,5/16"-18, G5

2шт.

9

86635556

FILLER

1шт.

413-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

4шт.

495-11028

WASHER,1/4", SAE

4шт.

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

4шт.

825-1406

NUT,M6, Cl 8

4шт.

425-104

NUT,1/4"-20, Cl 5

4шт.

10

86635512

DOOR ASSY.

SBX520 & SBX530

1шт.

10

86635609

DOOR ASSY.

SBX540

1шт.

11

264552

FASTENER

6шт.

12

86635519

TOP COVER

SBX520, Serial Range: -HBJ0044430

1шт.

12

87711272

SBX520, Includes: Ref. 27, Start Serial: HBJ0044431

1шт.

12

86635568

TOP COVER

SBX530, Serial Range: -HBJ0044430

1шт.

12

87711103

TOP COVER

SBX530, Includes: Ref. 27, Start Serial: HBJ0044431

1шт.

12

86635613

TOP COVER

SBX540, Serial Range: -HBJ0044430

1шт.

12

87674668

TOP COVER

SBX540, Includes: Ref. 27, Start Serial: HBJ0044431

1шт.

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

1шт.

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

458-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

811-10030

CARRIAGE BOLT,Sht Sq Nk, M10 x 1.5 x 30mm, Cl 8.8

6шт.

433-620

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

6шт.

495-11034

WASHER,5/16", SAE

1шт.

492-11031

LOCK WASHER,5/16"

1шт.

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

6шт.

825-1408

NUT,M8, Cl 8

1шт.

425-105

NUT,5/16"-18, G5

1шт.

825-1410

NUT,M10, Cl 8

6шт.

425-106

NUT,3/8"-16, Cl 5

6шт.

14

9604436

SUPPORT

SBX520 & SBX530, Serial Range: -HBJ0044430

1шт.

14

87705280

SUPPORT

SBX520 & SBX530, Includes: (5) Ref. 26, Start Serial: HBJ0044431

1шт.

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

1шт.

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

458-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

495-11034

WASHER,5/16", SAE

1шт.

492-11031

LOCK WASHER,5/16"

1шт.

825-1408

NUT,M8, Cl 8

1шт.

425-106

NUT,3/8"-16, Cl 5

1шт.

14

9604414

SUPPORT

SBX540, Serial Range: -HBJ0044430

1шт.

14

87711695

TOP COVER

SBX540, Includes: (5) Ref. 26, Start Serial: HBJ0044431

1шт.

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

8шт.

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

8шт.

458-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

8шт.

495-11034

WASHER,5/16", SAE

8шт.

492-11031

LOCK WASHER,5/16"

8шт.

825-1408

NUT,M8, Cl 8

8шт.

425-106

NUT,3/8"-16, Cl 5

8шт.

15

86635516

DOOR ASSY.

Rear, SBX520

1шт.

15

86635570

DOOR ASSY.

Rear, SBX530

1шт.

15

86635611

DOOR ASSY.

Rear, SBX540

1шт.

16

86635514

FILLER

SBX520

1шт.

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

4шт.

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

458-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

495-11034

WASHER,5/16", SAE

4шт.

425-105

NUT,5/16"-18, G5

4шт.

492-11031

LOCK WASHER,5/16"

4шт.

17

86630215

SUPPORT

SBX530 & SBX540

1шт.

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

3шт.

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

3шт.

458-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

3шт.

495-11034

WASHER,5/16", SAE

3шт.

492-11031

LOCK WASHER,5/16"

3шт.

825-1408

NUT,M8, Cl 8

3шт.

425-105

NUT,5/16"-18, G5

3шт.

18

86635566

FILLER

SBX530 & SBX540

1шт.

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

1шт.

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

458-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

495-11034

WASHER,5/16", SAE

1шт.

492-11031

LOCK WASHER,5/16"

1шт.

825-1408

NUT,M8, Cl 8

1шт.

425-105

NUT,5/16"-18, G5

1шт.

19

86630331

GUARD

SBX530 & SBX540

1шт.

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

1шт.

495-11034

WASHER,5/16", SAE

1шт.

492-11031

LOCK WASHER,5/16"

1шт.

825-1408

NUT,M8, Cl 8

1шт.

20

86635531

COVER

Track End

1шт.

21

86547782

REFLECTOR,YELLOW

Yellow Retroreflective

1шт.

22

86622073

WARNING DECAL

English

1шт.

22

86622074

WARNING DECAL

WARNING, French

1шт.

23

87041060

WARNING DECAL

English

1шт.

23

87042011

WARNING DECAL

WARNING, French

1шт.

24

86629205

WARNING DECAL

English

1шт.

24

86630249

WARNING SIGN

French

1шт.

25

86626958

WARNING DECAL

English

1шт.

25

86626961

WARNING DECAL

French

1шт.

26

86610200

THREADED INSERT,M8 x 1.25

1шт.

Not Illustrated

1шт.

27

86547781

REFLECTOR,RED

Red Retroreflective

1шт.

Not Illustrated

1шт.
