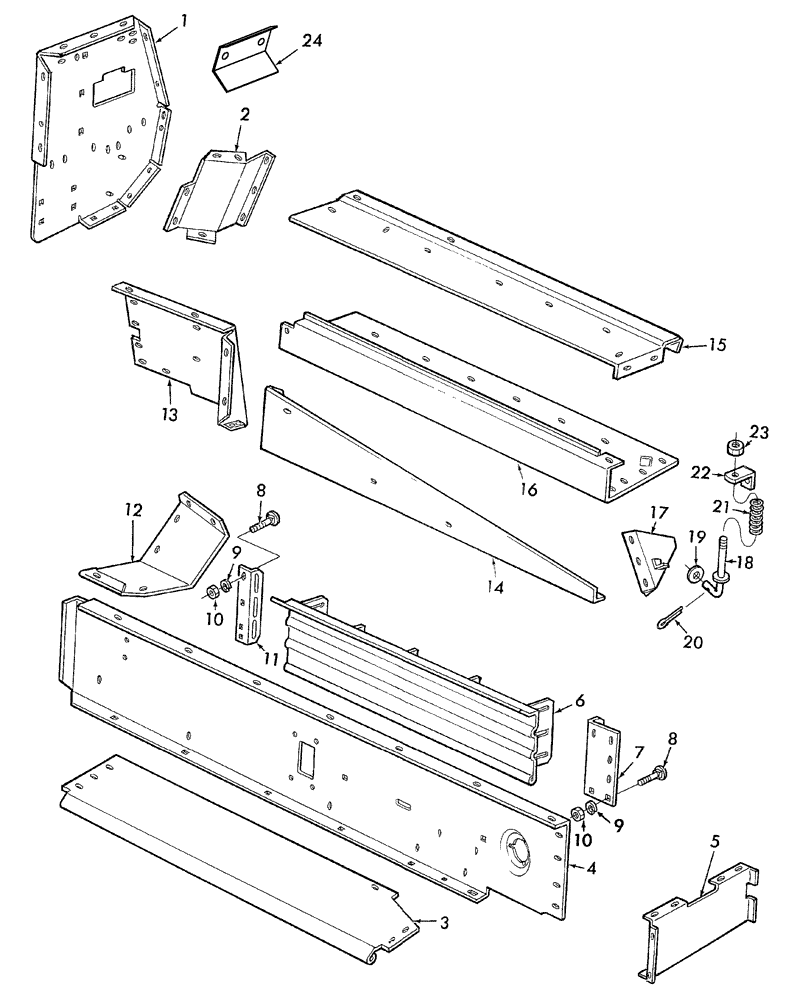

Запчасти Case IH SBX520 (035) - FEEDER SHIELDING, SBX520 (60) - PRODUCT FEEDING

1

86635509

SUPPORT

End, Serial Range: -HBJ0044430

1шт.

1

87711550

SUPPORT

End, Includes (3) Ref. 25, Start Serial: HBJ0044431

1шт.

2

9604451

PIPE

1шт.

381014

SCREW,Flng, M8 x 16mm

HWH, M8 x 1.25 x 16

2шт.

433-512

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

Feeder, Includes (3) Ref. 25

5шт.

492-11031

LOCK WASHER,5/16"

5шт.

425-105

NUT,5/16"-18, G5

5шт.

3

86635493

BOTTOM

Feeder

1шт.

433-612

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 5

2шт.

492-11031

LOCK WASHER,5/16"

6шт.

425-106

NUT,3/8"-16, Cl 5

2шт.

4

849209

SUPPORT

Feeder, Serial Range: -HBJ0044430

1шт.

4

87704747

SUPPORT

Feeder, Includes (7) Ref. 25, Start Serial: HBJ0044431

1шт.

88682

CARRIAGE BOLT,Short Nk, 3/8"-16 x 1", Gr 5

3шт.

433-512

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

6шт.

145788

WASHER,10.32mm ID x 22.23mm OD x 3.5mm Thk

Hardened, 3/8"

3шт.

492-11031

LOCK WASHER,5/16"

6шт.

232-4146

NUT,3/8"-16, GC

3шт.

425-105

NUT,5/16"-18, G5

6шт.

5

849200

SHEET

End, Includes (2) Ref. 25

1шт.

433-512

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

5шт.

495-11034

WASHER,5/16", SAE

1шт.

492-11031

LOCK WASHER,5/16"

5шт.

425-105

NUT,5/16"-18, G5

5шт.

6

86635496

BACK

Feeder

1шт.

7

849202

PLATE

1шт.

433-512

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

5шт.

492-11031

LOCK WASHER,5/16"

5шт.

425-105

NUT,5/16"-18, G5

5шт.

8

433-512

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

1шт.

9

492-11031

LOCK WASHER,5/16"

1шт.

10

425-105

NUT,5/16"-18, G5

1шт.

11

849211

ANGLE

1шт.

433-512

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

3шт.

492-11031

LOCK WASHER,5/16"

3шт.

425-105

NUT,5/16"-18, G5

3шт.

12

86626088

SHIELD

1шт.

381014

SCREW,Flng, M8 x 16mm

HWH, M8 x 1.25 x 16

4шт.

433-512

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

1шт.

492-11031

LOCK WASHER,5/16"

1шт.

425-105

NUT,5/16"-18, G5

1шт.

13

9604440

SHEET

Rear, Serial Range: -HBJ0044430

1шт.

13

87704750

D PANEL

Rear, Includes (2) Ref. 25, Start Serial: HBJ0044431

1шт.

433-612

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 5

1шт.

492-11031

LOCK WASHER,5/16"

1шт.

425-106

NUT,3/8"-16, Cl 5

1шт.

14

86641490

SUPPORT

Feeder, Rear

1шт.

433-512

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

8шт.

492-11031

LOCK WASHER,5/16"

8шт.

425-105

NUT,5/16"-18, G5

8шт.

15

849197

STEEL PLATE

Feeder Top

1шт.

433-512

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

8шт.

492-11031

LOCK WASHER,5/16"

8шт.

425-105

NUT,5/16"-18, G5

8шт.

16

849199

STEEL PLATE

Top, Feeder

1шт.

433-512

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

5шт.

433-532

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 2", Gr 5

2шт.

492-11031

LOCK WASHER,5/16"

7шт.

425-105

NUT,5/16"-18, G5

7шт.

17

86640902

STOP

Hay

1шт.

413-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

3шт.

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

3шт.

425-104

NUT,1/4"-20, Cl 5

3шт.

18

86640790

CONNECTING LINK

1шт.

19

495-11034

WASHER,5/16", SAE

1шт.

20

88163

COTTER PIN

Heat Treated, 1/8" x 1/2"

1шт.

21

38527

SPRING

1шт.

22

645970

BRACKET

1шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

1шт.

425-106

NUT,3/8"-16, Cl 5

1шт.

23

832-46408

NUT,M8 x 1.25, Cl 8

1шт.

24

86635531

COVER

Track End

1шт.

413-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

2шт.

495-11028

WASHER,1/4", SAE

2шт.

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

2шт.

425-104

NUT,1/4"-20, Cl 5

2шт.

25

86610200

THREADED INSERT,M8 x 1.25

, Start Serial: HBJ0044431

1шт.

Not Illustrated

1шт.
