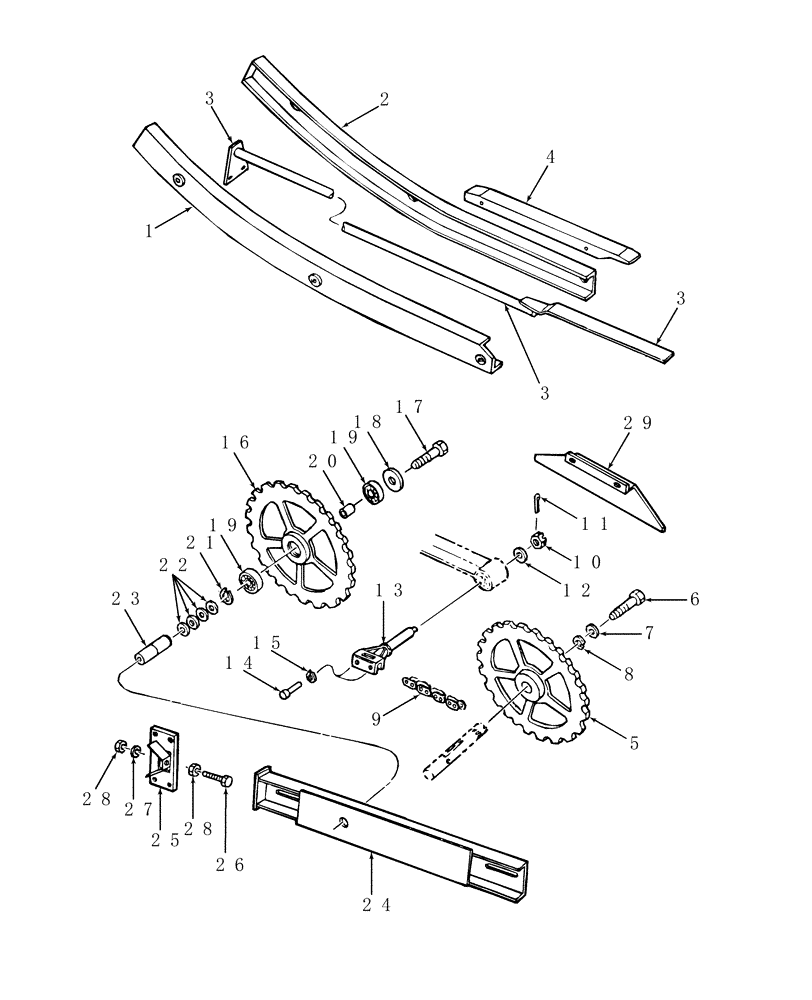

Запчасти Case IH SBX520 (030) - FEEDER DRIVE CHAIN & TRACK, SBX520 (60) - PRODUCT FEEDING

1

86640892

CHAIN GUIDE

CHAIN TRACK Front

1шт.

495-11034

WASHER,5/16", SAE

3шт.

492-11031

LOCK WASHER,5/16"

3шт.

2

86640899

CHAIN GUIDE

CHAIN TRACK Rear

1шт.

88682

CARRIAGE BOLT,Short Nk, 3/8"-16 x 1", Gr 5

3шт.

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

3шт.

425-106

NUT,3/8"-16, Cl 5

3шт.

3

86641489

GUARD

Hayguard

1шт.

433-512

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

2шт.

492-11031

LOCK WASHER,5/16"

2шт.

425-105

NUT,5/16"-18, G5

2шт.

4

646318

GUIDE,Chain, Wood Block

Chain, Wood

1шт.

433-536

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 2 1/4", Gr 5

2шт.

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

5

86640837

SPROCKET

24T

1шт.

6

614-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 8.8, Full Thd

1шт.

7

9801096

WASHER,13.5mm ID x 50.8mm OD x 4.76mm Thk

1шт.

8

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

1шт.

9

637008

CHAIN,CA550, 25 Links x 41.4mm = 1035mm

Feeder, RC #CA550, 25 Pitches

2шт.

40241

LINK,41.4mm Pitch

1шт.

10

87240

SLOTTED NUT,1/2"-13

Slotted

1шт.

11

432-816

COTTER PIN,1/8" x 1"

1шт.

12

495-11053

WASHER,1/2", SAE

1шт.

13

800380

KIT

Chain Connector, Includes Ref. 14 & 15

1шт.

495-11053

WASHER,1/2", SAE

1шт.

87240

SLOTTED NUT,1/2"-13

Slotted

1шт.

432-816

COTTER PIN,1/8" x 1"

1шт.

44536

LEVER

Chain (Shown)

1шт.

14

643361

PIN,7.23mm OD x 49.21mm L

Link

2шт.

15

80643360

SNAP RING,#28, Ext

2шт.

16

86977073

DRIVING SPROCKET

24T

1шт.

17

380425

BOLT,M10 x 20mm

Button Hd, HS, CL 10.9, M 10 x 20

1шт.

18

58225

WASHER,10.32mm ID x 31.8mm OD x 3.45mm Thk

Special, 1-1/4" OD

1шт.

19

7711799

BEARING, ROLLER, CYL,0.9843" ID x 1.8504" OD x 0.4724"

2шт.

20

86640795

SPACER,25.65mm ID x 31.75mm OD x 20.06mm L

1шт.

21

100-11100

SNAP RING,#100, Ext

2шт.

22

27318

WASHER,26mm ID x 51mm OD x 1.5mm Thk

.060" Thick

1шт.

23

9604502

SHAFT

Idler

1шт.

24

9604476

SUPPORT

Shaft & Brace, Includes: Ref. 21 & 23

1шт.

88682

CARRIAGE BOLT,Short Nk, 3/8"-16 x 1", Gr 5

2шт.

145788

WASHER,10.32mm ID x 22.23mm OD x 3.5mm Thk

Hardened, 3/8"

2шт.

232-4146

NUT,3/8"-16, GC

2шт.

25

637020

BRACKET

1шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

4шт.

425-106

NUT,3/8"-16, Cl 5

4шт.

26

113-82

BOLT,Hex, 3/8" - 16 x 3", Gr 5, Full Thd

1шт.

27

285072

WASHER,10.3mm ID x 22.2mm OD x 2.7mm Thk

(3/8")

1шт.

28

425-106

NUT,3/8"-16, Cl 5

2шт.

29

204497

KIT

Chain Connector Build-Up Guard, Includes: Guard, Hardware & Instructions

1шт.

88682

CARRIAGE BOLT,Short Nk, 3/8"-16 x 1", Gr 5

2шт.

435-1828

GROOVED PIN,1/4" x 1 3/4", Type A

2шт.

492-11038

LOCK WASHER,3/8"

2шт.

425-106

NUT,3/8"-16, Cl 5

2шт.

232-4146

NUT,3/8"-16, GC

2шт.
