Запчасти Case IH SBX520 (024) - PICKUP SHAFT & FINGER (60) - PRODUCT FEEDING

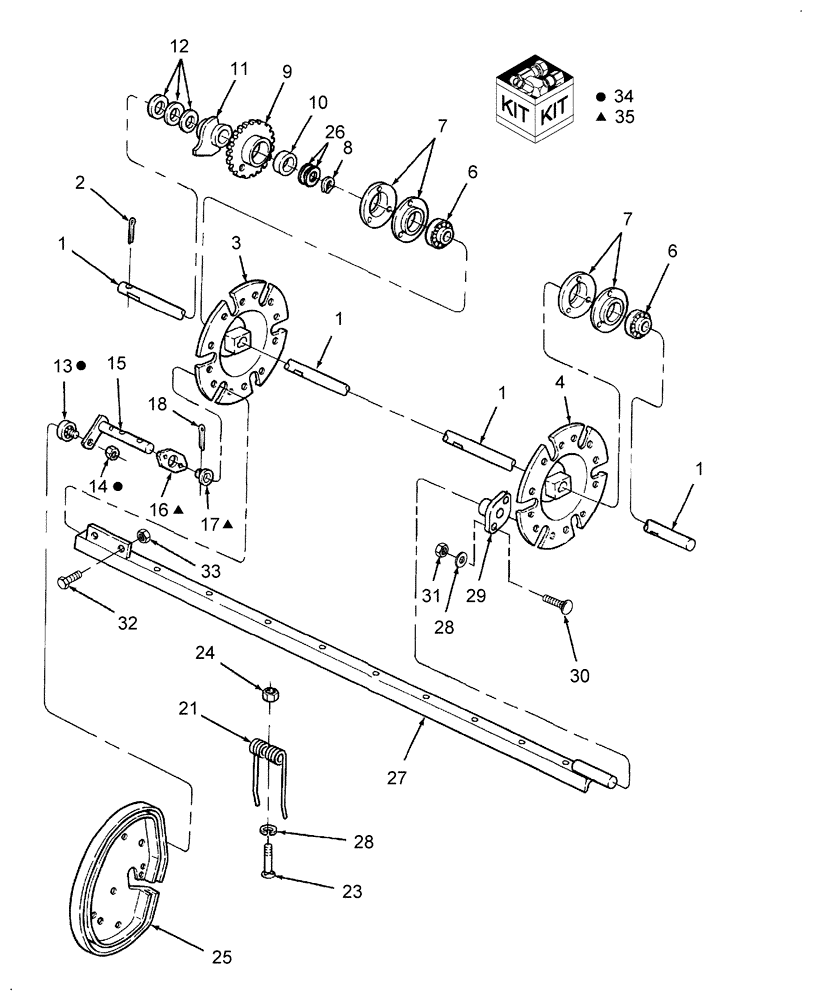

Схема запчастей Case IH SBX520 - (024) - PICKUP SHAFT & FINGER (60) - PRODUCT FEEDING
33
1
1
30
6
1
4
34
21
13
31
10
12
7
28
8
7
6
2
24
17
35
27
25
32
16
14
11
29
28
9
23
18
3
1
15
26

Артикул

Название

Примечание

Количество

1

9801511

DRIVEN SHAFT

Driven Reel, SBX520, SBX530

1шт.

1

9801468

CONTROL SHAFT

Reel, SBX540

1шт.

2

432-1228

COTTER PIN,3/16" x 1 3/4"

1шт.

3

86641553

DISC

Finger, SBX520, Square, 4 Slots, w/ Tabs

1шт.

When Replacement is Required, Ref. 3 & 4 Must be Replaced W/ ASN HBJ0002715 Versions.

1шт.

Prior to P.I.N. HBJ0002715

1шт.

3

87010612

DISC

Finger, SBX520, Square, 4 Slots

1шт.

P.I.N. HBJ0002715 & After

1шт.

3

86642122

DISC

Finger, SBX530, Round, 5 Slots

1шт.

3

86977216

DISC

Finger, SBX540, Round, 6 Slots

1шт.

126-32

WOODRUFF KEY,#21, 1/4" x 1 1/4"

SBX530, SBX540

1шт.

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

1шт.

232-4146

NUT,3/8"-16, GC

1шт.

4

86641551

DISC

Finger, SBX520, Square, 4 Slots

1шт.

When Replacement is Required, Ref. 3 & 4 Must be Replaced W/ ASN HBJ0002715 Versions.

1шт.

Prior to P.I.N. HBJ0002715

1шт.

4

87010610

DISC

Finger, SBX520, Square, 4 Slots

1шт.

P.I.N. HBJ0002715 & After

1шт.

4

86642120

DISC

Finger, SBX530

1шт.

4

86977215

DISC

Finger, SBX540

1шт.

126-32

WOODRUFF KEY,#21, 1/4" x 1 1/4"

SBX530, SBX540

1шт.

232-4146

NUT,3/8"-16, GC

2шт.

413-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

2шт.

6

455959R92

BEARING ASSY,28.57mm ID x 62mm OD x 18mm W

2шт.

557115R11

COLLAR

2шт.

7

662649R1

RETAINER

Flange, Bearing

4шт.

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

9шт.

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

9шт.

8

800-1150

SNAP RING,M50, Ext

1шт.

9

86641546

DRIVING SPROCKET

33T, Includes: Ref. 10

1шт.

10

83963214

NYLON BEARING,50.12mm ID x 56mm OD x 27.75mm L

1шт.

11

86641547

HUB

1шт.

126-32

WOODRUFF KEY,#21, 1/4" x 1 1/4"

1шт.

12

140108

WASHER,31mm ID x 37mm OD x 1mm Thk

Shim, M1

4шт.

13

40714

CAM FOLLOWER,31.8 mm OD x 15.9 mm

Cam Roller, (4) SBX520, (6) SBX530 & SBX540

4шт.

14

232-4646

LOCK NUT,3/8"-24, GC

(4) SBX520, (6) SBX530 & SBX540

4шт.

15

86641591

SHAFT,26.99mm OD x 155mm L

Use w/ Ref. 27

5шт.

16

54695

BEARING HOUSING

RH Side of Pickup

1шт.

433-612

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 5

1шт.

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

1шт.

425-106

NUT,3/8"-16, Cl 5

1шт.

17

54770

BALL BEARING,27.33 mm ID x 47.092 mm OD x 25.4 mm

1шт.

18

136521

COTTER PIN,5.7mm OD x 44.45mm L

Hardened, 1/4" x 1-3/4", SBX520

12шт.

18

136521

COTTER PIN,5.7mm OD x 44.45mm L

Hardened, 1/4" x 1-3/4", SBX530 & SBX540

18шт.

21

86641710

FINGER

Pickup, SBX520

44шт.

21

86641710

FINGER

Pickup, SBX530

66шт.

21

86641710

FINGER

Pickup, SBX540

78шт.

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

252687

WASHER,0.34" ID x 0.75" OD x 0.09" Thk

1шт.

23

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

24

231-4145

NUT,5/16"-18, GB

SBX520

44шт.

24

231-4145

NUT,5/16"-18, GB

SBX530

66шт.

24

231-4145

NUT,5/16"-18, GB

SBX540

78шт.

25

86640846

CAM

1шт.

26

67517

WASHER

1шт.

27

86641592

ANGLE BAR

SBX520

4шт.

27

86641592

ANGLE BAR

SBX530

5шт.

27

86516592

ANGLE BAR

SBX540

6шт.

28

252687

WASHER,0.34" ID x 0.75" OD x 0.09" Thk

1шт.

29

638025

FLANGE

LH, SBX520

4шт.

29

638025

FLANGE

LH, SBX530 & SBX540

6шт.

30

88682

CARRIAGE BOLT,Short Nk, 3/8"-16 x 1", Gr 5

1шт.

31

425-106

NUT,3/8"-16, Cl 5

1шт.

32

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

2шт.

33

280736

NUT,5/16"-18, GC

2шт.

34

87012134

BEARING ASSY

Pickup Cam Bearing, Incl: (2) Ref. 13 & 14

1шт.

35

87012135

BEARING ASSY

Pickup Bearing & Carrier, Incl: (2) Ref. 16 & 17 and Hardware

1шт.
