Запчасти Case IH SBX520 (005) - MAIN FRAME (39) - FRAMES AND BALLASTING

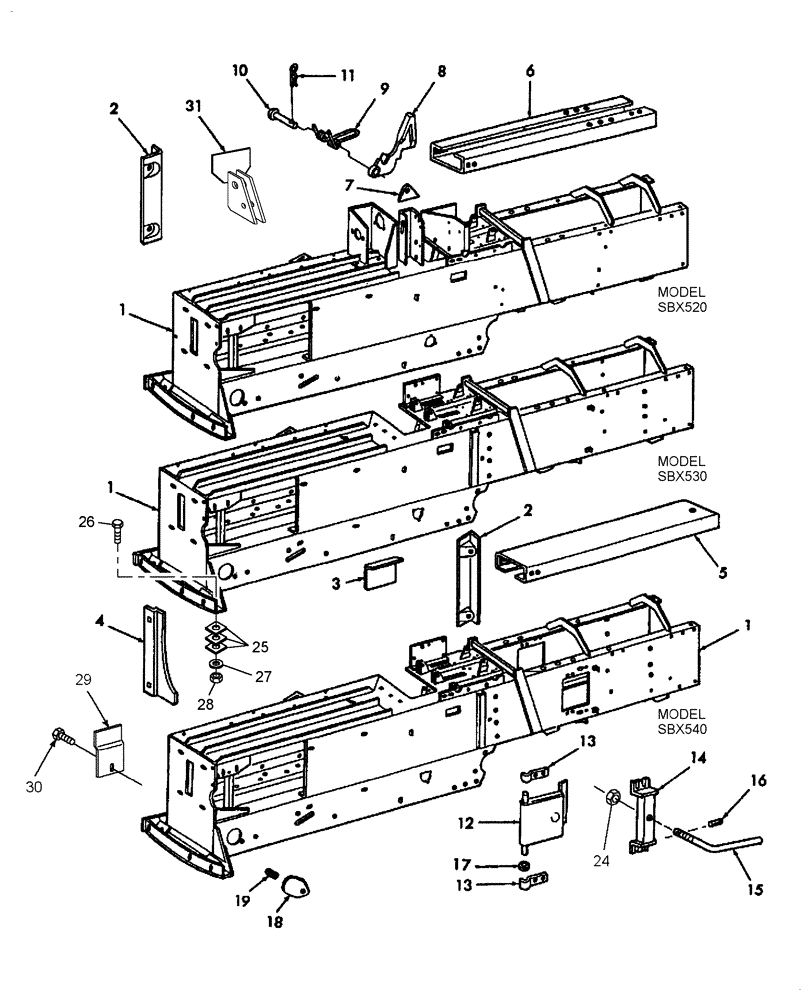

Схема запчастей Case IH SBX520 - (005) - MAIN FRAME (39) - FRAMES AND BALLASTING
5
18
9
1
4
2
31
19
27
10
25
13
12
8
29
1
16
6
28
26
3
30
11
13
17
15
7
2
14
1
24

Артикул

Название

Примечание

Количество

1

86635475

CHAMBER

Bale, SBX520

1шт.

1

86635578

CHAMBER

Bale, SBX530

1шт.

1

86635617

BALE CHAMBER

Bale, SBX540

1шт.

2

86626431

STOP

Hay Side

2шт.

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

1шт.

Used W/ Both Metric & Inch Hardware

1шт.

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

1шт.

832-46410

NUT,M10 x 1.5, Cl 8

1шт.

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

425-106

NUT,3/8"-16, Cl 5

1шт.

3

86640954

COVER

1шт.

4

848897

SHIELD

1шт.

811-8020

CARRIAGE BOLT,Sht Sq Nk, M8 x 1.25 x 20mm, Cl 8.8

2шт.

832-46408

NUT,M8 x 1.25, Cl 8

2шт.

433-512

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

2шт.

425-105

NUT,5/16"-18, G5

2шт.

492-11031

LOCK WASHER,5/16"

2шт.

Used W/ Both Metric & Inch Hardware

1шт.

5

86626073

CHANNEL

Lower Tension Rail, SBX520

1шт.

5

86626069

CHANNEL

Lower Tension Rail, SBX530 & SBX540

1шт.

6

86626071

CHANNEL

Upper Tension Rail, SBX520

1шт.

6

86626067

CHANNEL

Upper Tension Rail, SBX530 & SBX540

1шт.

7

854913

STOP

Plunger Dog

6шт.

120106

BOLT,M8 x 1.25 x 45.45mm, Cl 8.8

6шт.

413-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

6шт.

832-46408

NUT,M8 x 1.25, Cl 8

6шт.

280736

NUT,5/16"-18, GC

6шт.

413-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

6шт.

8

86640942

DOG

Plunger

6шт.

Shown in Underside Position

1шт.

9

86505745

SPRING,Torsion

6шт.

10

771478

PIN,12.7mm OD x 86.77mm L

6шт.

11

216698

COTTER PIN,0.125" OD x 1.75" L

6шт.

12

86630801

DOOR ASSY.

Hay, SBX540

2шт.

13

86977128

BRACKET

Hinge, SBX540

4шт.

811-10030

CARRIAGE BOLT,Sht Sq Nk, M10 x 1.5 x 30mm, Cl 8.8

8шт.

88682

CARRIAGE BOLT,Short Nk, 3/8"-16 x 1", Gr 5

8шт.

825-1410

NUT,M10, Cl 8

8шт.

425-106

NUT,3/8"-16, Cl 5

8шт.

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

8шт.

Used W/ Both Metric & Inch Hardware

1шт.

14

86630799

SUPPORT

SBX540

2шт.

811-10030

CARRIAGE BOLT,Sht Sq Nk, M10 x 1.5 x 30mm, Cl 8.8

8шт.

825-1410

NUT,M10, Cl 8

8шт.

88682

CARRIAGE BOLT,Short Nk, 3/8"-16 x 1", Gr 5

8шт.

425-106

NUT,3/8"-16, Cl 5

8шт.

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

8шт.

Used W/ Both Metric & Inch Hardware

1шт.

15

849347

HANDLE

SBX540

2шт.

16

300865

LOCK PIN,M3 x 20mm OAL, Slotted

2шт.

17

244379

WASHER,13.49mm ID x 19.05mm OD x 2.67mm Thk

2шт.

18

86640862

COVER

1шт.

433-412

CARRIAGE BOLT,Sq Nk, 1/4" - 20 x 3/4", Gr 5

1шт.

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

1шт.

280129

NUT,1/4"-20

1шт.

425-104

NUT,1/4"-20, Cl 5

1шт.

19

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

1шт.

24

100038

NUT,M12 x 1.75, Cl 8

1шт.

25

86547944

CLIP

3шт.

26

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

1шт.

27

86513238

LOCK WASHER,.515” ID x 1.070” OD x .120” TK

Belleville, 1/2"

1шт.

28

425-108

NUT,1/2" - 13, Gr 5

1шт.

29

86626129

SHIELD

1шт.

30

677808

SELF-TAP SCREW,Hex Flng, 1/4" - 20 x 5/8"

HWH, 1/4"-20 x 5/8"

1шт.

31

86618577

BRACKET

Hay Dog

1шт.

Welding Required

1шт.

Выбрано товаров: 66
