Запчасти Case IH SBX520 (004) - AXLE & WHEEL (39) - FRAMES AND BALLASTING

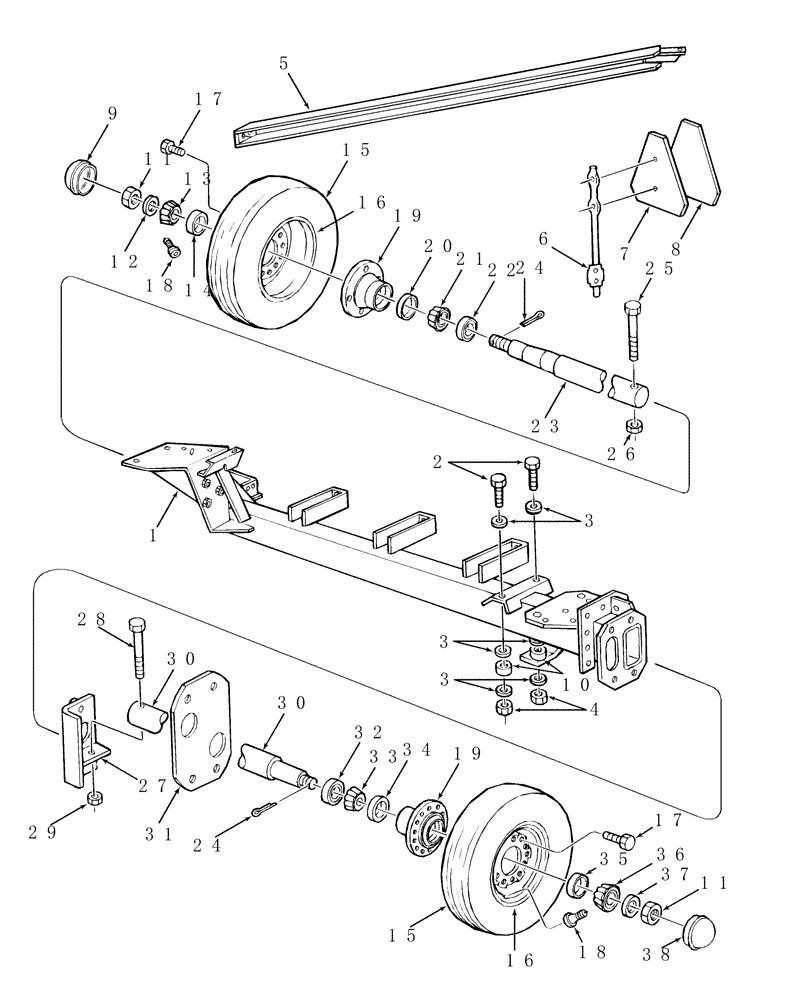

Схема запчастей Case IH SBX520 - (004) - AXLE & WHEEL (39) - FRAMES AND BALLASTING
1
36
8
31
7
19
13
9
11
4
15
18
30
35
24
30
19
28
15
17
32
3
26
3
25
38
10
2
17
12
27
3
14
16
11
37
6
20
24
18
34
23
22
29
16
21
5
33

Артикул

Название

Примечание

Количество

1

86635500

AXLE

SBX520, SBX530

1шт.

1

86635605

AXLE

SBX540

1шт.

814-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 8.8

1шт.

614-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd

2шт.

65319

WASHER,13.1mm ID x 25.4mm OD x 3.68mm Thk

6шт.

832-46412

NUT,M12 x 1.75, Cl 8

3шт.

2

814-10050

BOLT,Hex, M10 x 1.5 x 50mm, Cl 8.8

2шт.

3

285072

WASHER,10.3mm ID x 22.2mm OD x 2.7mm Thk

(3/8")

6шт.

4

832-46410

NUT,M10 x 1.5, Cl 8

2шт.

5

86635505

BRACE

SBX520

1шт.

5

86635554

BRACE

SBX530

1шт.

5

86635607

BRACE

SBX540

1шт.

811-10020

CARRIAGE BOLT,Sht Sq Nk, M10 x 1.5 x 20mm, Cl 8.8

2шт.

811-12030

CARRIAGE BOLT,Sht Sq Nk, M12 x 1.75 x 30mm, Cl 8.8

1шт.

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

2шт.

86513238

LOCK WASHER,.515” ID x 1.070” OD x .120” TK

Belleville, 1/2"

1шт.

825-1410

NUT,M10, Cl 8

2шт.

829-1412

NUT,M12, Cl 10.9

1шт.

6

195036

PLATE

Pole Mount

1шт.

7

86547710

EMBLEM

KIT SMV

1шт.

Slow-Moving Vehicle on Metal Plate, Includes: Ref. 8

1шт.

84821

SCREW,Truss HD, #10 - 24 x 1/2"

2шт.

492-11010

LOCK WASHER,#10

2шт.

225-14110

NUT,#10-24

2шт.

8

86547711

DECAL,SMV

SMV

1шт.

9

249130

HUB CAP

Hub, RH

1шт.

10

86610677

SPACER,10.3mm ID X 19.05mm OD X 14.3mm L

2шт.

11

412106

SLOTTED NUT,M20 x 1.5, Cl 04

2шт.

12

495-11081

WASHER,3/4", SAE

1шт.

13

536056R91

ROLLER BEARING,0.8656" ID x 0.655"

Cone

1шт.

14

574810

BEARING CUP,45.26mm OD x 12.06mm W

1шт.

15

PL

PROCURE LOCALLY

TIRE Rib Tread, 5.00-15, 4-Ply, Standard, RH, SBX520

1шт.

15

PL

PROCURE LOCALLY

TUBE 5.00-15, SBX520

1шт.

15

PL

PROCURE LOCALLY

TIRE Terra Rib, 25 x 7.50-15, 6-Ply, Flotation, RH SBX520, SBX530

1шт.

15

224151

TYRE/TIRE

Rib Implement, 27 x 9.50 - 15, 6-Ply, LH SBX520, RH SBX530, SBX540

1шт.

15

PL

PROCURE LOCALLY

TIRE Rib Tread, 6.40-15, 6-Ply, Standard, LH, SBX520

1шт.

15

86564435

TYRE/TIRE

Terra Rib, 31 x 13.50-15, 8-Ply, Flotation, LH, SBX530, SBX540

1шт.

16

86622669

WHEEL

Disc, 4 Bolt, Standard, RH, SBX520

1шт.

16

86621299

WHEEL

6 Bolt, 27 x 9.50-15 Flotation, RH, SBX530, SBX540 W/ 224151 Tire

1шт.

16

86622671

WHEEL

Disc, 6 Bolt, Flotation, LH, SBX520

1шт.

16

86621298

WHEEL

Disc, 6 Bolt, for 31x 13.50-15, Flotation, LH, SBX530, SBX540

1шт.

17

32383

BOLT,Wheel, G5, 1/2"-20 x 13/16"

Wheel, G5, 1/2"-20 x 13/16"

12шт.

18

387897R91

VALVE STEM

1шт.

18

86626246

VALVE STEM

Tubeless Tire, LH, SBX530

1шт.

19

86978502

HUB

Wheel, RH, SBX520

1шт.

19

86977071

HUB

Wheel, LH, SBX520

1шт.

19

86631051

HUB

Wheel, RH, SBX530, SBX540

1шт.

19

86836910

HUB

Wheel, LH, SBX530, SBX540

1шт.

20

651817R1

BEARING CUP

1шт.

21

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

1шт.

22

663004R91

OIL SEAL

Oil

1шт.

23

86977228

SPINDLE

RH

1шт.

24

432-1020

COTTER PIN,5/32" x 1 1/4"

2шт.

25

814-16080

BOLT,Hex, M16 x 2 x 80mm, Cl 8.8

1шт.

26

832-46416

NUT,M16 x 2, Cl 8

1шт.

27

86629997

ANGLE

SBX520

1шт.

814-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 8.8

3шт.

65319

WASHER,13.1mm ID x 25.4mm OD x 3.68mm Thk

SBX520

2шт.

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

SBX520

2шт.

829-1412

NUT,M12, Cl 10.9

SBX520

2шт.

27

86630431

ANGLE

SBX530, SBX540

1шт.

814-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 8.8

2шт.

65319

WASHER,13.1mm ID x 25.4mm OD x 3.68mm Thk

SBX530, SBX540

4шт.

832-46412

NUT,M12 x 1.75, Cl 8

SBX530, SBX540

2шт.

28

827-12080

BOLT,Hex, M12 x 1.75 x 80mm, Cl 10.9

1шт.

29

832-46412

NUT,M12 x 1.75, Cl 8

1шт.

30

9604345

SPINDLE

SBX520

1шт.

30

86977195

SPINDLE

SBX530, SBX540

1шт.

31

86629995

PLATE

Spindle

1шт.

614-16050

BOLT,Hex, M16 x 2 x 50mm, Cl 8.8, Full Thd

4шт.

781316

WASHER,16.66mm ID x 28.45mm OD x 3.43mm Thk

Hardened

8шт.

832-46416

NUT,M16 x 2, Cl 8

4шт.

32

100412

SEAL,44.45mm ID x 69.19mm OD x 10.72mm Thk

1шт.

33

36057

BEARING CONE,38.11mm ID x 19.05mm W

1-1/2" ID

2шт.

Inner & Outer Bearings on SBX530/540, Inner Only on SBX520

1шт.

34

453012R1

BEARING CUP

2шт.

Inner & Outer Bearings on SBX530/540, Inner Only on SBX520

1шт.

35

618024R1

BEARING CUP,65.113mm OD x 13.97mm W

Outer, SBX520

1шт.

36

618023R91

BEARING ASSY,34.93mm ID x 18.2mm W

Outer, SBX520

1шт.

37

495-21081

WASHER,3/4"

1шт.

38

249127

HUB CAP

LH

1шт.

87298555

KIT

Wheel Bearing Kit / Ship Direct Option

1шт.

Выбрано товаров: 82
