Запчасти Case IH SBX520 (003[1]) - JACK, PRIOR TO P.I.N. HBJ000227 (SBX520), HBJ0002923 (SBX530), HBJ0003193 (SBX540) (39) - FRAMES AND BALLASTING

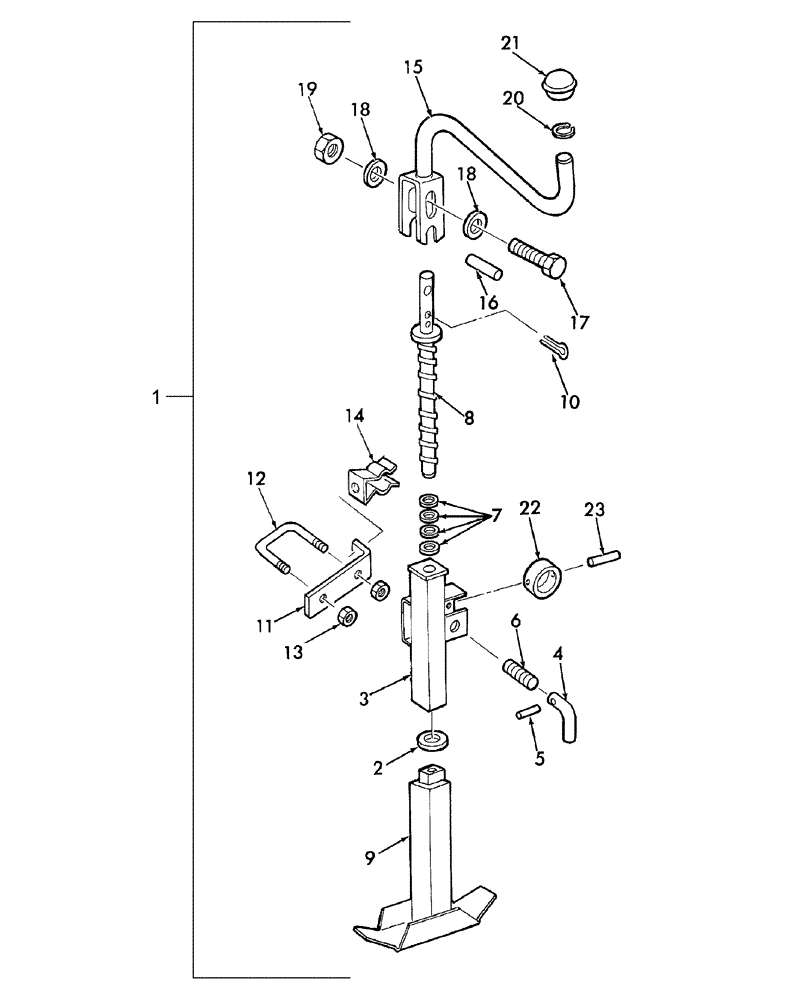

Схема запчастей Case IH SBX520 - (003[1]) - JACK, PRIOR TO P.I.N. HBJ000227 (SBX520), HBJ0002923 (SBX530), HBJ0003193 (SBX540) (39) - FRAMES AND BALLASTING
5
20
12
17
4
7
18
11
18
6
8
1
19
3
2
23
13
16
21
22
10
9
15
14

Артикул

Название

Примечание

Количество

1

86626026

JACK ASSY.

Includes: Ref. 2 - 21

1шт.

Prior to P.I.N. HBJ000227 (SBX520), HBJ0002923 (SBX530), HBJ0003193 (SBX540)

1шт.

2

50600

WASHER,22mm ID x 38mm OD x 1.5mm Thk

Thrust, Nylon, M20

1шт.

3

86640804

BODY

1шт.

219-87

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

4

86611330

PIN,16.56mm OD

Jack

1шт.

5

38-1816

LOCK PIN,1/8" x 1", Slotted

1шт.

6

26538

SPRING

1шт.

7

80011438

WASHER,19.45mm ID x 34.9mm OD x 2.59mm Thk

3/4" x .135" Thk.

4шт.

8

713847

JACK SCREW

Jack

1шт.

9

86978503

TUBE

Inside

1шт.

10

32-1220

COTTER PIN,3/16" x 1 1/4"

1шт.

11

86640854

BRACKET

1шт.

12

86640852

U-BOLT

G2, 1/4"-20 x 2-1/2"

1шт.

13

280129

NUT,1/4"-20

2шт.

14

86631407

SPRING CLIP

1шт.

413-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

1шт.

131-646

SPRING NUT,Tinn, U, 1/4"-20

1шт.

15

86640844

CRANKSHAFT

1шт.

16

38-11624

LOCK PIN,1/4" x 1 1/2", Slotted

1шт.

17

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

18

38-11624

LOCK PIN,1/4" x 1 1/2", Slotted

2шт.

19

232-4146

NUT,3/8"-16, GC

1шт.

20

321935C1

SNAP RING,#62, Ext

1шт.

21

129344

KNOB

1шт.

22

128542

COLLAR

1шт.

23

435-11040

GROOVED PIN,5/16" x 2 1/2", Type A

1шт.

Выбрано товаров: 27
