Запчасти Case IH SBX520 (020) - GEARBOX, MAIN DRIVE (31) - IMPLEMENT POWER TAKE OFF

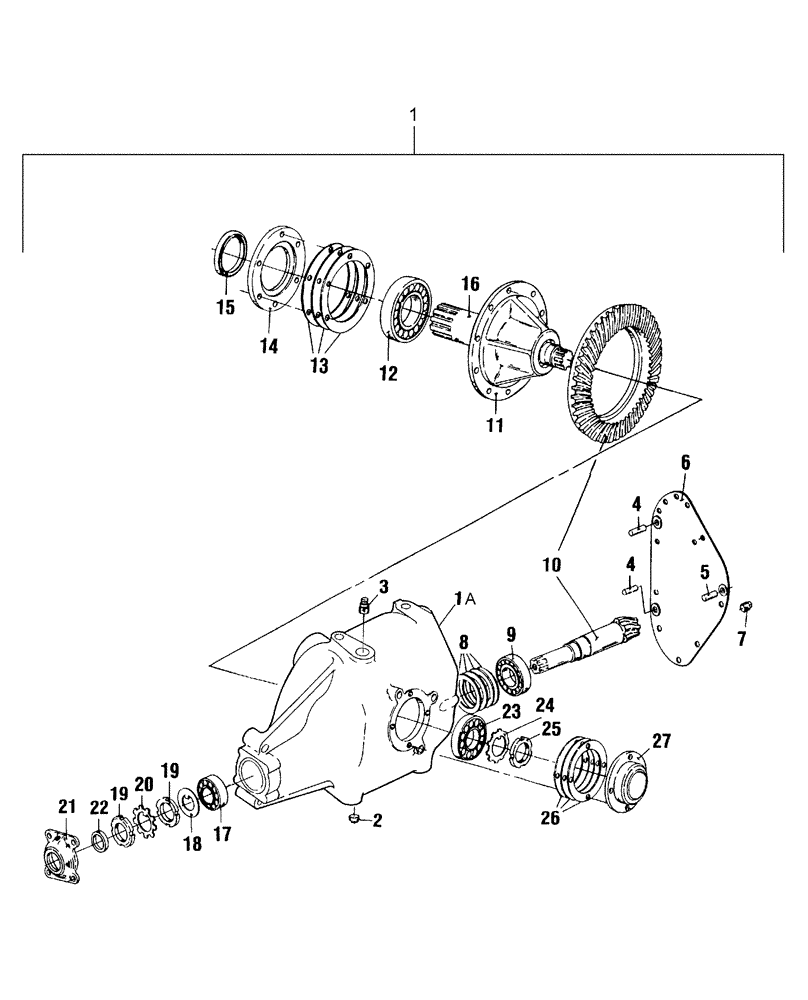

Схема запчастей Case IH SBX520 - (020) - GEARBOX, MAIN DRIVE (31) - IMPLEMENT POWER TAKE OFF
21
2
1
25
23
24
12
4
10
27
5
8
16
15
4
11
6
3
9
14
20
18
26
17
7
13
19
1a
22
19

Артикул

Название

Примечание

Количество

1

86635535

GEARBOX

SBX520

1шт.

1

86635580

GEARBOX

SBX530, SBX540

1шт.

1

86635579R

REMAN-GEARBOX

SBX530, SBX540, Both (12/01-8/08), Reman for New PN 86635580

1шт.

1

86635579C

CORE-GEARBOX

Return Number

1шт.

1a

NSS

NOT SOLD SEPARAT

HOUSING Gearbox, SBX520

1шт.

86528280

1шт.

1a

NSS

NOT SOLD SEPARAT

HOUSING Gearbox, SBX530, SBX540

1шт.

86518247

1шт.

2

217-517

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

1шт.

3

9821757

PLUG

Pipe

1шт.

4

378398

PIN

10mm x 40mm

2шт.

5

378399

DOWEL,M12 x 40

1шт.

6

449785

COVER

1шт.

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

12шт.

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

12шт.

7

86539484

PIPE PLUG,Sq Hd, 1/8"-27, NTPF

1шт.

8

38034

SCREW,.002" Thk

SBX520

1шт.

8

38035

SHIM,.005" Thk

SBX520

1шт.

8

38036

SHIM,.007" Thk

SBX520

1шт.

8

38037

SHIM,.010" Thk

SBX520

1шт.

8

222554

SHIM,.005" Thk

1шт.

8

222555

SHIM,.003" Thk

1шт.

9

86529553

BEARING ASSY,48.41mm ID x 95.28mm OD x 30.37mm W

Tapered, Half Tolerance, SBX520

1шт.

9

86529552

TAPERED BEARING,50.8mm ID x 111.25mm OD x 30.16mm W

Tapered, Half Tolerance, SBX530, SBX540

1шт.

10

9827515

GEAR SET

Ring & Pinion, SBX520

1шт.

10

9806493

GEAR SET

Ring & Pinion, SBX530, SBX540

1шт.

614-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 8.8, Full Thd

10шт.

80679

LOCK WASHER,1/20.507 CST ZND

10шт.

11

56541

HUB

Ring Gear, SBX520

1шт.

11

188805

HUB

Ring Gear, SBX530, SBX540

1шт.

12

64373H

ROLLER BEARING,82.56mm ID x 30.26mm W

1шт.

13

29814

SHIM,0.076mm Thk

(.003")

1шт.

13

29815

SHIM,0.127mm Thk

(.005")

1шт.

13

29813

SHIM,0.178mm Thk

(.007")

1шт.

14

86977043

RETAINER

Bearing

1шт.

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

6шт.

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

6шт.

15

37705

OIL SEAL,82.55mm ID x 108.13mm OD x 8.41mm Thk

1шт.

16

848925

CRANKSHAFT

1шт.

17

37734

BEARING ASSY,44.98mm ID x 82.93mm OD x 25.4mm W

Tapered

1шт.

18

54167

WASHER

Keyed

1шт.

19

9615771

BEARING LOCK NUT,44.026 mm ID x 65 mm OD

2шт.

20

58153

BEARING WASHER,45.52mm ID x 70.2mm OD x 1.8mm Thk

1шт.

21

86629504

CAP COVER

1шт.

219-87

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

4шт.

22

37707

OIL SEAL,41.27mm ID x 54.13mm OD x 6.91mm Thk

1шт.

23

37436

TAPERED BEARING,55.58mm ID x 96.84mm OD x 26.26mm W

1шт.

24

37426

LOCK WASHER,Bearing, W-11

1шт.

25

9615770

BEARING LOCK NUT,55 mm ID x 75.4 mm OD x 10.85 mm

M55 x 1.5, Bearing

1шт.

26

38030

SHIM,.003" Thk

1шт.

26

38031

SHIM,.005" Thk

1шт.

26

38032

SHIM,.007" Thk

1шт.

27

799031

BEARING ASSY,95 mm ID x 146 mm

1шт.

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

4шт.

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

4шт.

Выбрано товаров: 57
