Запчасти Case IH SBX520 (019) - GEARBOX & FLYWHEEL (31) - IMPLEMENT POWER TAKE OFF

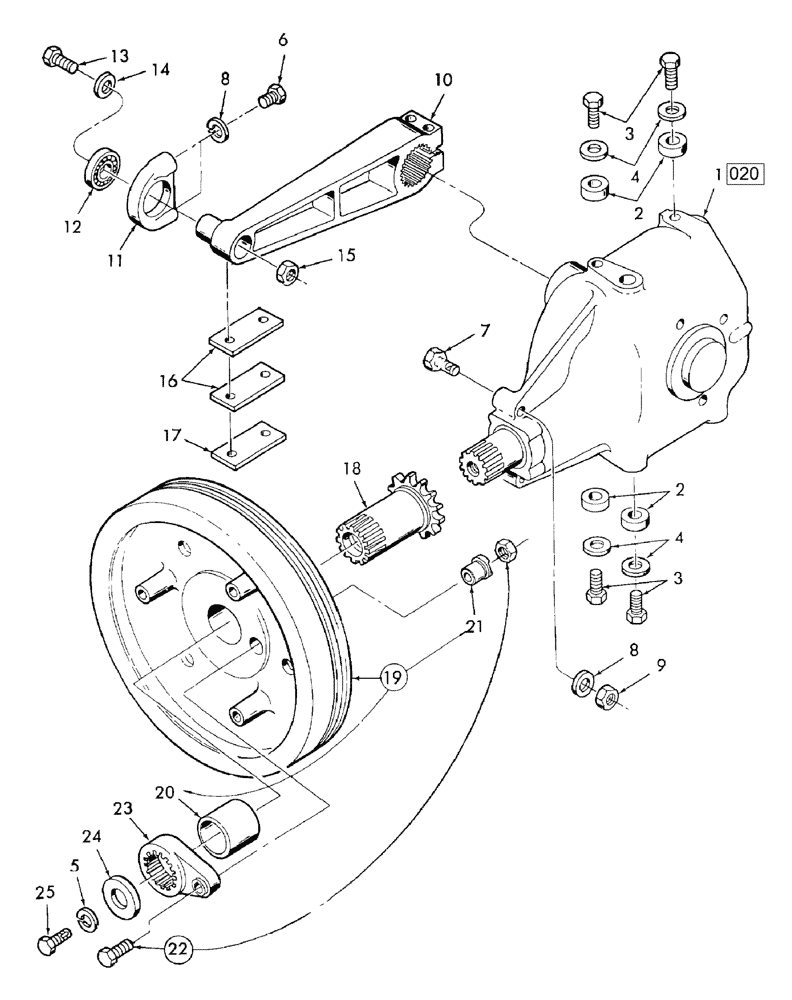

Схема запчастей Case IH SBX520 - (019) - GEARBOX & FLYWHEEL (31) - IMPLEMENT POWER TAKE OFF
020

Артикул

Название

Примечание

Количество

1

86635535

GEARBOX

Main Drive, SBX520, Refer to Fig. 020

1шт.

1

86635580

GEARBOX

Main Drive, SBX530 & SBX540, Refer to Fig. 020

1шт.

1

86635579R

REMAN-GEARBOX

SBX530, SBX540, Both (12/01-8/08), Reman for New PN 86635580

1шт.

1

86635579C

CORE-GEARBOX

Return Number

1шт.

2

86640836

SPACER

21/32" ID x 1-1/2" OD x 3/4" Thick

4шт.

3

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

4шт.

4

86516680

WASHER

41/64" ID x 1-1/2" OD x .107" Thick

4шт.

5

130358

WASHER,16.28mm ID x 38.35mm OD x 4.11mm Thk

Hardened, 5/8"

1шт.

6

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

2шт.

7

413-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

2шт.

8

86513238

LOCK WASHER,.515” ID x 1.070” OD x .120” TK

Belleville, 1/2"

4шт.

9

425-108

NUT,1/2" - 13, Gr 5

2шт.

10

86640881

CRANKSHAFT

SBX520

1шт.

413-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

2шт.

140048

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 2.8mm Thk

2шт.

425-1010

NUT,5/8"-11, G5

2шт.

10

86640880

LINK CONROD

SBX530, SBX540

1шт.

413-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

2шт.

140048

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 2.8mm Thk

2шт.

425-1010

NUT,5/8"-11, G5

2шт.

11

86525589

BEARING ASSY,36.52mm ID

SBX520, Includes: Ref. 12

1шт.

Bearing & Housing are Select-Fit. Components are N.S.S.

1шт.

11

86525588

BEARING ASSY,44.44mm ID

SBX530 & SBX540, Includes: Ref. 12

1шт.

Bearing & Housing are Select-Fit. Components are N.S.S.

1шт.

12

NSS

NOT SOLD SEPARAT

BEARING, SBX520, Incl in 11

1шт.

Bearing & Housing are Select-Fit. Components are N.S.S.

1шт.

12

NSS

NOT SOLD SEPARAT

BEARING, SBX530, SBX540, Incl in 11

1шт.

Bearing & Housing are Select-Fit. Components are N.S.S.

1шт.

13

413-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

1шт.

14

29684

WASHER,13.5mm ID x 50.8mm OD x 5.52mm Thk

17/32" ID x 2" OD x 3/16" Thk

1шт.

14

86629511

WASHER,13.49mm ID x 63.5mm OD x 6.35mm Thk

17/32" ID x 2-1/2" OD x 1/4" Thick, SBX530, SBX540

1шт.

15

232-4148

NUT,1/2"-13, GC

1шт.

16

286948

CUSHION

Tire Carcass

2шт.

17

286947

PLATE

Face, Cushion

1шт.

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

2шт.

232-4146

NUT,3/8"-16, GC

2шт.

18

86640891

SPROCKET

& Hub, 13 Teeth

1шт.

19

86626120

FLYWHEEL

1 Belt Groove, SBX520, Includes: Ref. 20 & 21

1шт.

19

86626116

FLYWHEEL

1 Belt Groove, SBX530, SBX540, Includes: Ref. 20 & 21

1шт.

219-87

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

20

636420

DRIVE BUSHING,57.15mm ID x 60.49mm OD x 76mm L

1шт.

21

9604539

SLEEVE

Shear Bolt, SBX520

1шт.

21

9604553

SLEEVE

Shear Bolt, SBX530, SBX540

1шт.

22

633169

BOLT AND NUT

SBX520

1шт.

22

9806603

SHEAR BOLT,M10-1.5 x 62mm L

& Nut, SBX530, SBX540

1шт.

23

86977125

HUB

Shear Bolt, SBX520

1шт.

23

848659

HUB

Shear Bolt, SBX530, SBX540

1шт.

24

636422

WASHER,16.66mm ID x 69.85mm OD

21/32" ID x 2-3/4" OD x 3/8" Thick

1шт.

25

848780

BOLT

CL 8.8, Self-Locking, M16 x 2 x 40

1шт.

Выбрано товаров: 49
