Запчасти Case IH SBX520 (015) - POWER TAKE OFF SLIP CLUTCH, SBX520 (31) - IMPLEMENT POWER TAKE OFF

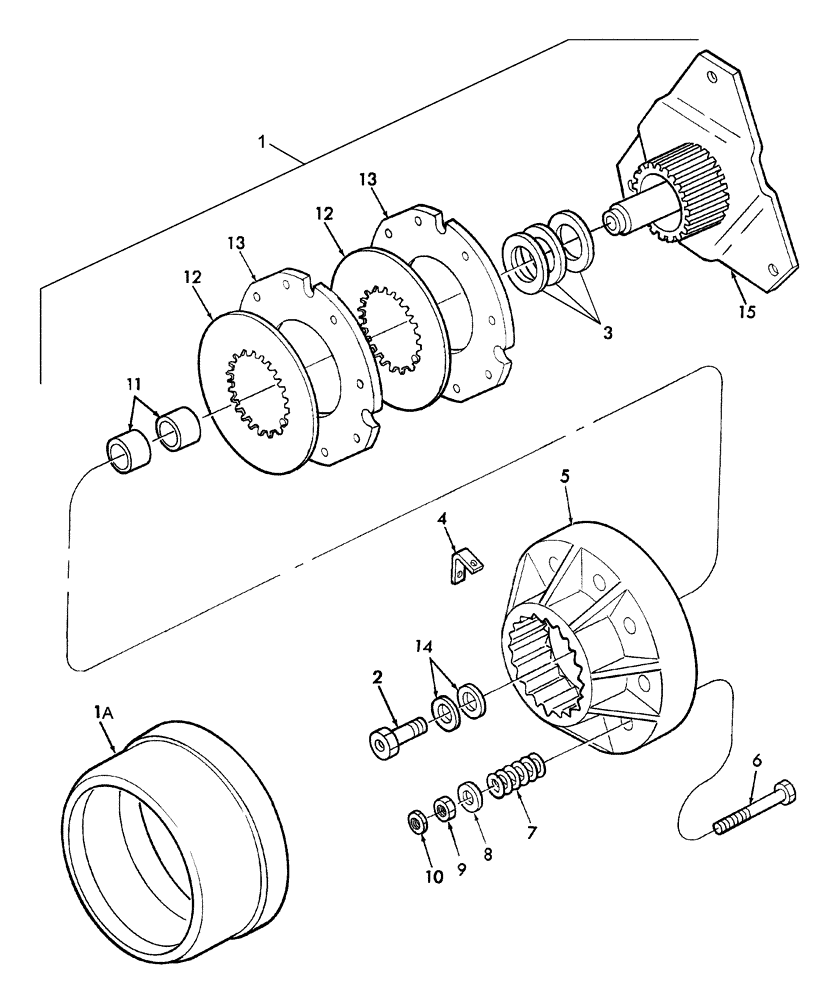

Схема запчастей Case IH SBX520 - (015) - POWER TAKE OFF SLIP CLUTCH, SBX520 (31) - IMPLEMENT POWER TAKE OFF
12
14
15
2
2
1
5
3
7
10
6
4
9
1a
10
8
5
13
14
6
12
3
9
8
7
11
15
1a
13
17

Артикул

Название

Примечание

Количество

1

86626094

CLUTCH

PTO

1шт.

1a

86626065

SHIELD

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

3шт.

2

221481

BOLT,Hex, 1/4" - 28 x 1-3/4", Gr 5

HH, Drilled, G5, 1/2"-13 x 1-3/4"

1шт.

219-90

LUBE NIPPLE,45 Degree Elbow, 1/4" -28 NPTF

1шт.

3

189423

SHIM,.030" Thk

2шт.

4

645650

BRACKET

3шт.

614-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

3шт.

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

3шт.

825-1406

NUT,M6, Cl 8

3шт.

5

86640861

HOUSING

Includes: Ref. 11

1шт.

6

814-10120

BOLT,Hex, M10 x 1.5 x 120mm, Cl 8.8

CRS

8шт.

7

86836510

SPRING

8шт.

8

34187

WASHER

Hardened, 3/8"

8шт.

9

825-1410

NUT,M10, Cl 8

8шт.

10

829-4410

THIN NUT,Thin, M10 x 1.5, Cl 05

8шт.

11

184317

BUSHING,34.88mm ID x 38.13mm OD x 33.3mm L

1шт.

12

261798

CLUTCH PLATE,101.6mm ID x 174.6mm OD x 7.11mm Thk

Friction

2шт.

13

258425

CLUTCH PLATE

2шт.

14

58102

WASHER

3шт.

15

86977224

CLUTCH

1шт.

814-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8

3шт.

285072

WASHER,10.3mm ID x 22.2mm OD x 2.7mm Thk

(3/8")

3шт.

Выбрано товаров: 23
