Запчасти Case IH SBX520 (013) - POWER TAKE OFF, REAR, SBX520 (31) - IMPLEMENT POWER TAKE OFF

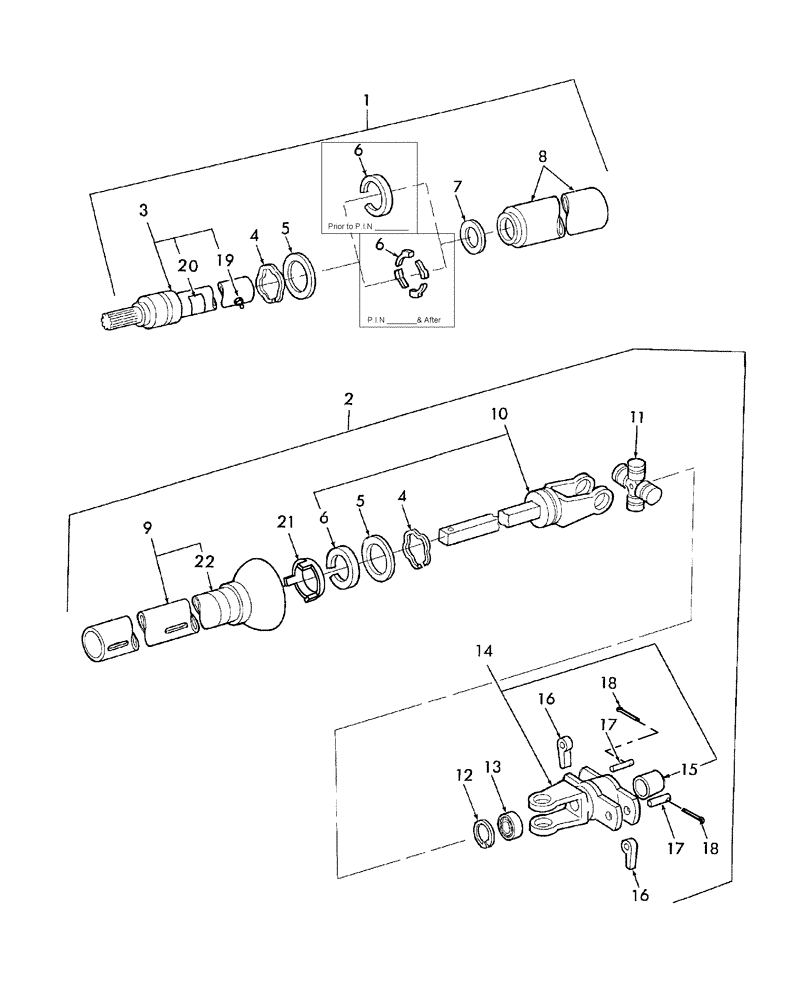

Схема запчастей Case IH SBX520 - (013) - POWER TAKE OFF, REAR, SBX520 (31) - IMPLEMENT POWER TAKE OFF
4
3
8
5
18
6
19
10
2
5
16
22
11
20
13
6
17
14
18
7
6
9
16
1
4
21
12
15
17

Артикул

Название

Примечание

Количество

1

86629484

INNER SHIELD

Metal Shield

1шт.

Prior to P.I.N. HBJ0043569

1шт.

1

87045659

HALF SHAFT

Plastic Shield

1шт.

P.I.N. HBJ0043570 & After

1шт.

2

86629485

PTO

Shaft, Metal Shield

1шт.

Prior to P.I.N. HBJ0043569

1шт.

2

87045660

PTO

Plastic Shield

1шт.

P.I.N. HBJ0043570 & After

1шт.

3

859335

TUBE,2.25" OD x 41.00" L

Inner

1шт.

4

56760

SNAP RING

2шт.

Prior to P.I.N. HBJ0043569

1шт.

5

56801

THRUST WASHER

2шт.

Prior to P.I.N. HBJ0043569

1шт.

6

579113

BUSHING,2.082" ID x 2.804" OD x 0.375"

2шт.

Prior to P.I.N. HBJ0043569

1шт.

6

579113

BUSHING,2.082" ID x 2.804" OD x 0.375"

3шт.

P.I.N. HBJ0043570 & After

1шт.

7

754317

NYLON BEARING

Bearing

1шт.

Prior to P.I.N. HBJ0043569

1шт.

7

764201

SEAL,50.93mm ID x 58.19mm OD x 6.35mm Thk

1шт.

P.I.N. HBJ0043570 & After

1шт.

8

228147

OUTER SHIELD

Metal Shield

1шт.

Prior to P.I.N. HBJ0043569

1шт.

8

87048215

OUTER SHIELD

Plastic Shield

1шт.

P.I.N. HBJ0043570 & After

1шт.

9

86977074

SHIELD

Metal Shield

1шт.

Prior to P.I.N. HBJ0043569

1шт.

9

87048216

SHIELD

Plastic Shield

1шт.

P.I.N. HBJ0043570 & After

1шт.

10

859333

PTO SHAFT

Yoke

1шт.

11

29214

BEARING ASSY

1шт.

12

376219R1

SNAP RING,1.653, Int, #165

1шт.

13

44680

BALL BEARING,20mm ID x 42mm OD x 12mm W

1шт.

14

261342

YOKE

1шт.

15

184317

BUSHING,34.88mm ID x 38.13mm OD x 33.3mm L

1шт.

16

86629486

DOG

Clutch

2шт.

17

46789

PIN,12.7mm OD x 41.27mm L

2шт.

18

432-828

COTTER PIN,1/8" x 1 3/4"

2шт.

19

219-87

LUBE NIPPLE,1/4" - 28 NPTF

2шт.

20

849472

DANGER DECAL

2шт.

Prior to P.I.N. HBJ0043569

1шт.

20

849472

DANGER DECAL

1шт.

21

87048274

BEARING COVER

1шт.

P.I.N. HBJ0043570 & After

1шт.

22

849471

DANGER DECAL

1шт.

Выбрано товаров: 45
