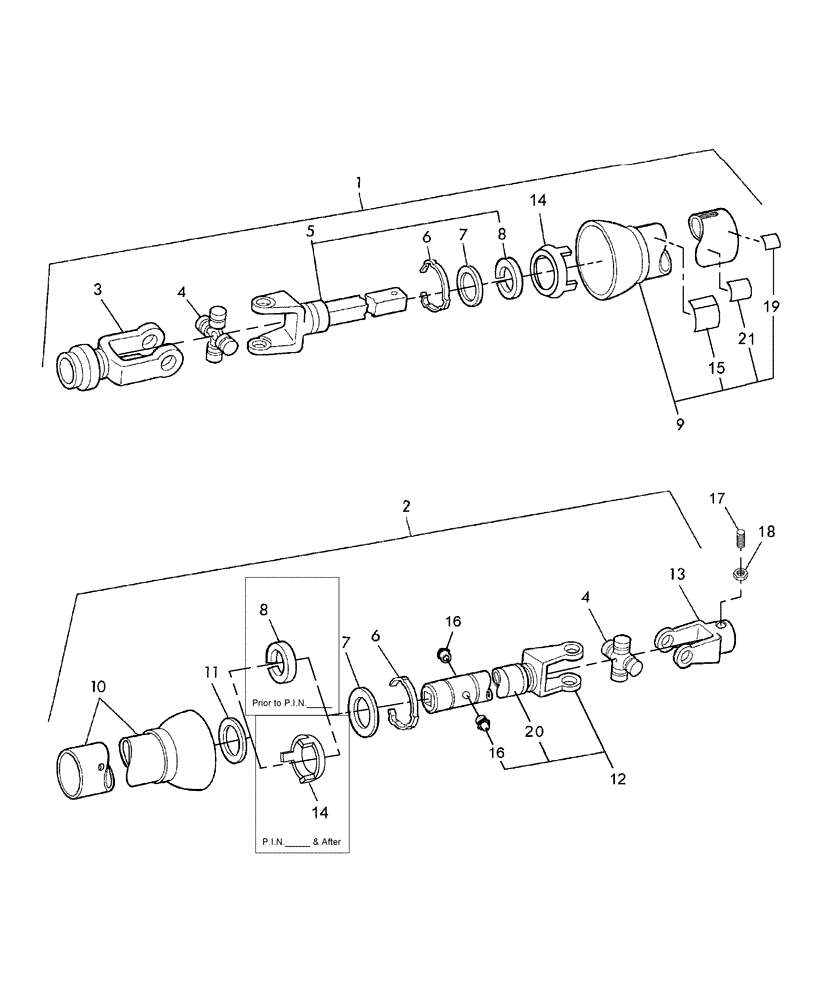

Запчасти Case IH SBX520 (012) - POWER TAKE OFF, FRONT, SBX520 (31) - IMPLEMENT POWER TAKE OFF

1

856702

FRONT PTO ASSY

Shaft, Metal Shield

1шт.

Prior to P.I.N. HBJ0043569

1шт.

1

87045656

FRONT PTO ASSY

Shaft, Plastic Shield

1шт.

P.I.N. HBJ0043570 & After

1шт.

2

859332

INNER SHIELD,14.75" L

Metal, W/Yoke & Tube Assy

1шт.

Prior to P.I.N. HBJ0043569

1шт.

2

87045657

REAR PTO ASSY

Tube, Plastic Shield

1шт.

3

855141

YOKE

Slide Collar

1шт.

4

29214

BEARING ASSY

2шт.

5

857305

PTO SHAFT

1шт.

6

56760

SNAP RING

2шт.

Prior to P.I.N. HBJ0043569

1шт.

7

56801

THRUST WASHER

2шт.

Prior to P.I.N. HBJ0043569

1шт.

8

579113

BUSHING,2.082" ID x 2.804" OD x 0.375"

2шт.

Prior to P.I.N. HBJ0043569

1шт.

8

579113

BUSHING,2.082" ID x 2.804" OD x 0.375"

1шт.

P.I.N. HBJ0043570 & After

1шт.

9

228150

OUTER SHIELD

Metal Shield

1шт.

Prior to P.I.N. HBJ_______

1шт.

9

87048213

OUTER SHIELD

Plastic Shield

1шт.

10

228154

INNER SHIELD

Metal Shield

1шт.

Prior to P.I.N. HBJ0043569

1шт.

10

87048214

INNER SHIELD

Plastic Shield

1шт.

P.I.N. HBJ0043570 & After

1шт.

11

754317

NYLON BEARING

Bearing, Support

1шт.

Prior to P.I.N. HBJ0043569

1шт.

11

87048275

BEARING COVER

1шт.

P.I.N. HBJ0043570 & After

1шт.

12

859331

YOKE,14.75" L

Yoke & Tube, Includes: Ref. 8, 16 & (2) 17

1шт.

13

29212

YOKE

1шт.

14

87048274

BEARING COVER

Bearing

2шт.

P.I.N. HBJ0043570 & After

1шт.

15

849471

DANGER DECAL

English

1шт.

15

849482

DANGER DECAL

French

1шт.

16

219-87

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

17

763883

SET SCREW,1/2" - 20 x 1-1/4"

HS, Self-Locking, Cone Pt, 1/2"-20 x 1-1/4"

1шт.

18

425-158

JAM NUT,Jam, 1/2"-20, G5

1шт.

19

165109

DECAL

Lube Fitting

1шт.

20

849472

DANGER DECAL

English

1шт.

20

849483

DANGER DECAL

French

1шт.

21

87041061

WARNING DECAL

English

1шт.

21

87042013

DECAL

WARNING, French

1шт.
