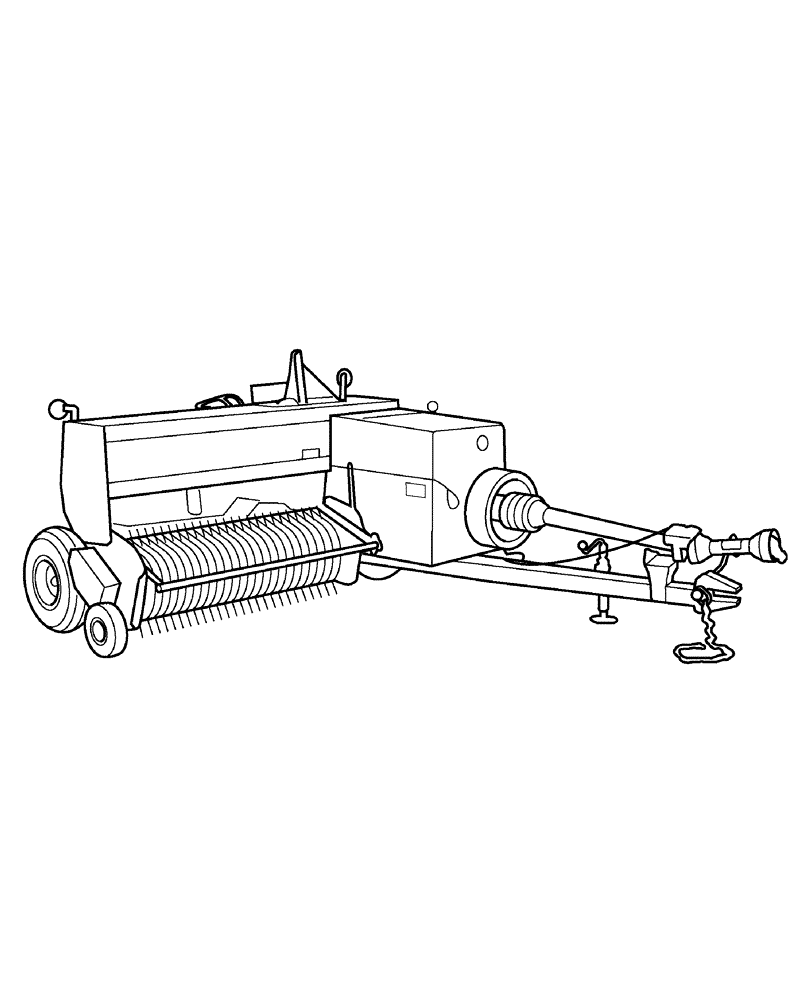

Запчасти Case IH SBX520 (PARTS) - DEALER PARTS STOCKING LIST FOR 5 MACHINES (05) - SERVICE & MAINTENANCE
№
Артикул
Название
Примечание
Количество
18
SPRING
1шт.
146
ROLLER,25.4mm OD x 12.7mm L
Knife Arm
4шт.
36800
ROLLER BEARING
Cam
1шт.
37707
OIL SEAL,41.27mm ID x 54.13mm OD x 6.91mm Thk
1шт.
38260
COLLAR
SBX540
2шт.
38766
BALL BEARING,31.75mm ID x 62mm OD x 18mm W
SBX530 & SBX540
2шт.
38767
COLLAR,Lock, 31.9mm ID x 44mm OD 15.9mm Thk
SBX530 & SBX540
2шт.
455102R21
COLLAR
SBX 520
2шт.
40714
CAM FOLLOWER,31.8 mm OD x 15.9 mm
Cam
6шт.
44000
KNIFE
Knife, Wire, SBX540
2шт.
44680
BALL BEARING,20mm ID x 42mm OD x 12mm W
1шт.
557115R11
COLLAR
Locking
2шт.
455959R92
BEARING ASSY,28.57mm ID x 62mm OD x 18mm W
2шт.
46047
BOLT AND NUT
SBX 530
50шт.
46537
ROLLER BEARING,44.44mm ID x 85mm OD x 28.57mm W
SBX530 & SBX540
1шт.
58074
BEVEL PINION
Bevel, Wire
2шт.
58075
WEAR PLATE
Pinion, Wire
4шт.
58076
SHIM,.010" Thk
Plate, Wear, Twister, Wire
4шт.
7711799
BEARING, ROLLER, CYL,0.9843" ID x 1.8504" OD x 0.4724"
SBX 520
1шт.
95644
KIT
Twine Holder, SBX520
2шт.
100412
SEAL,44.45mm ID x 69.19mm OD x 10.72mm Thk
1шт.
128458
NEEDLE
Needle, Wire
2шт.
128619
SEAL KIT
Hydraformatic Bale Tension Pump
1шт.
913774R91
KIT
Bearing & Spider, SBX540
2шт.
128458
NEEDLE
Needle, SBX540
2шт.
134018
ROLLER BEARING,19.05mm ID x 34.92mm OD x 69.85mm W
SBX540
1шт.
87578236
ROLLER BEARING
SBX520 & SBX530
1шт.
165030
FINGER
Feeder, SBX520
2шт.
184317
BUSHING,34.88mm ID x 38.13mm OD x 33.3mm L
SBX520 & SBX530
1шт.
135992C2
BEARING COVER
Nylon, SBX540
4шт.
252178
FINGER
SBX520
4шт.
258425
CLUTCH PLATE
2шт.
261798
CLUTCH PLATE,101.6mm ID x 174.6mm OD x 7.11mm Thk
Friction, SBX520
2шт.
277203
REPAIR KIT
Hydraulic Pump, SBX520
1шт.
380426
SCREW,Flng, M6 x 10mm
Self-Tapping, HWH, M6 x 1 x 10
15шт.
511265
SPROCKET
Idler, 15T
1шт.
536056R91
ROLLER BEARING,0.8656" ID x 0.655"
Cone
1шт.
574810
BEARING CUP,45.26mm OD x 12.06mm W
1шт.
574844
BALL BEARING,25.4mm ID x 52mm OD x 15mm W
SBX540
2шт.
579113
BUSHING,2.082" ID x 2.804" OD x 0.375"
2шт.
612244
GUIDE
4шт.
615073
KNIFE
SBX520, SBX530
4шт.
617975
HOOK
Twister, Wire
2шт.
624955
CAP COVER
SBX520
4шт.
625972
KNIFE,342.9mm L x 76.99mm W x 9.13mm Thk
Plunger
2шт.
626037
BEARING ASSY
SBX520
2шт.
632749
PLATE
Twister, Wire
2шт.
633169
BOLT AND NUT
Flywheel, SBX520
50шт.
645744
SERVICE KIT,Knotter Cam
Gear, SBX520
1шт.
763883
SET SCREW,1/2" - 20 x 1-1/4"
Set
2шт.
768632
IDLER WHEEL,100.84mm OD x 20.32mm W
Nylon, Wire, SBX540
2шт.
771478
PIN,12.7mm OD x 86.77mm L
2шт.
781216
KIT
Bill Hook
2шт.
784746
GROOVED PIN
2шт.
791787
BRAKE SHOE
SBX520 & SBX530
1шт.
791788
BRAKE SHOE
SBX520 & SBX530
1шт.
796734
BILL HOOK
Plastic Twine
2шт.
796738
TONGUE
Bill Hook, Twine
4шт.
854819
BILL HOOK
Sisal Twine
4шт.
861325
BEARING ASSY,0.75" ID x 2.5" OD x 2.25"
Plunger
4шт.
9602910
KNIFE
SBX540
4шт.
9806603
SHEAR BOLT,M10-1.5 x 62mm L
Flywheel, SBX530, SBX540
50шт.
9843711
GROOVED PIN,4.76mm OD x 22.23mm L
Shear Proof
5шт.
86505745
SPRING,Torsion
Plunger Dog
2шт.
86543545
GUIDE
17.5mm ID x 40mm OD
1шт.
86577790
SERVICE KIT
Cam Gear, SBX540
1шт.
86578202
PINION
Knotter, SBX540
1шт.
86578266
SHEAR BOLT,12-24 x 1 1/2"
Knotter
50шт.
86608973
BALE COUNTER
Includes: Spring & (2) #5 Nuts
1шт.
86625663
KIT
Knife Arm, SBX540
5шт.
86629478
WORM GEAR
SBX520
1шт.
86629527
SPRING
SBX520
1шт.
86629763
V-BELT,0.66" W x 82.90" L
1шт.
86635481
GUARD
Pickup
2шт.
86635483
GUARD
Pickup
2шт.
86640785
SPRING,Extension, 31.75mm OD x 120.65mm L
1шт.
86640793
SPRING
1шт.
86640855
GUIDE
SBX540
3шт.
86640939
SUPPORT
Twine Holder, SBX540
2шт.
86640942
DOG
Plunger
4шт.
86641542
NEEDLE
4шт.
86641587
FRAME
Knotter, SBX540
1шт.
86641709
DRIVE PINION
SBX 540
1шт.
86641710
FINGER
Pickup Tine
100шт.
86836510
SPRING
6шт.
86836511
KNOTTER HOOK
2шт.
86977418
KIT
Knife Arm, SBX540
4шт.
86977124
PINION
SBX520
2шт.
86977223
KNOTTER
Knotter, SBX520
1шт.
86977418
KIT
SBX 520/530 Knife Arm
4шт.
Выбрано товаров: 93
