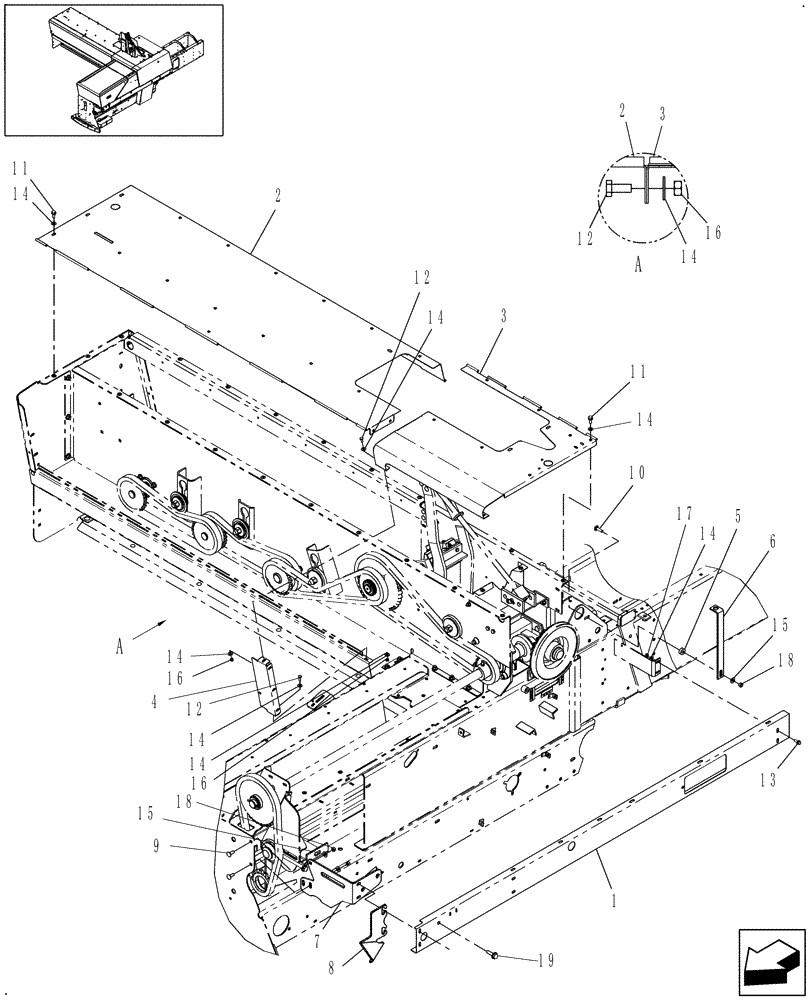

Запчасти Case IH SB551 (90.105.10) - HOUSING, FEEDER TOP (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

87475637

CHANNEL

1шт.

2

87679073

COVER

RH

1шт.

3

87679070

COVER

LH

1шт.

4

87746164

SUPPORT

1шт.

5

607503

SPACER

1шт.

6

693895

SUPPORT

1шт.

7

9848065

SUPPORT

1шт.

8

9829017

GUARD

1шт.

9

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

10

86508749

CARRIAGE BOLT,Short Square Neck, 3/8" - 16 x 1 1/4", Grade 5

1шт.

11

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

25шт.

12

280641

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

4шт.

13

86521552

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

14

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

32шт.

15

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

3шт.

16

7770

NUT,Hex, 1/4 - 20, Cl 5

3шт.

17

9635082

NUT,5/16" - 18, Gr 5

2шт.

18

9628503

NUT,3/8"-16, G5

3шт.

19

86521618

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

1шт.

20

280700

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 1/2", Gr 5, Full Thd

1шт.

21

84134277

STOP

1шт.

22

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

2шт.
