Запчасти Case IH SB551 (90.105.03) - SHIELDS, FRONT (90) - PLATFORM, CAB, BODYWORK AND DECALS

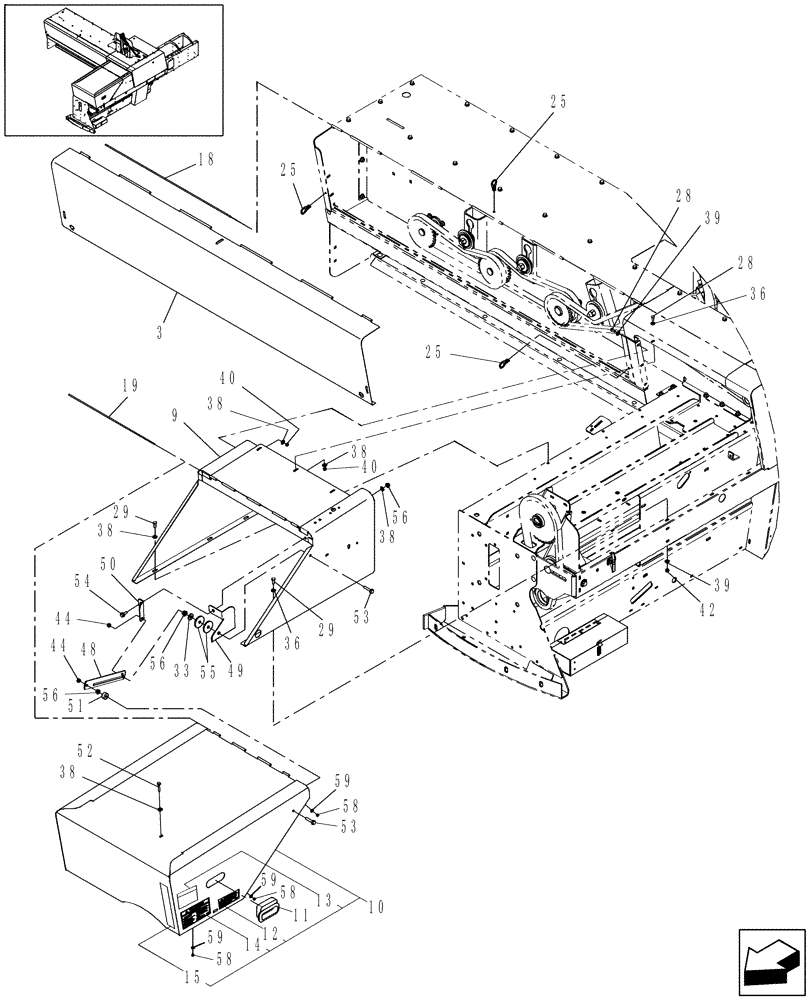

Схема запчастей Case IH SB551 - (90.105.03) - SHIELDS, FRONT (90) - PLATFORM, CAB, BODYWORK AND DECALS
25
55
28
11
38
56
44
42
3
58
36
52
25
15
14
49
48
10
29
39
58
40
18
28
59
12
51
33
38
25
36
44
58
38
29
56
19
54
50
38
53
9
59
13
53
39
56
40
59
38

Артикул

Название

Примечание

Количество

3

87663976

DOOR

Includes: Ref. 4

1шт.

Not Illustrated. Refer to Decal Figures for Decal Placement.

1шт.

4

86626958

WARNING DECAL

English

1шт.

9

87494294

HOOD

1шт.

10

84133835

HOOD

Includes: Ref. 12 - 15

1шт.

11

3962571

HANDLE

1шт.

12

87041060

WARNING DECAL

English

1шт.

13

86629205

WARNING DECAL

English

1шт.

14

86622073

WARNING DECAL

English

1шт.

15

86547782

REFLECTOR,YELLOW

Yellow, Retroreflective

1шт.

18

9604431

HINGE

1шт.

19

9604432

SPINDLE

1шт.

25

264552

FASTENER

3шт.

29

87872

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

6шт.

36

87361

WASHER,0.28" ID x 0.62" OD x 0.07" Thk

3шт.

37

87362

WASHER,5/16" SAE

3шт.

39

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

15шт.

41

7770

NUT,Hex, 1/4 - 20, Cl 5

8шт.

44

86629544

NUT,5/16” – 18, GR B

2шт.

48

87749605

LATCH

1шт.

49

87749603

SUPPORT

1шт.

50

87749606

BRACKET

1шт.

51

87494304

SPACER

1шт.

52

86977692

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 1 1/2"

1шт.

53

280350

BOLT

2шт.

54

86521553

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

55

322

WASHER,8.73mm ID x 42.07mm OD x 3.43mm Thk

2шт.

56

86521605

FLANGE NUT,5/16"-18, Cl 5

3шт.

58

284422

BUMPER

6шт.

59

9824840

WASHER,4.3mm ID x 9mm OD x 0.8mm Thk

6шт.

Выбрано товаров: 30
