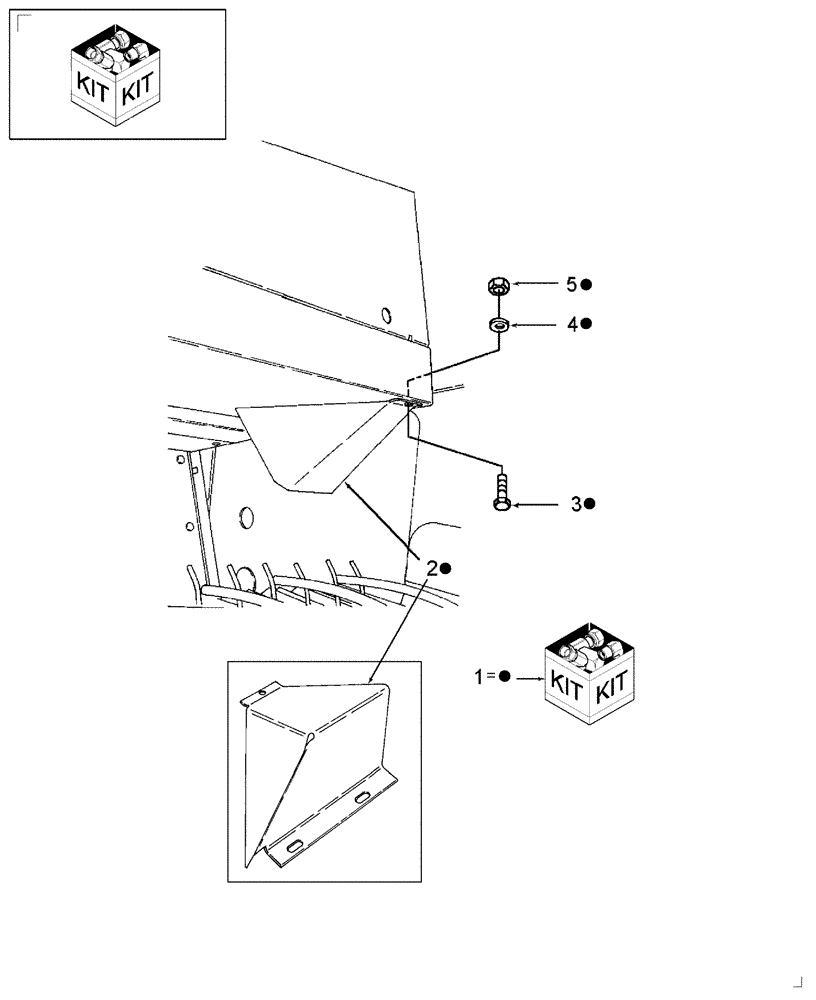

Запчасти Case IH SB551 (88.510.03) - LH FEEDER DEFLECTOR KIT (88) - ACCESSORIES

1

87737437

DIA KIT, HARVESTER

LH Feeder Wedge, Includes: Installation Instructions

1шт.

Refer to Installation Instructions for Correct Assembly Procedure.

1шт.

2

87737766

DEFLECTOR

1шт.

3

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

3шт.

4

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

3шт.

5

9706690

NUT,M8 x 1.25, Cl 8

3шт.
