(88.510.02) - GRASS HAY FEEDER KIT

Запчасти Case IH SB551 (88.510.02) - GRASS HAY FEEDER KIT (88) - ACCESSORIES

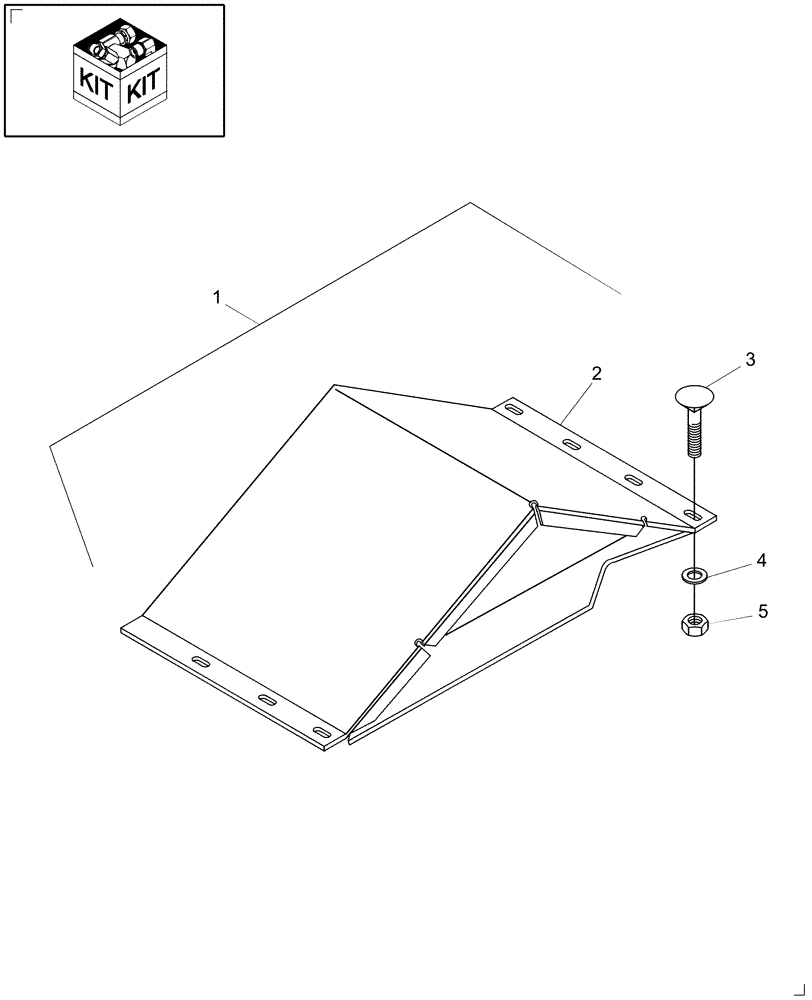

Схема запчастей Case IH SB551 - (88.510.02) - GRASS HAY FEEDER KIT (88) - ACCESSORIES
3
5
4
1
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87737512

DIA KIT, HARVESTER

Grass Hay Feeder, Includes: Installation Instructions

1шт.

Refer to Installation Instructions for Correct Assembly Procedure.

1шт.

2

87737764

PLATE

1шт.

3

280497

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 3/4", Gr 5, Full Thd

4шт.

4

80681

LOCK WASHER,5/16"

4шт.

5

9635082

NUT,5/16" - 18, Gr 5

4шт.
