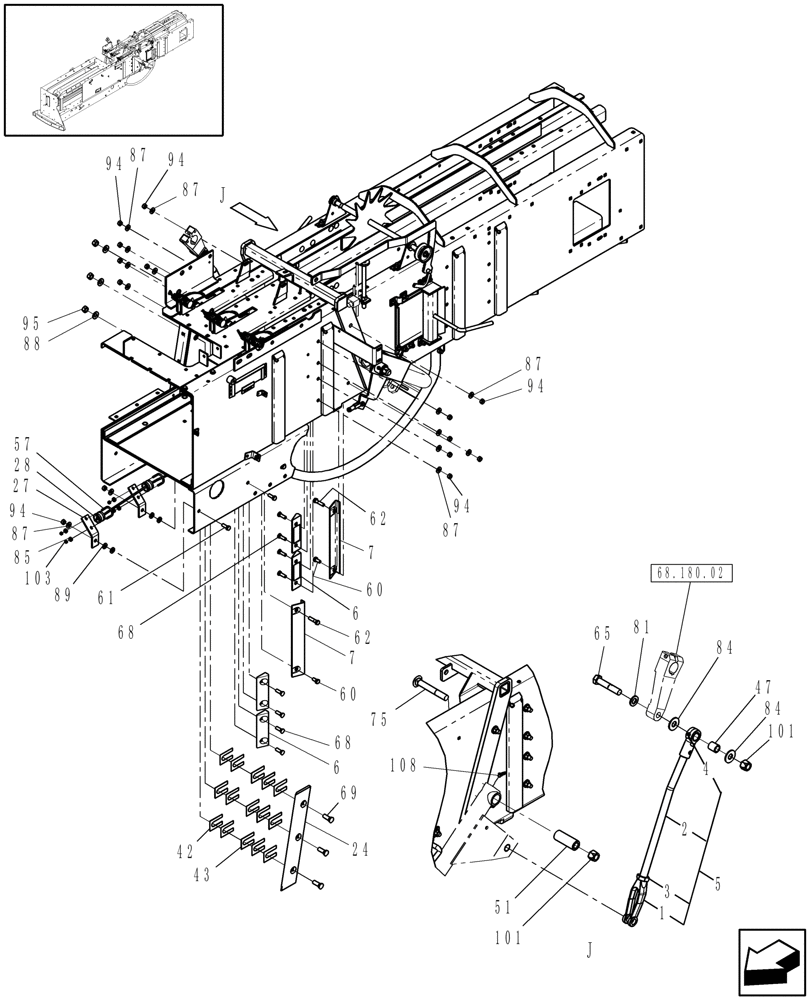

Запчасти Case IH SB551 (62.150.03) - STATIONARY KNIFE, NEEDLE YOKE ROD & HAY WEDGES (62) - PRESSING - BALE FORMATION

1

9604514

CLEVIS

1шт.

2

86977225

ROD

1шт.

3

320771

NUT,Thin, M20 x 1.5, Cl 04

1шт.

4

87414

LUBE NIPPLE,1/4" - 28

1шт.

5

0C

ORDER COMPONENTS

Needle Yoke Rod

1шт.

6

86640794

STOP

Hay

4шт.

7

32124

STOP

Hay

2шт.

24

9809008

KNIFE

Plunger

1шт.

27

848783

SUPPORT

2шт.

28

222003

GUIDE

2шт.

42

67510

SHIM,0.254mm Thk

6/ARшт.

43

67606

SHIM,0.6mm Thk

9/ARшт.

47

132449

SPACER

1шт.

51

848470

SPACER

1шт.

57

28114

U-BOLT

2шт.

60

88434

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

61

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

62

88044

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

65

9827853

BOLT,Hex, 5/8" - 11 x 3 1/4", Gr 5

1шт.

68

281004

PLOW BOLT,#3, 3/8" - 16 x 1 1/4", Gr 5, Full Thd

8шт.

69

280320

PLOW BOLT,#3, 1/2" - 13 x 1 1/2", Gr 5, Full Thd

3шт.

75

9602207

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 4 1/2", Gr 5

1шт.

81

49637

WASHER,16.5mm ID x 30mm OD x 2.99mm Thk

1шт.

84

86516680

WASHER

2шт.

85

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

4шт.

87

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

14шт.

88

86513238

LOCK WASHER,.515” ID x 1.070” OD x .120” TK

3шт.

89

87016

WASHER,0.41" ID x 0.81" OD x 0.07" Thk

4шт.

94

9628503

NUT,3/8"-16, G5

14шт.

95

280431

NUT,1/2"-13, G5

3шт.

101

19670

NUT,5/8"-11, GB

2шт.

103

87304

NUT,#10-24

4шт.

108

87569

LUBE NIPPLE,45 Degree, 1/4" NPT x 4/5" L, Drive

1шт.
