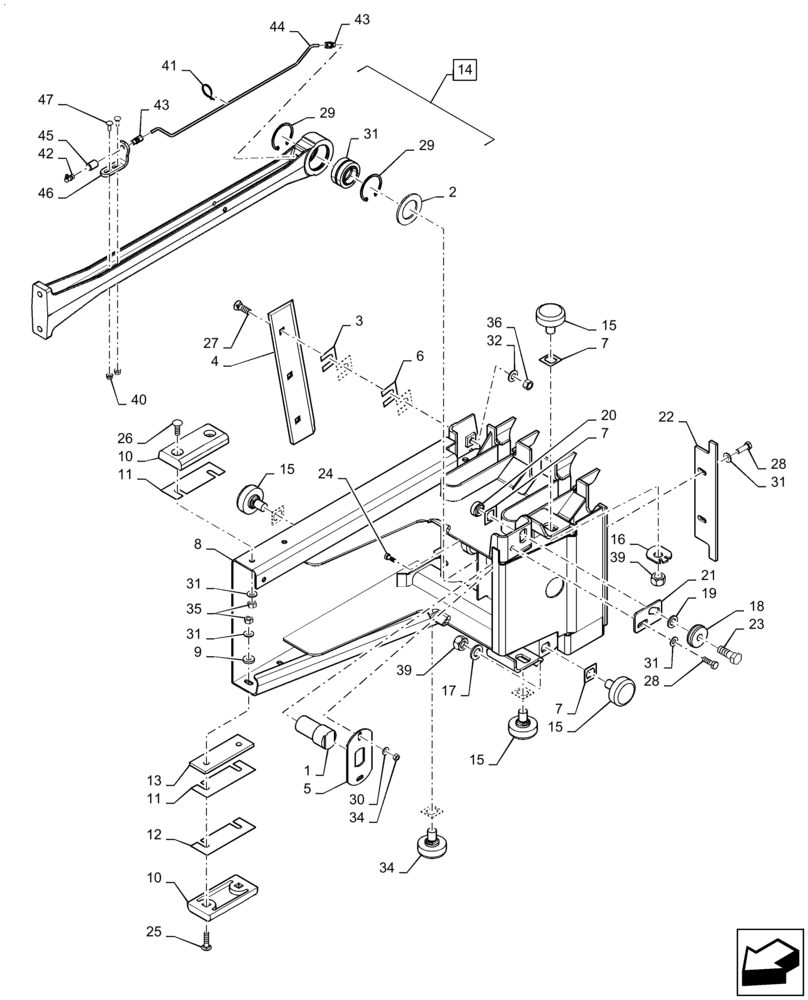

Запчасти Case IH SB551 (62.150.02) - PLUNGER (62) - PRESSING - BALE FORMATION

1

848535

PIN,45mm OD x 91mm L

1шт.

2

84814169

WASHER,46mm ID x 75mm OD x 4mm Thk

1шт.

3

686876

SHIM,.010" Thk

6шт.

4

9809008

KNIFE

1шт.

5

848531

PLATE

1шт.

6

686877

SHIM,.024" Thk

7шт.

7

86629517

WASHER

6шт.

8

9809088

PLUNGER

1шт.

9

35097

WASHER,10.3mm ID x 25.4mm OD x 5mm Thk

2шт.

10

848530

GUIDE

2шт.

11

848533

SHIM,0.8mm Thk

2шт.

12

848534

SHIM,1.5mm Thk

1шт.

13

848536

SPACER

1шт.

14

87608478

ROD

Incl 29, 31

1шт.

15

688282

BALL BEARING,0.748" ID x 63.5 mm OD x 22.6 mm

5шт.

16

691326

CAM

2шт.

17

NLS

NO LONGER SERVICED

3шт.

18

165484

BALL BEARING,15.94mm ID x 50.8mm OD x 15mm W

1шт.

19

781316

WASHER,16.66mm ID x 28.45mm OD x 3.43mm Thk

1шт.

20

284620

BEARING LOCK NUT

1шт.

21

9824600

CAM

1шт.

22

9822612

PLATE

1шт.

23

9627896

BOLT,Hex, 5/8" - 11 x 1 3/4", Gr 5

1шт.

24

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.

25

374892

CARRIAGE BOLT,M10 x 1.5 x 40mm, Cl 8.8

2шт.

26

86512446

CARRIAGE BOLT,M10 x 1.5 x 30mm, Cl 8.8

2шт.

27

280320

PLOW BOLT,#3, 1/2" - 13 x 1 1/2", Gr 5, Full Thd

3шт.

28

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

3шт.

29

370012

RING,M62, Internal

2шт.

30

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

2шт.

31

848532

SPHERICAL BEARING,38.09mm ID x 61.91mm OD x 33.3mm W

1шт.

32

86513238

LOCK WASHER,.515” ID x 1.070” OD x .120” TK

3шт.

34

9706690

NUT,M8 x 1.25, Cl 8

2шт.

35

100016

NUT,M10 x 1.5, Cl 8

4шт.

36

280431

NUT,1/2"-13, G5

3шт.

39

86547668

LOCK NUT,3/4" - 16, GB

5шт.

40

9626558

FLANGE NUT,Flg, 1/4"-20

2шт.

41

263117

CABLE TIE,292.1mm L, Nylon, Black

CABLE STRAP

1шт.

42

80719

LUBE NIPPLE,1/8" NPT

1шт.

43

11787

FITTING,3/8"-24 Fem x 1/8" NPT

Includes: Ref. 48 & 49

2шт.

44

84131759

LINE

1шт.

45

91932

COUPLING,1/8" - 27 NPT x 1/8" - 27 NPT

1/8" NPT

1шт.

46

84129651

MOUNT

1шт.

47

88832

CARRIAGE BOLT,Sq Nk, 1/4" - 20 x 3/4", Gr 5, Full Thd

2шт.

48

13362

SLEEVE,Compression, 3/16" Tube

1шт.

Not Illustrated

1шт.

49

13367

NUT,3/8" - 24

1шт.

Not Illustrated

1шт.
