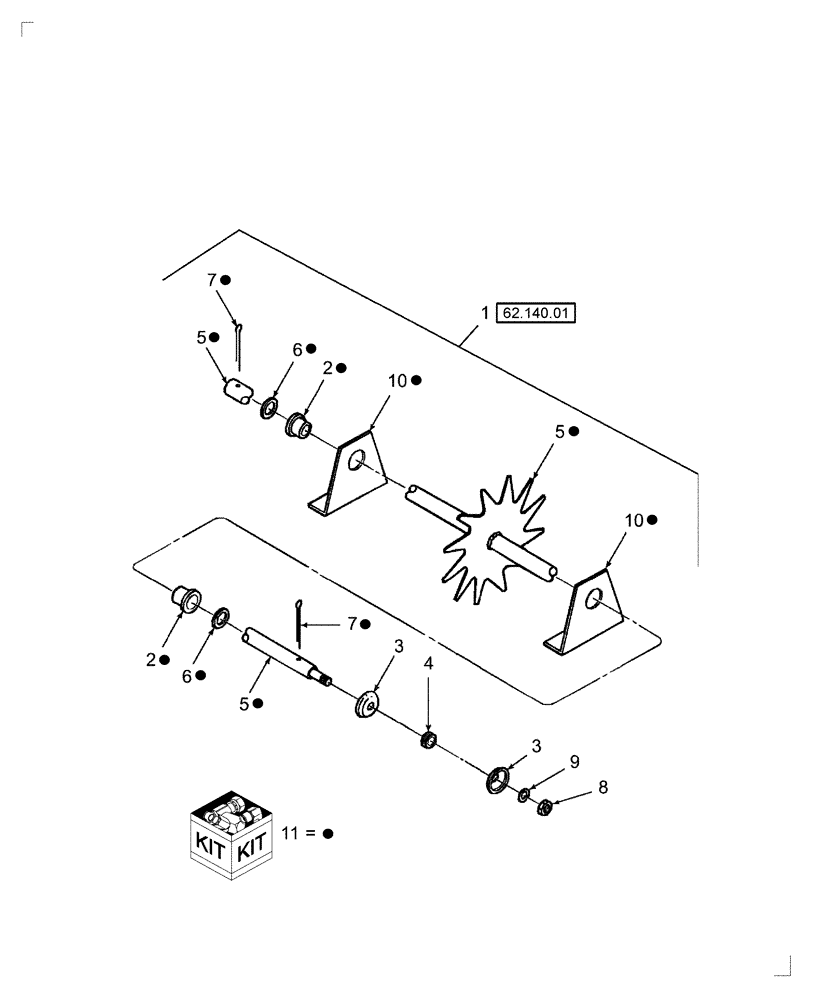

Запчасти Case IH SB551 (62.140.02) - METERING WHEEL (62) - PRESSING - BALE FORMATION

1

0C

ORDER COMPONENTS

Metering Wheel

1шт.

87044673

1шт.

2

44806

BUSHING,16.13mm ID x 31.88mm OD x 19.05mm L

2шт.

3

86528355

CUP

2шт.

4

86528354

GEAR

1шт.

5

87044672

WHEEL

1шт.

6

87365

WASHER,0.66" ID x 1.31" OD x 0.1" Thk

2шт.

7

80755

COTTER PIN,1/8" OD x 1" L

2шт.

8

9628503

NUT,3/8"-16, G5

1шт.

9

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

1шт.

10

86900747

SUPPORT

2шт.

11

84157826

METER

Wheel, Kit

1шт.

Refer to Installation Instructions for Correct Assembly Procedure.

1шт.
