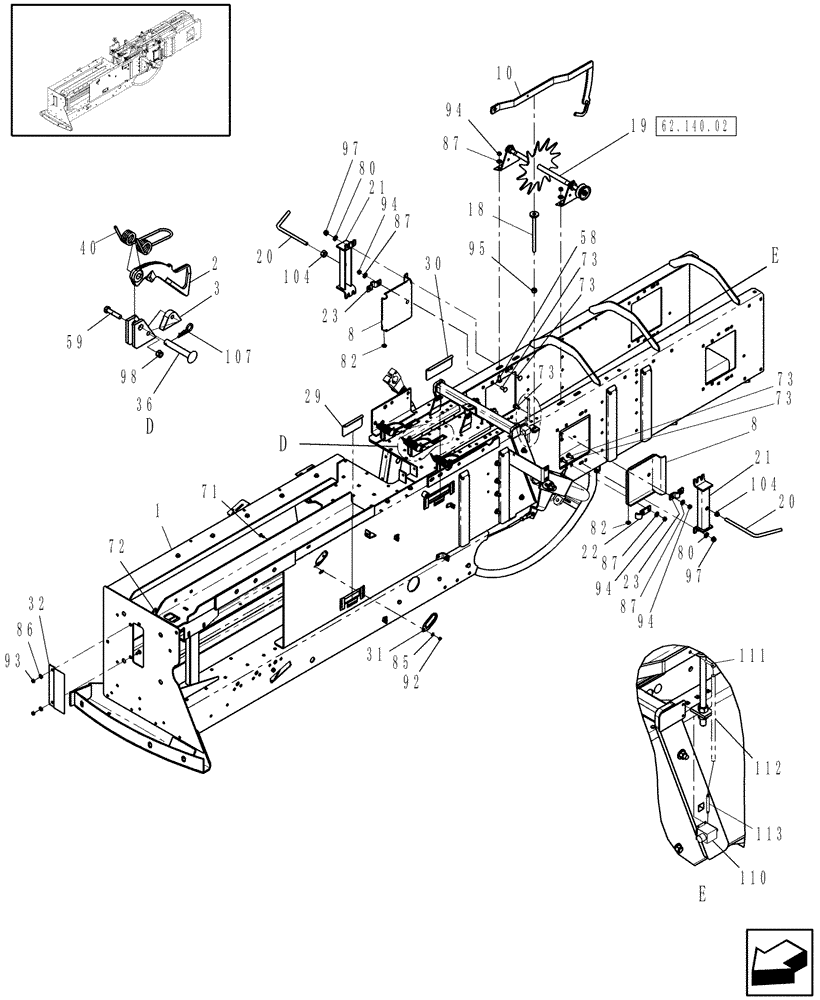

Запчасти Case IH SB551 (62.140.01) - HAY DOORS, HAY DOGS & BALE COUNTER (62) - PRESSING - BALE FORMATION

1

NS

NOT SERVICED

Main Frame

1шт.

2

714862

DOG

6шт.

3

854913

STOP

6шт.

4

84133827

BRACKET

Hay Dog Mount

1шт.

Welding Required

1шт.

Not Illustrated

1шт.

8

86630802

TRACK PLATE

Hay

2шт.

10

87482431

TRIP ARM

1шт.

18

714808

ROD

1шт.

19

0C

ORDER COMPONENTS

Metering Wheel, Refer to Figure 62.140.02

1шт.

20

849347

HANDLE

2шт.

21

86630800

SUPPORT

2шт.

22

788886

BRACKET

1шт.

23

603652

BRACKET

3шт.

29

848456

COVER

1шт.

30

87704728

COVER

1шт.

31

87710689

COVER ASSY

1шт.

32

9823891

SHIELD

1шт.

36

771478

PIN,12.7mm OD x 86.77mm L

6шт.

40

86505745

SPRING,Torsion

6шт.

58

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

59

88275

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 5

6шт.

71

88832

CARRIAGE BOLT,Sq Nk, 1/4" - 20 x 3/4", Gr 5, Full Thd

1шт.

72

280327

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5, Full Thd

2шт.

73

88682

CARRIAGE BOLT,Short Nk, 3/8"-16 x 1", Gr 5

16шт.

80

48055

WASHER

8шт.

82

244379

WASHER,13.49mm ID x 19.05mm OD x 2.67mm Thk

2шт.

85

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

1шт.

86

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

2шт.

87

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

12шт.

92

7770

NUT,Hex, 1/4 - 20, Cl 5

1шт.

93

9635082

NUT,5/16" - 18, Gr 5

2шт.

94

9628503

NUT,3/8"-16, G5

12шт.

95

280431

NUT,1/2"-13, G5

1шт.

97

86521609

FLANGE NUT,Flg, 3/8"-16

8шт.

98

86629544

NUT,5/16” – 18, GR B

6шт.

104

100038

NUT,M12 x 1.75, Cl 8

2шт.

107

216698

COTTER PIN,0.125" OD x 1.75" L

6шт.

110

86608973

BALE COUNTER

1шт.

111

87019

COTTER PIN,3/16" x 3/4"

1шт.

112

197559

CHAIN,9" L

1шт.

113

197717

SPRING

1шт.
