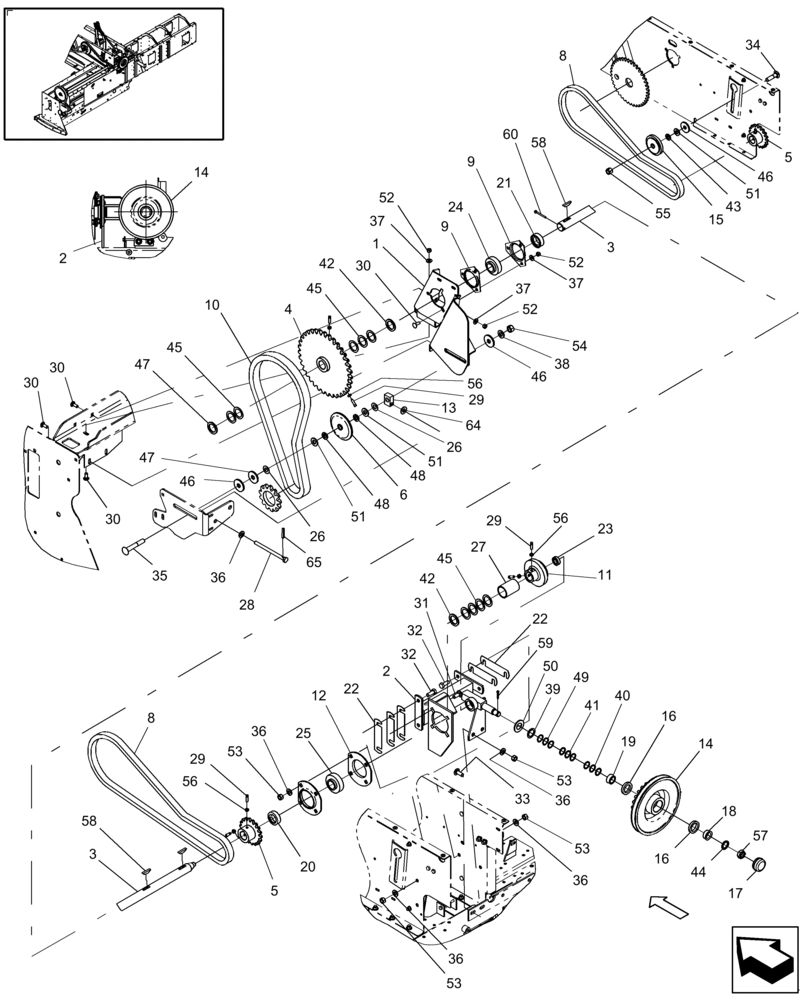

Запчасти Case IH SB551 (60.220.06) - FEEDER DRIVESHAFT (60) - PRODUCT FEEDING

1

87746180

BRACKET

1шт.

2

848615

ANGLE

1шт.

3

9801471

SHAFT

1шт.

4

9823911

DRIVING SPROCKET

1шт.

5

9801474

DRIVING SPROCKET

1шт.

6

NS

NOT SERVICED

Sprocket, Plastic, 13T, RC80, Production Only {87050058)

1шт.

Production Only Sprocket (87050058) is a Plastic Sprocket. Service Only Sprocket (66614) is a Steel Sprocket.

1шт.

6

66614

SPROCKET,RC80, 13T

Steel, 13T, RC80, Service Only

1шт.

Production Only Sprocket (87050058) is a Plastic Sprocket. Service Only Sprocket (66614) is a Steel Sprocket.

1шт.

8

848630

CHAIN

Roller, RC60, 94 Total Pitches, Includes: Ref. 72

1шт.

9

86620026

FLANGED BEARING

1шт.

10

9823914

CHAIN

Roller, RC80, 59 Total Pitches, Includes: Ref. 70 & 71

1шт.

11

9801472

DRIVE PINION

1шт.

12

86548973

FLANGE

2шт.

13

84180942

BLOCK

1шт.

14

87648794

SHEAVE

1шт.

15

511265

SPROCKET

1шт.

16

132709

BEARING CUP,50.29mm OD x 10.67mm W

2шт.

17

200734

HUB CAP

1шт.

18

132710

BEARING CONE,25.4mm ID x 14.73mm W

1шт.

19

223796

ROLLER BEARING,25.4mm ID x 14.73mm W

1шт.

20

45393

COLLAR

1шт.

21

47067

RETAINER COLLAR,34.92mm ID x 56.33mm OD x 17.46mm Thk

1шт.

22

848616

SHIM

5шт.

23

86629503

BALL BEARING,17mm ID x 35mm OD x 10mm W

1шт.

24

47559

BALL BEARING,39.937 mm ID x 72 mm OD x 37.7 mm

1шт.

25

86575514

BALL BEARING,34.92mm ID x 80mm OD x 24.3mm W

1шт.

26

47407

WASHER,16.7mm ID x 33.3mm OD x 0.75mm Thk

2шт.

27

848622

SPACER

1шт.

28

84133824

BOLT

1шт.

29

88971

SET SCREW,5/16" - 18 x 1"

6шт.

30

88682

CARRIAGE BOLT,Short Nk, 3/8"-16 x 1", Gr 5

8шт.

31

87868

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/4", Gr 5, Full Thd

4шт.

32

87670

BOLT,1/2" - 13 x 1-1/4", Full Thd, Gr 5

4шт.

33

88707

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/4", Gr 5, Full Thd

2шт.

34

280466

CARRIAGE BOLT,Short Sq Nk, 5/8" - 11 x 2 1/2", Gr 5

1шт.

35

280547

CARRIAGE BOLT,Sht Sq Nk, 5/8" - 11 x 4", Gr 5

1шт.

36

86513238

LOCK WASHER,.515” ID x 1.070” OD x .120” TK

11шт.

37

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

6шт.

38

140048

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 2.8mm Thk

1шт.

39

673

WASHER,29mm ID x 41mm OD x 1.52mm Thk

1шт.

40

245531

WASHER,25.53mm ID x 31.24mm OD x 1.65mm Thk

3шт.

41

245532

WASHER,25.53mm ID x 31.24mm OD x 0.38mm Thk

3шт.

42

267571

WASHER

3шт.

43

49637

WASHER,16.5mm ID x 30mm OD x 2.99mm Thk

1шт.

44

536293

WASHER

1шт.

45

58630

WASHER,.0299" Thk

9шт.

46

604937

WASHER,16.7mm ID x 52.4mm OD

3шт.

47

623800

WASHER

1шт.

48

781316

WASHER,16.66mm ID x 28.45mm OD x 3.43mm Thk

2шт.

49

80245530

WASHER,25.53mm ID x 31.24mm OD x 0.91mm Thk

3шт.

50

9615177

WASHER

1шт.

51

87365

WASHER,0.66" ID x 1.31" OD x 0.1" Thk

3шт.

52

9628503

NUT,3/8"-16, G5

6шт.

53

280431

NUT,1/2"-13, G5

10шт.

54

280374

NUT,Hex, 5/8" - 11, Gr 5

1шт.

55

19670

NUT,5/8"-11, GB

1шт.

56

9626568

JAM NUT,Jam, 5/16"-18, G2

6шт.

57

412106

SLOTTED NUT,M20 x 1.5, Cl 04

1шт.

58

87122

WOODRUFF KEY,#128, 5/16" x 2 1/8"

3шт.

59

84887

COTTER PIN,5/32" x 1 1/4"

1шт.

60

80812

COTTER PIN,3/16" x 2"

1шт.

64

80700

WASHER,0.56" ID x 1.38" OD x 0.11" Thk

1шт.

65

86544803

PIN

1шт.

70

86643889

CONNECTING LINK

1шт.

Not Illustrated

1шт.

71

86977428

CONNECTING LINK

Offset

1шт.

Not Illustrated

1шт.

72

165590

CONNECTING LINK

1шт.

Not Illustrated

1шт.
