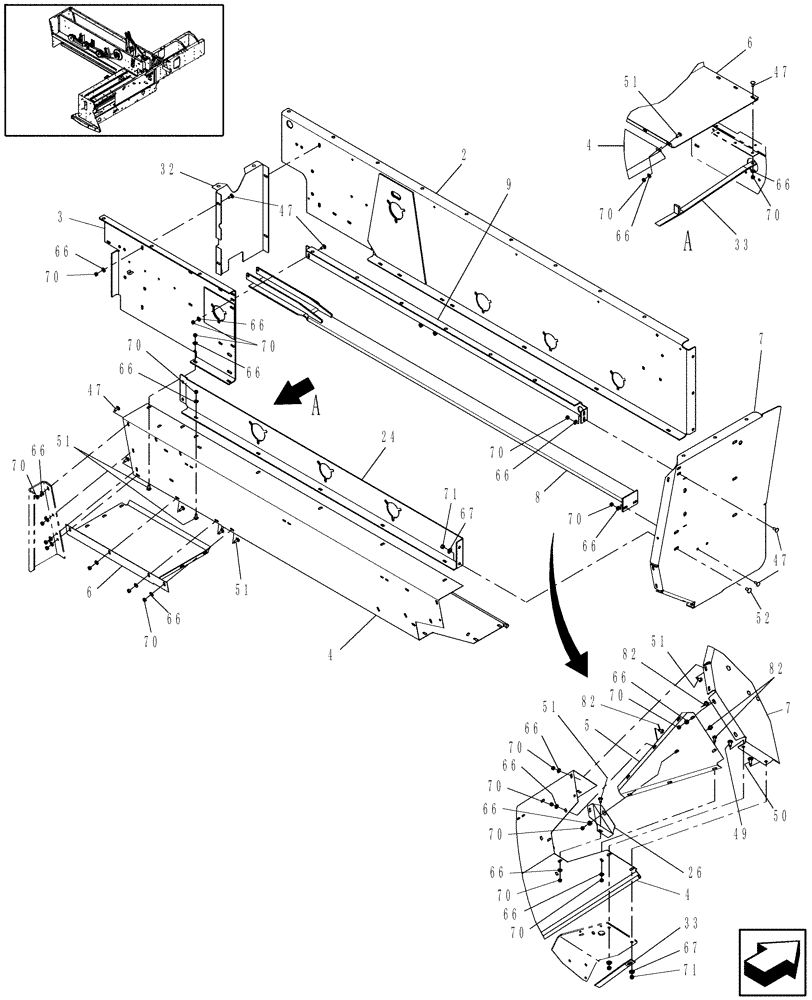

Запчасти Case IH SB551 (60.220.03) - FEEDER SHIELDS (60) - PRODUCT FEEDING

2

87741343

STEEL PLATE

Front

1шт.

3

87741346

FEEDER

Rear

1шт.

4

87740237

FLOOR

Feeder

1шт.

5

9809344

FEEDER

Corner

1шт.

6

9809343

PAN

Feeder

1шт.

7

87719320

SUPPORT

1шт.

8

849385

GUARD

Hay

1шт.

9

87711695

TOP COVER

1шт.

24

848734

SUPPORT

Rotor

1шт.

26

9809345

PIPE

1шт.

32

87673700

PROTECTION PLATE

1шт.

33

9809944

SUPPORT

1шт.

47

280327

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5, Full Thd

15шт.

49

88682

CARRIAGE BOLT,Short Nk, 3/8"-16 x 1", Gr 5

1шт.

50

86508773

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5, Full Thd

1шт.

51

280497

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 3/4", Gr 5, Full Thd

22шт.

52

86508748

CARRIAGE BOLT,Short Square Neck, 3/8" - 16 x 3/4", Grade 5

2шт.

66

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

44шт.

67

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

4шт.

70

9635082

NUT,5/16" - 18, Gr 5

44шт.

71

9628503

NUT,3/8"-16, G5

4шт.

82

88992

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1", Gr 5

9шт.
