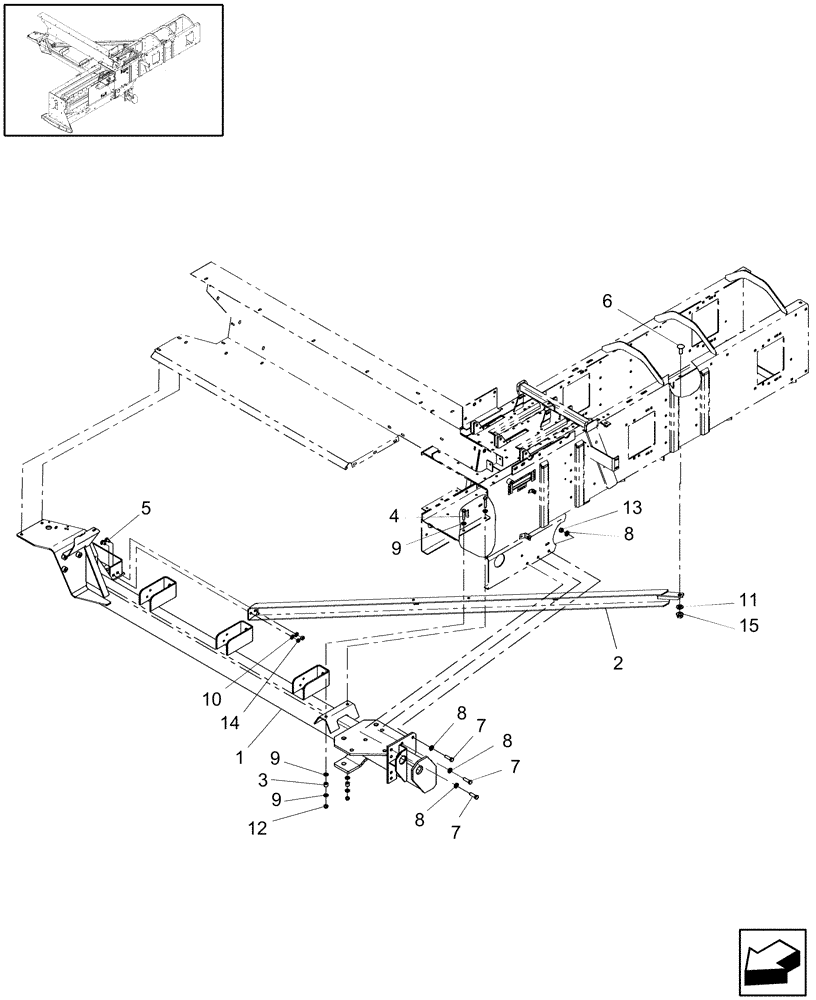

Запчасти Case IH SB551 (44.100.01) - AXLE (44) - WHEELS

1

86635666

FRONT AXLE

1шт.

2

87725234

BRACKET

1шт.

3

698872

SPACER

2шт.

4

120069

BOLT,M10 x 1.5 x 56.58mm OAL, Cl 8.8

2шт.

5

120041

CARRIAGE BOLT,M10 x 20mm, Cl 8.8

2шт.

6

86595832

CARRIAGE BOLT,Sht Sq Nk, M16 x 40mm, Cl 8.8, Full Thd

1шт.

7

86629541

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8

3шт.

8

65319

WASHER,13.1mm ID x 25.4mm OD x 3.68mm Thk

6шт.

9

285072

WASHER,10.3mm ID x 22.2mm OD x 2.7mm Thk

(3/8")

6шт.

10

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

2шт.

11

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

1шт.

12

100037

LOCK NUT,M10 x 1.5, Cl 8

2шт.

13

100038

NUT,M12 x 1.75, Cl 8

3шт.

14

100016

NUT,M10 x 1.5, Cl 8

2шт.

15

9804280

FLANGE NUT,Hex, M16, Cl 8

1шт.
