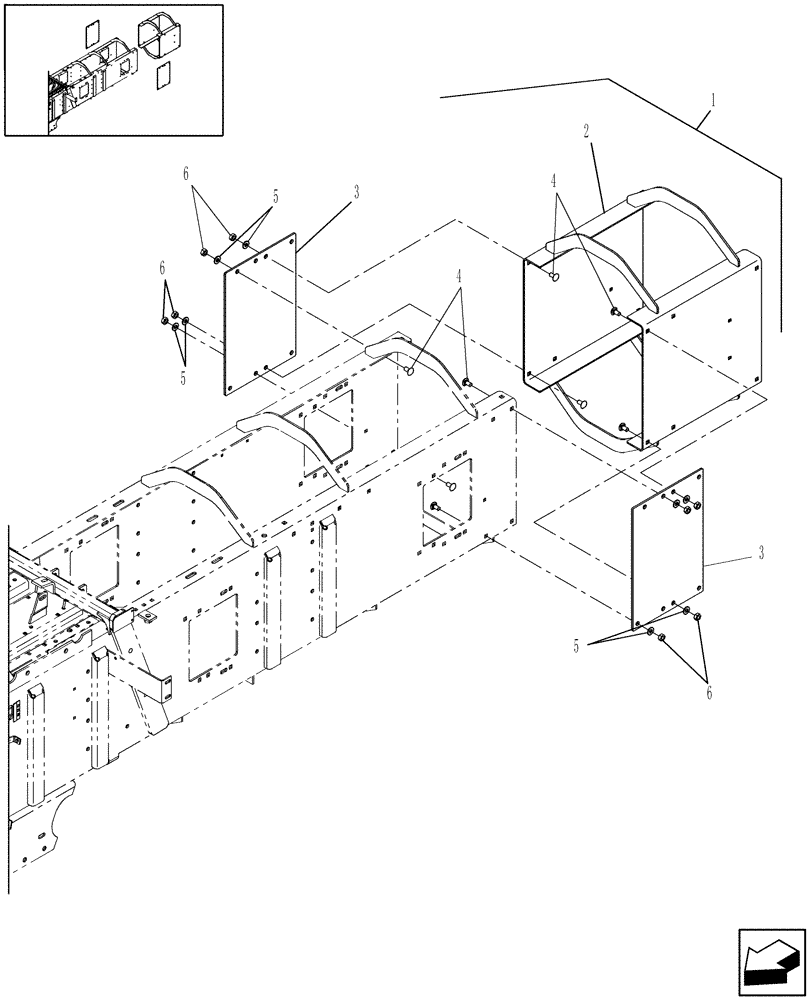

Запчасти Case IH SB551 (39.100.02) - BALE CASE EXTENSION LESS HAY DOORS (39) - FRAMES AND BALLASTING

1

87482656

KIT

Bale Case Extension

1шт.

Refer to Installation Instructions for Correct Assembly Procedure.

1шт.

2

86633400

EXTENSION

Bale Case

1шт.

3

86633398

PLATE

2шт.

4

120041

CARRIAGE BOLT,M10 x 20mm, Cl 8.8

16шт.

5

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

16шт.

6

100016

NUT,M10 x 1.5, Cl 8

16шт.
