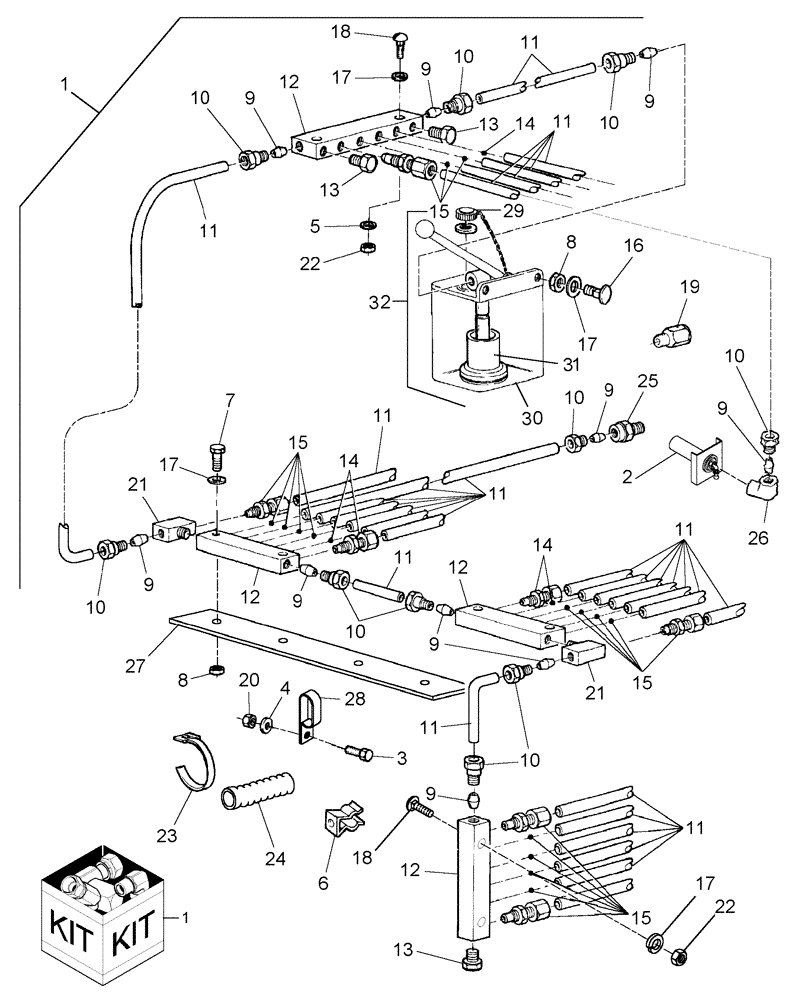

Запчасти Case IH SB551 (35.597.01) - MANUAL OILER KIT (35) - HYDRAULIC SYSTEMS

87725904

DIA KIT, HARVESTER

Manual Oiler, Twine, Includes: Installation Instructions

1шт.

Refer to Installation Instructions for Correct Assembly Procedure.

1шт.

1

9842501

HYDRAULIC PUMP

1шт.

2

132451

PIN

Clevis, Lube

1шт.

3

412255

BOLT,Hex, M4 x 20mm, Cl 8.8

1шт.

4

322355

BELLEVILLE WASHER,M4 Bolt Size x 10mm OD x 0.9mm Thk

1шт.

5

87361

WASHER,0.28" ID x 0.62" OD x 0.07" Thk

4шт.

6

86629501

CLIP

3шт.

7

43117

SCREW,Hex, M6 x 1.0 x 30mm, Cl 8.8

1шт.

8

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

4шт.

9

576894

CONE TYPE FERRULE

32шт.

10

576895

NUT,5/16" - 24

Sleeve

32шт.

11

9817659

PLASTIC-RUBBER TUBE

Nylon

1шт.

12

799336

DUCT

Manifold, 8 Way

4шт.

13

576896

PLUG

Maniflod

1шт.

14

9602844

ADJUSTMENT SCREW

ACL meter unit 1/2

1шт.

15

86589363

ADJUSTMENT SCREW

ACL meter unit

1шт.

16

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

6шт.

17

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

10шт.

18

280687

CARRIAGE BOLT,Sq Nk, 1/4" - 20 x 1 1/4", Gr 5

6шт.

19

9842504

ADAPTER

2шт.

20

100012

NUT,M4 x 0.7, Cl 8

1шт.

21

9842503

HYD CONNECTOR

T Block

2шт.

22

7770

NUT,Hex, 1/4 - 20, Cl 5

6шт.

23

263117

CABLE TIE,292.1mm L, Nylon, Black

CABLE STRAP

8шт.

24

702648

RIGID TUBE,6.35 mm OD, 127 mm Length

Plastic, Protection

4шт.

25

86516715

HYD CONNECTOR

1шт.

26

9842502

ELBOW

90°

1шт.

27

86977508

BRACKET

1шт.

28

332401

WIRE CLAMP,7.9mm, Coat, 4.2mm Bolt Hole, P Type

1шт.

29

87014974

FILLER CAP

1шт.

30

87014972

RESERVOIR

1шт.

31

87014973

KIT

Filter

1шт.
