(35.550.16) - HYDRAULIC CYLINDER, SIDE DOORS

Запчасти Case IH SB551 (35.550.16) - HYDRAULIC CYLINDER, SIDE DOORS (35) - HYDRAULIC SYSTEMS

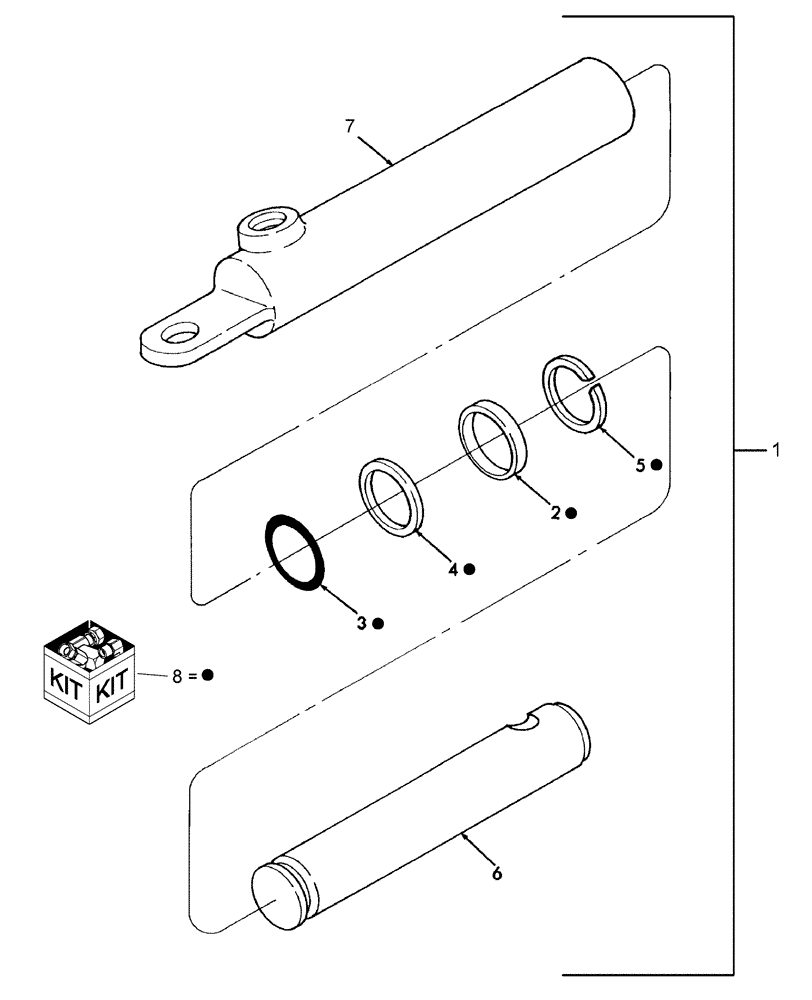

Схема запчастей Case IH SB551 - (35.550.16) - HYDRAULIC CYLINDER, SIDE DOORS (35) - HYDRAULIC SYSTEMS
6
4
5
2
7
1
3
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87556569

HYDRAULIC CYLINDER,25.4mm Rod, 76.2mm Stroke

Hydraulic Door Kit

1шт.

Manufacturers' Production Date Stamp (ex. - M / 02 / 2008 = M / week / year).

1шт.

2

NSS

NOT SOLD SEPARAT

Seal, Oil

1шт.

3

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

4

NSS

NOT SOLD SEPARAT

Washer, Back-Up

1шт.

5

NSS

NOT SOLD SEPARAT

Ring, Lock

1шт.

6

87584230

MOUNTING ROD

Piston

1шт.

7

NSS

NOT SOLD SEPARAT

Barrel

1шт.

8

87584231

SEAL KIT

Includes: Ref. 2 - 5

1шт.

Components are N.S.S

1шт.
