Запчасти Case IH SB551 (35.550.12) - HYDRAULIC BALE TENSION OIL PUMP DRIVE (35) - HYDRAULIC SYSTEMS

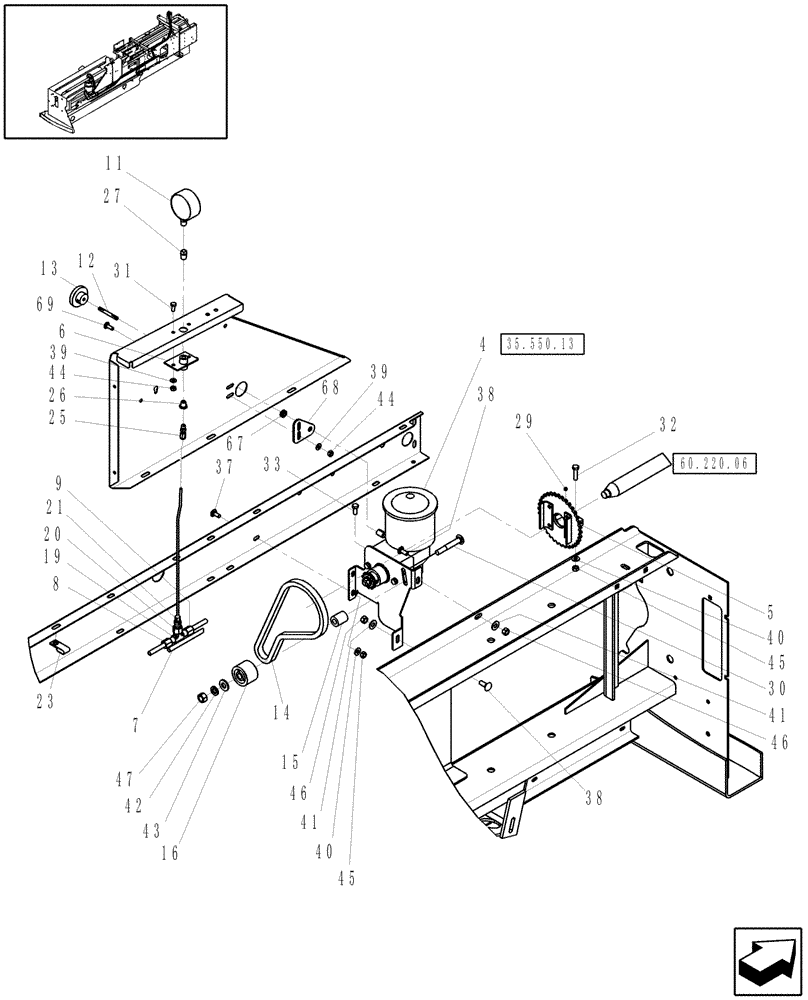

Схема запчастей Case IH SB551 - (35.550.12) - HYDRAULIC BALE TENSION OIL PUMP DRIVE (35) - HYDRAULIC SYSTEMS
9
32
12
29
4
13
14
23
27
45
35.550.13
15
60.220.06
21
26
40
41
30
38
38
5
7
19
25
68
44
39
39
46
67
33
8
40
44
46
16
37
42
20
69
47
41
11
31
6
43
45

Артикул

Название

Примечание

Количество

4

86640940

HYDRAULIC PUMP,3.93 CC

HYDRAULIC BALE TENSION OIL PUMP

1шт.

86640940R

REMAN-HYD PUMP

SB551,

1шт.

86640940C

CORE-HYDRAULIC PUMP

Return Number

1шт.

5

848623

DRIVING SPROCKET

1шт.

6

9829285

PLATE

1шт.

7

87643023

HYD TUBE,9.52 mm OD x 2212.4, 190 mm L

1шт.

8

87643024

HYD TUBE,9.52 mm OD x 1619.2, 222 mm L

1шт.

9

87643025

HYD TUBE

1шт.

11

9807929

GAUGE

1шт.

12

87643027

SHAFT

1шт.

13

127476

KNOB

1шт.

14

87494311

CHAIN

Includes: Ref. 48

1шт.

15

48462

SPACER,12.852mm ID x 25.4mm OD x 31.8mm L

1шт.

16

678571

IDLER WHEEL

1шт.

19

86513032

TEE,9/16"-18, 37 Degree x 1/4"-18, NPTF Br

1шт.

20

87013887

ADAPTER

1шт.

21

646429

HYD CONNECTOR

1шт.

23

605025

CLAMP,3/8", Coated, 3/8" Bolt

3шт.

25

11787

FITTING,3/8"-24 Fem x 1/8" NPT

1шт.

26

87938

ADAPTER,1/4" NPT x 1/8" NPT

1шт.

27

80775

DRAIN PLUG,1/4" - 18 NPT

1шт.

29

80430

SET SCREW,1/4" - 20 x 1/4"

1шт.

30

88419

BOLT,Rd Hd, Sht Sq Nk, 1/2" - 13 x 3 1/2", Gr 5

1шт.

31

280641

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

2шт.

33

280687

CARRIAGE BOLT,Sq Nk, 1/4" - 20 x 1 1/4", Gr 5

1шт.

37

280327

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5, Full Thd

4шт.

38

88682

CARRIAGE BOLT,Short Nk, 3/8"-16 x 1", Gr 5

2шт.

39

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

4шт.

40

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

7шт.

41

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

8шт.

42

80679

LOCK WASHER,1/20.507 CST ZND

1шт.

43

87364

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

1шт.

44

7770

NUT,Hex, 1/4 - 20, Cl 5

2шт.

45

9635082

NUT,5/16" - 18, Gr 5

7шт.

46

9628503

NUT,3/8"-16, G5

8шт.

47

280431

NUT,1/2"-13, G5

1шт.

48

44428

CONNECTING LINK

1шт.

Not Illustrated

1шт.

53

604896

CLAMP,Dual, 3/8" Hose, 6mm Bolt

1шт.

67

513917

GROMMET

1шт.

68

84134233

SUPPORT

1шт.

69

280638

CARRIAGE BOLT,Short NK, 1/4"-20 x 3/4", G5, Full Thd

2шт.

Выбрано товаров: 42
