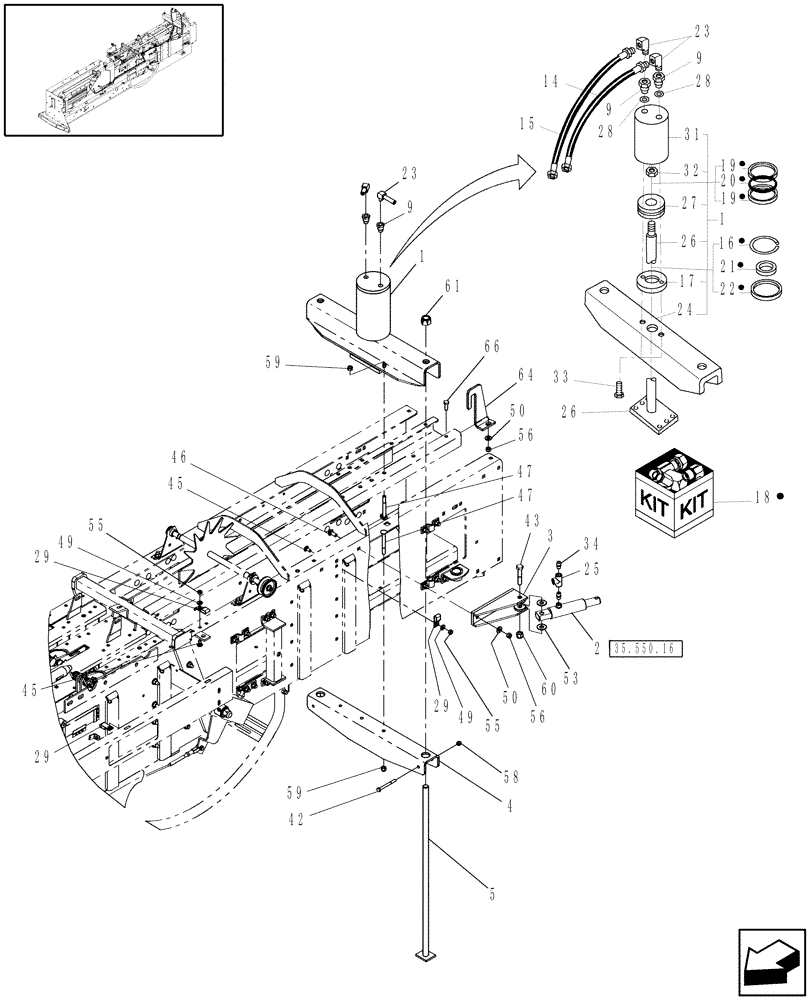

Запчасти Case IH SB551 (35.550.11) - HYDRAULIC BALE TENSIONING CYLINDER (35) - HYDRAULIC SYSTEMS

1

87723256

HYDRAULIC CYLINDER,25.4mm Rod, 107.95mm Stroke

Bale Tension

1шт.

2

87556569

HYDRAULIC CYLINDER,25.4mm Rod, 76.2mm Stroke

Hay Door, Serial Range: -YAN105457

1шт.

2

84329832

HYDRAULIC CYLINDER,25.4mm Rod, 76.2mm Stroke

Hay Door

1шт.

3

86635639

BRACKET

1шт.

4

86626030

BAR

Tension

1шт.

5

86626048

ROD

2шт.

9

126786

ADAPTER

Includes: Ref. 28, Serial Range: -YAN105457

2шт.

16

NSS

NOT SOLD SEPARAT

Ring

1шт.

17

87723978

CYLINDER END CAP

1шт.

18

87723403

SEAL KIT

1шт.

19

NSS

NOT SOLD SEPARAT

Back-Up Washer

2шт.

20

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

21

NSS

NOT SOLD SEPARAT

Bushing

1шт.

22

NSS

NOT SOLD SEPARAT

Seal, Wiper

1шт.

23

58771

ELBOW

, Serial Range: -YAN105457

2шт.

23

76344

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB

, Start Serial: YAN105458

2шт.

24

86977109

BAR

Tension

1шт.

25

86627339

HYD CONNECTOR

, Serial Range: -YAN105457

1шт.

25

86513020

TEE,9/16" - 18 ORB x 9/16" - 18 JIC x 9/16" - 18 JIC

, Start Serial: YAN105458

1шт.

26

87723979

PISTON ROD

1шт.

27

87035509

PISTON

1шт.

28

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.

29

605025

CLAMP,3/8", Coated, 3/8" Bolt

4шт.

30

87723257

HYDRAULIC CYLINDER,25.4mm Rod, 101.6mm Stroke

BaleTension

1шт.

30

87723257R

REMAN-HYD CYLINDER

SB551 SMALL SQUARE BALER, Bale Tension (9/08-)

1шт.

30

87723257C

CORE-HYD CYLINDER

Return Number

1шт.

31

NSS

NOT SOLD SEPARAT

Cylinder, Bale Tension

1шт.

32

280724

LOCK NUT,3/4" - 16

1шт.

33

87672

BOLT

1/2"- 13 x 1" Gr. 5, Full Thrd.

2шт.

Use (2) Drops of Loctite 243 on Each Cylinder Head Bolt.

1шт.

34

87052301

HYD CONNECTOR

, Serial Range: -YAN105457

2шт.

42

88731

BOLT,Hex, 5/16"- 18 x 3", Gr 5

2шт.

43

87972

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

1шт.

45

280327

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5, Full Thd

2шт.

46

88682

CARRIAGE BOLT,Short Nk, 3/8"-16 x 1", Gr 5

2шт.

47

280348

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3 1/2", Gr 5

4шт.

49

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

2шт.

50

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

3шт.

53

64263

WASHER,13.49mm ID x 31.8mm OD x 1.5mm Thk

2шт.

55

9635082

NUT,5/16" - 18, Gr 5

2шт.

56

9628503

NUT,3/8"-16, G5

3шт.

58

280736

NUT,5/16"-18, GC

2шт.

59

9637692

NUT,3/8"-16, GB

4шт.

60

9636698

NUT,1/2"-13, GB

1шт.

61

9626598

NUT,3/4"-10, GB

2шт.

64

86626036

HOOK

1шт.

65

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

66

86521613

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.
