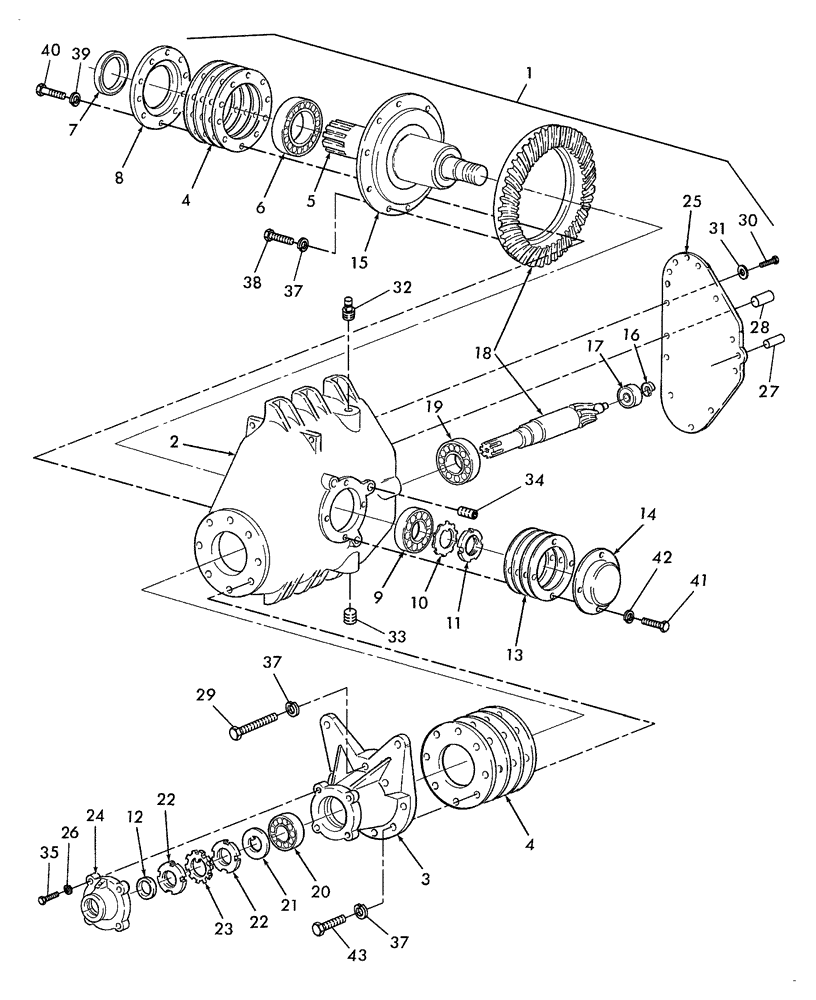

Запчасти Case IH SB551 (31.220.02) - GEARBOX, MAIN DRIVE (31) - IMPLEMENT POWER TAKE OFF

1

86635658

GEARBOX

Main Drive

1шт.

2

9617991

GEARBOX

Housing

1шт.

3

9823885

GEARBOX

Neck

1шт.

4

39283

SHIM,.002" Thk

1шт.

4

39284

SHIM,.005" Thk

1шт.

4

39285

SHIM,.007" Thk

1шт.

4

39286

SHIM,.010" Thk

1шт.

5

9823897

CRANKSHAFT

1шт.

6

80037433

ROLLER BEARING

1шт.

7

37431

OIL SEAL

Oil

1шт.

8

37304

RETAINER

Bearing

1шт.

9

37434

BEARING ASSY,61.92mm ID x 146.06mm OD x 41.38mm W

1шт.

10

37343

LOCK WASHER

External Tooth

1шт.

11

37342

LOCK NUT

1шт.

12

181991

OIL SEAL

Oil

2шт.

13

39287

SHIM,.003" Thk

1шт.

13

39288

SHIM,.005" Thk

1шт.

13

39289

SHIM,.007" Thk

1шт.

13

39290

SHIM,.010" Thk

1шт.

14

9823895

BEARING ASSY,94.32 mm ID x 165.1 mm OD x 20.6 mm

Bearing

1шт.

15

188817

RING

Gear Hub

1шт.

16

25121

SNAP RING,#100, Ext

1шт.

17

37437

BEARING, ROLLER, CYL,25mm ID x 62mm OD x 19mm W

1шт.

18

9823883

GEAR SET

Hypoid

1шт.

19

86529554

TAPERED BEARING,55.58mm ID x 96.85mm OD x 21.05mm W

Half Tolerance

1шт.

20

37436

TAPERED BEARING,55.58mm ID x 96.84mm OD x 26.26mm W

1шт.

21

222015

WASHER,55.42mm ID x 82.55mm OD x 3.96mm Thk

Keyed

1шт.

22

222007

LOCK NUT

2шт.

23

37426

LOCK WASHER,Bearing, W-11

External Tooth

1шт.

24

37382

COVER

End

1шт.

25

37708

COVER

1шт.

26

80681

LOCK WASHER,5/16"

4шт.

27

81849

DOWEL,1/2" x 1 1/2"

Pin

1шт.

28

81844

DOWEL,9.53mm OD x 38.1mm L

2шт.

29

87974

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 5

3шт.

30

87872

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

12шт.

31

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

12шт.

32

9821757

PLUG

Pipe

1шт.

33

263136

MAGNETIC PLUG,Sq. Soc, 3/4"-14 NPTF

PLUG, MAGNETIC Pipe

1шт.

34

80441

SET SCREW,3/8" - 16 x 1/2"

Cup Pt

3шт.

35

87872

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

36

87415

LUBE NIPPLE,90 Degree, 1/4" NPT x 3/4" L, Drive

1шт.

37

80679

LOCK WASHER,1/20.507 CST ZND

20шт.

38

87670

BOLT,1/2" - 13 x 1-1/4", Full Thd, Gr 5

12шт.

39

81547

LOCK WASHER,7/16"

6шт.

40

9637916

BOLT,Hex, 7/16" - 14 x 1 1/2", Gr 5

6шт.

41

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

42

80680

LOCK WASHER,3/8 0.381 CST ZND

4шт.

43

9707516

BOLT,1/2"-13 x 1-3/4", Cl 5

5шт.
