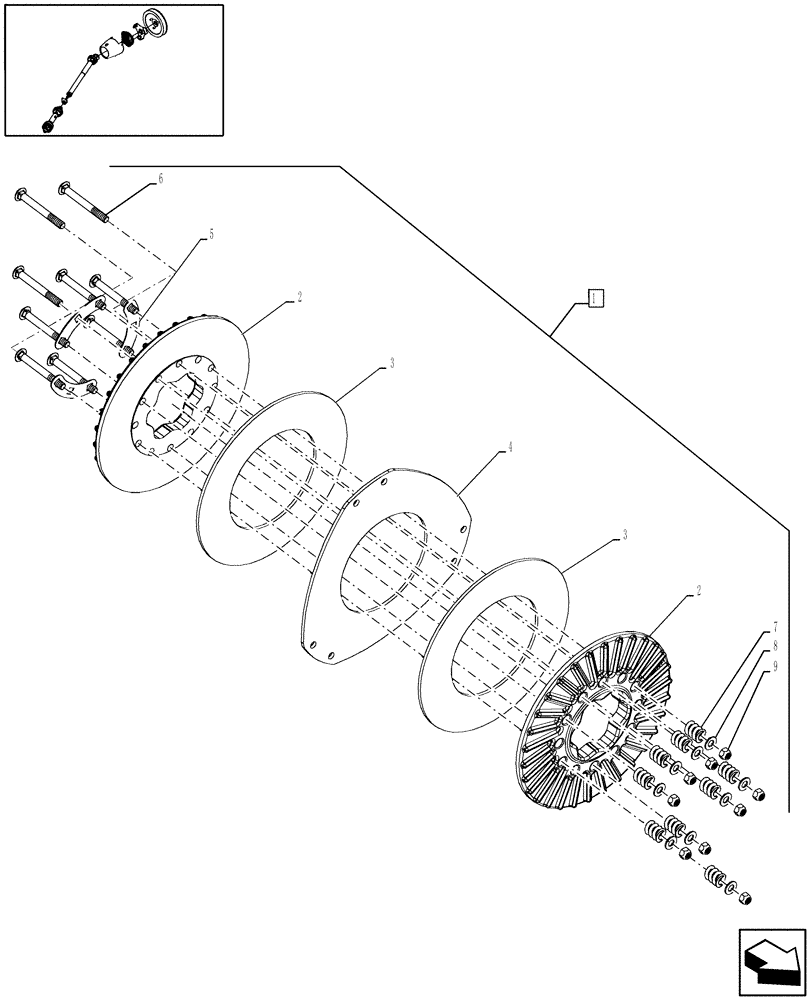

Запчасти Case IH SB551 (31.201.07) - POWER TAKE OFF, CLUTCH PACK (31) - IMPLEMENT POWER TAKE OFF

1

87757069

CLUTCH PACK

1шт.

2

NSS

NOT SOLD SEPARAT

Pressure Plate

2шт.

3

87757067

CLUTCH PLATE,162.56mm ID x 279.15mm OD x 4.76mm Thk

Friction Disc

2шт.

4

87758281

CLUTCH PLATE,162.56mm ID x 330.2mm OD x 4.78mm Thk

Separator Plate

1шт.

5

84164756

SIDE PLATE

Keeper

3шт.

6

280348

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3 1/2", Gr 5

6шт.

7

87757066

COIL SPRING

6шт.

8

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

6шт.

9

9637692

NUT,3/8"-16, GB

6шт.
