(31.201.06) - POWER TAKE OFF, OVERRUNNING CLUTCH

Запчасти Case IH SB551 (31.201.06) - POWER TAKE OFF, OVERRUNNING CLUTCH (31) - IMPLEMENT POWER TAKE OFF

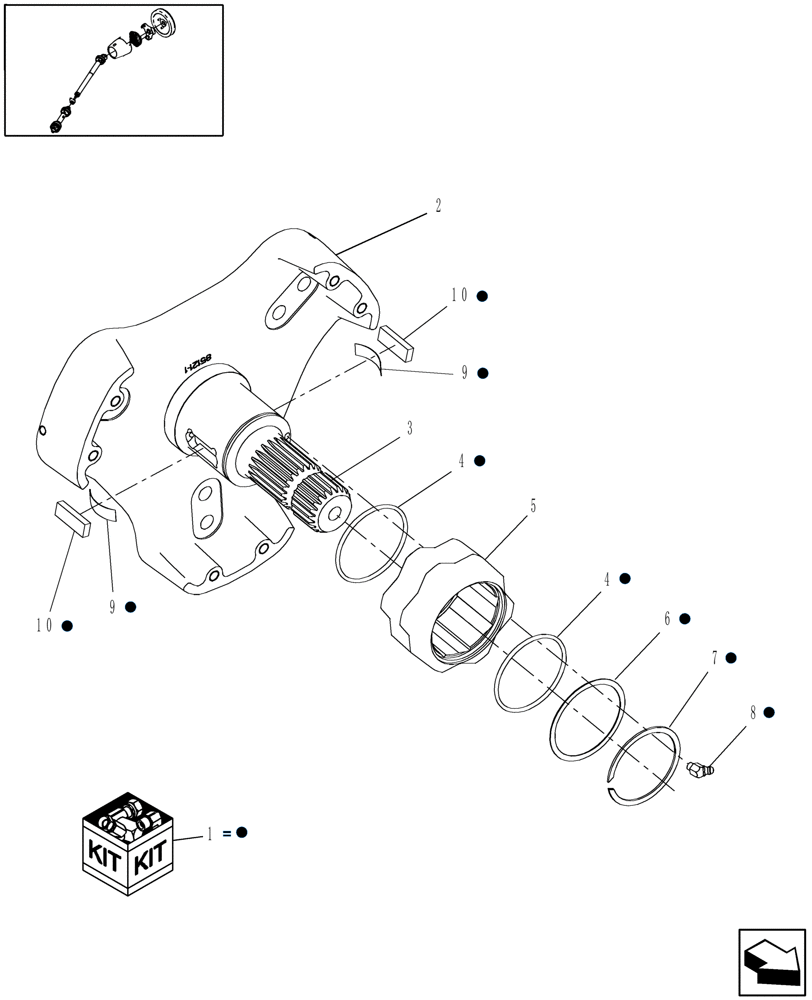

Схема запчастей Case IH SB551 - (31.201.06) - POWER TAKE OFF, OVERRUNNING CLUTCH (31) - IMPLEMENT POWER TAKE OFF
10
7
3
2
10
6
8
5
9
4
9
4
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87757089

CLUTCH OVERHAUL KIT

Overrunning Clutch Repair Kit, Includes: Ref. 4 & 6 -10

1шт.

2

NSS

NOT SOLD SEPARAT

Flange

1шт.

Included with Clutch, See Fig. 31.201.05

1шт.

3

NSS

NOT SOLD SEPARAT

Inner Hub

1шт.

Included with Clutch, See Fig. 31.201.05

1шт.

4

NSS

NOT SOLD SEPARAT

O-Ring

2шт.

5

NSS

NOT SOLD SEPARAT

Outer Housing

1шт.

Included with Clutch, See Fig. 31.201.05

1шт.

6

NSS

NOT SOLD SEPARAT

Washer

1шт.

7

NSS

NOT SOLD SEPARAT

Retaining Ring

1шт.

8

NSS

NOT SOLD SEPARAT

Lube Fitting

1шт.

9

NSS

NOT SOLD SEPARAT

Leaf Spring

2шт.

10

NSS

NOT SOLD SEPARAT

Overrunning Key

2шт.
