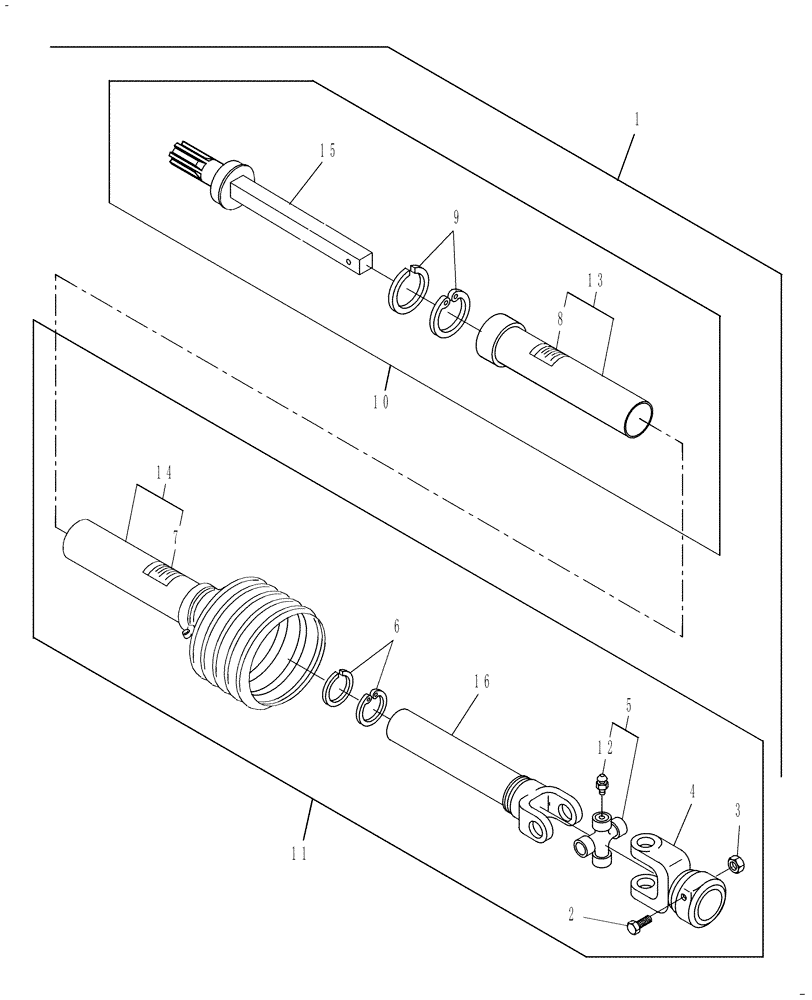

Запчасти Case IH SB551 (31.201.03) - POWER TAKE OFF, REAR (31) - IMPLEMENT POWER TAKE OFF

1

0C

ORDER COMPONENTS

PTO, Rear

1шт.

87399498

1шт.

2

280335

BOLT,Hex, 5/8" - 18 x 3", Gr 8

1шт.

3

87343995

NUT

1шт.

4

87757082

CLAMP

1шт.

5

86520873

BEARING ASSY

Cross & Bearing Kit

1шт.

6

87050379

REPAIR KIT

Nylon

1шт.

7

849471

DANGER DECAL

English, Included with Ref. 1

1шт.

7

849482

DANGER DECAL

French

1шт.

Locate Decal Adjacent to English Decal Where Possible. Install Decal Over English Decal Where Necessary.

1шт.

7

9801260

DANGER DECAL

Spanish

1шт.

Locate Decal Adjacent to English Decal Where Possible. Install Decal Over English Decal Where Necessary.

1шт.

8

849472

DANGER DECAL

English, Included with Ref. 1

1шт.

8

849483

DANGER DECAL

French

1шт.

Locate Decal Adjacent to English Decal Where Possible. Install Decal Over English Decal Where Necessary.

1шт.

8

9801256

DANGER DECAL

Spanish

1шт.

Locate Decal Adjacent to English Decal Where Possible. Install Decal Over English Decal Where Necessary.

1шт.

9

86505713

NYLON BEARING

Nylon

1шт.

10

87757087

TUBE,PTP Shaft

Tube Half

1шт.

11

87757088

PTO SHAFT

1шт.

12

80714

LUBE NIPPLE,1/4"-28 NPT x .54" lg

1шт.

13

NSS

NOT SOLD SEPARAT

Guard, Inner

1шт.

14

NSS

NOT SOLD SEPARAT

Guard, Outer

1шт.

15

NSS

NOT SOLD SEPARAT

Shaft

1шт.

16

NSS

NOT SOLD SEPARAT

Tube & Yoke

1шт.

17

84134285

PTO

Guard Set, Includes: Ref. 13 & 14

1шт.
