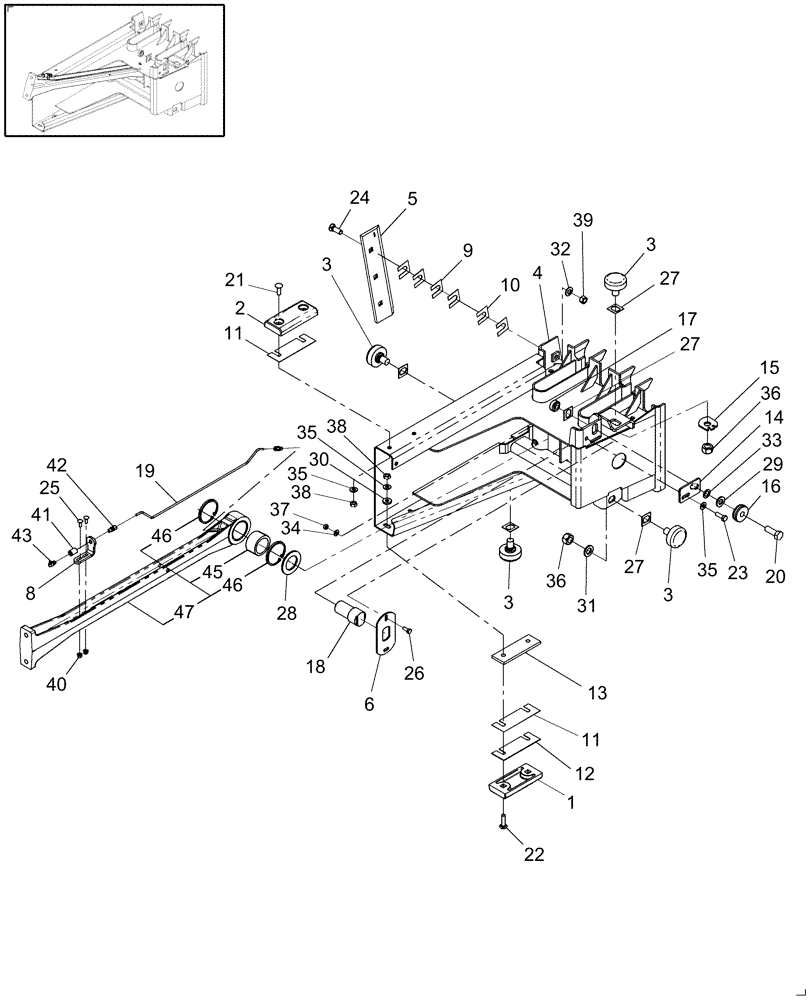

Запчасти Case IH SB541C (62.150.02[3]) - PLUNGER, SB541C (62) - PRESSING - BALE FORMATION

1

84134309

BALE PLUNGER

Slide, Lower

1шт.

2

848530

GUIDE

1шт.

3

688282

BALL BEARING,0.748" ID x 63.5 mm OD x 22.6 mm

4шт.

4

87044838

PLUNGER

1шт.

5

625972

KNIFE,342.9mm L x 76.99mm W x 9.13mm Thk

Slicing

1шт.

6

848531

PLATE

1шт.

7

87608478

ROD

Connecting, Includes: Ref. 45, 46 & 47

1шт.

8

84129651

MOUNT

1шт.

9

686877

SHIM,.024" Thk

12шт.

10

686876

SHIM,.010" Thk

6шт.

11

848533

SHIM,0.8mm Thk

2шт.

12

848534

SHIM,1.5mm Thk

1шт.

13

848536

SPACER

1шт.

14

9824600

CAM

1шт.

15

691326

CAM

1шт.

16

165484

BALL BEARING,15.94mm ID x 50.8mm OD x 15mm W

1шт.

17

284620

BEARING LOCK NUT

1шт.

18

848535

PIN,45mm OD x 91mm L

1шт.

19

84131759

LINE

1шт.

20

9627896

BOLT,Hex, 5/8" - 11 x 1 3/4", Gr 5

1шт.

21

86512446

CARRIAGE BOLT,M10 x 1.5 x 30mm, Cl 8.8

2шт.

22

374892

CARRIAGE BOLT,M10 x 1.5 x 40mm, Cl 8.8

2шт.

23

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

1шт.

24

280320

PLOW BOLT,#3, 1/2" - 13 x 1 1/2", Gr 5, Full Thd

3шт.

25

88832

CARRIAGE BOLT,Sq Nk, 1/4" - 20 x 3/4", Gr 5, Full Thd

2шт.

26

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.

27

86629517

WASHER

5шт.

28

84814169

WASHER,46mm ID x 75mm OD x 4mm Thk

1шт.

29

27367

WASHER,16.67mm ID x 31.75mm OD x 3.43mm Thk

1шт.

30

35097

WASHER,10.3mm ID x 25.4mm OD x 5mm Thk

2шт.

31

NLS

NO LONGER SERVICED

3шт.

32

86513238

LOCK WASHER,.515” ID x 1.070” OD x .120” TK

3шт.

33

86977690

LOCK WASHER,Ext Tooth, 5/8"

1шт.

34

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

2шт.

35

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

5шт.

36

86547668

LOCK NUT,3/4" - 16, GB

4шт.

37

9706690

NUT,M8 x 1.25, Cl 8

2шт.

38

100016

NUT,M10 x 1.5, Cl 8

4шт.

39

280431

NUT,1/2"-13, G5

3шт.

40

9626558

FLANGE NUT,Flg, 1/4"-20

2шт.

41

91932

COUPLING,1/8" - 27 NPT x 1/8" - 27 NPT

1/8" NPT

1шт.

42

11787

FITTING,3/8"-24 Fem x 1/8" NPT

2шт.

43

80719

LUBE NIPPLE,1/8" NPT

1шт.

44

263117

CABLE TIE,292.1mm L, Nylon, Black

CABLE STRAP

1шт.

45

848532

SPHERICAL BEARING,38.09mm ID x 61.91mm OD x 33.3mm W

1шт.

46

370012

RING,M62, Internal

2шт.

47

87608478

ROD

Connecting

1шт.
