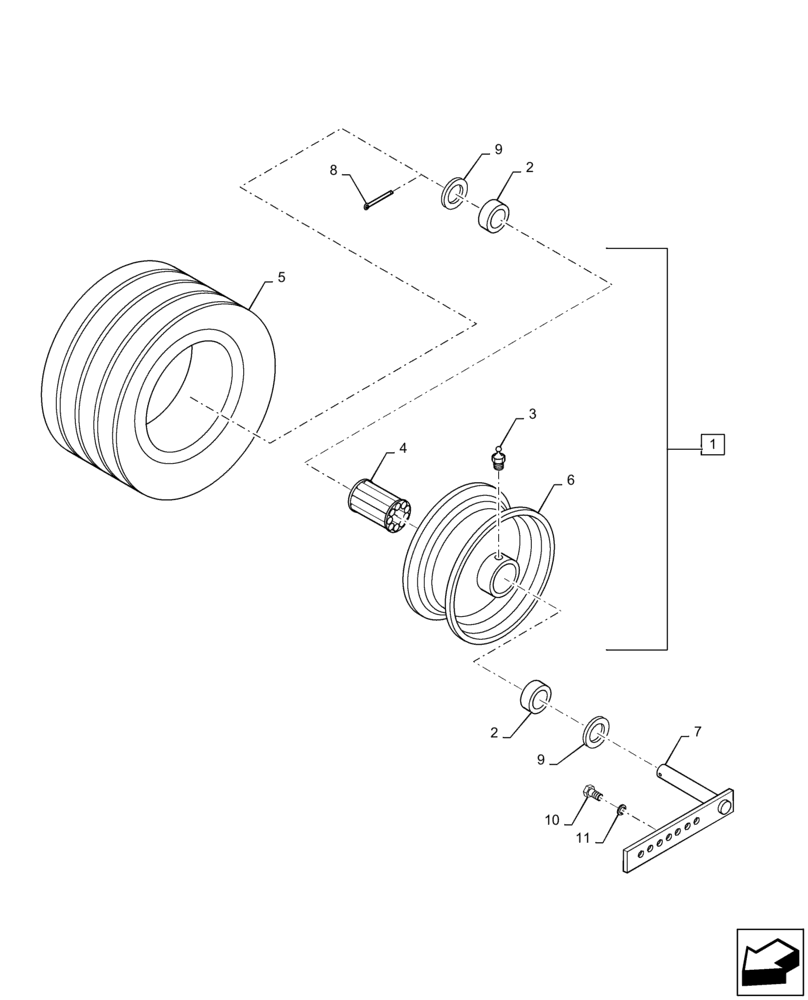

Запчасти Case IH SB541C (44.511.04) - PICKUP TIRE (SOLID) & WHEEL (44) - WHEELS

1

87577853

LAND WHEEL

1шт.

2

87578241

BUSHING,19.56mm ID x 38.1mm OD x 15.88mm L

2шт.

3

87569

LUBE NIPPLE,45 Degree, 1/4" NPT x 4/5" L, Drive

1шт.

4

87578236

ROLLER BEARING

1шт.

5

NSS

NOT SOLD SEPARAT

Tire, 12" x 3" Rib Solid

1шт.

6

NSS

NOT SOLD SEPARAT

Wheel

1шт.

7

86629568

BRACKET

1шт.

8

87398

COTTER PIN,3/16" OD x 1-1/4" OAL

1шт.

9

87381

WASHER,0.81" ID x 1.47" OD x 0.13" Thk

2шт.

10

43168

BOLT,Hex, M16 x 40mm, Cl 8.8

2шт.

11

140048

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 2.8mm Thk

2шт.
