(35.550.23) - HYDRAULIC CYLINDER, SIDE RAILS, SB541C

Запчасти Case IH SB541C (35.550.23) - HYDRAULIC CYLINDER, SIDE RAILS, SB541C (35) - HYDRAULIC SYSTEMS

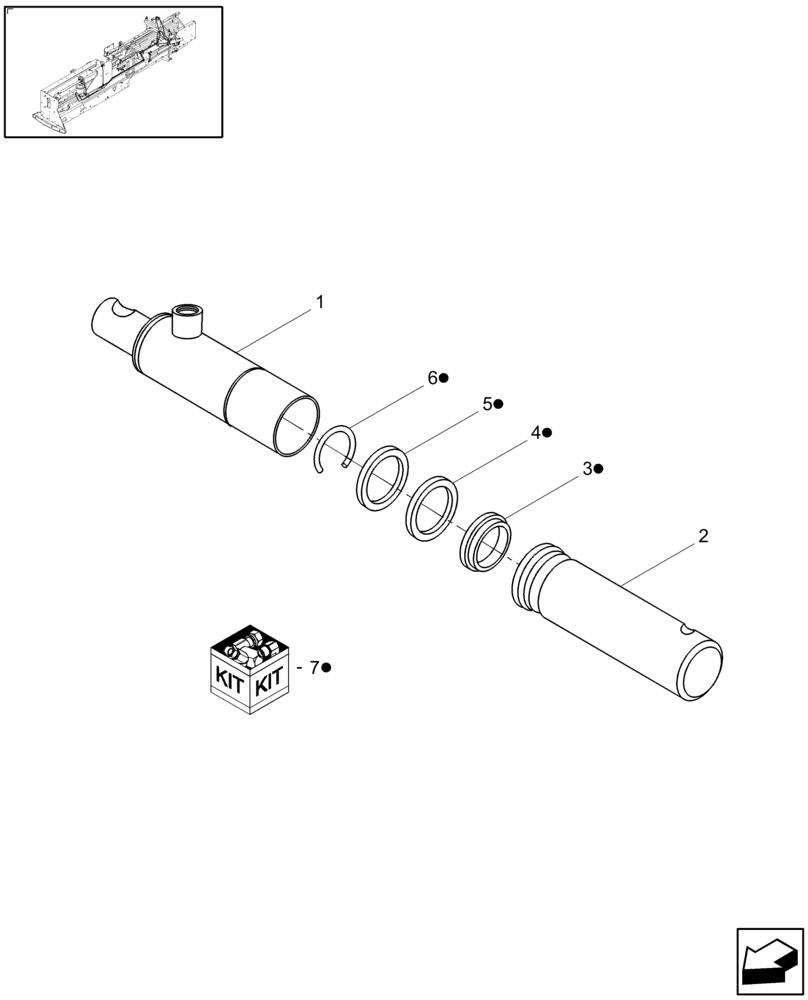

Схема запчастей Case IH SB541C - (35.550.23) - HYDRAULIC CYLINDER, SIDE RAILS, SB541C (35) - HYDRAULIC SYSTEMS
6
1
2
4
5
7
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87637946

HYDRAULIC CYLINDER,50.8mm Rod, 76.2mm Stroke

Hydraulic, Side Doors, SB541C, Incl 2 - 6

1шт.

2

84134275

ROD

1шт.

3

NSS

NOT SOLD SEPARAT

Rod Wipe Seal, Incl in 1, 7

1шт.

4

NSS

NOT SOLD SEPARAT

Rod Seal, Incl in 1, 7

1шт.

5

NSS

NOT SOLD SEPARAT

Wear Ring, Incl in 1, 7

1шт.

6

NSS

NOT SOLD SEPARAT

Retaining Ring, Incl in 1, 7

1шт.

7

84134274

SEAL KIT

Includes: Ref. 3 - 6

1шт.
