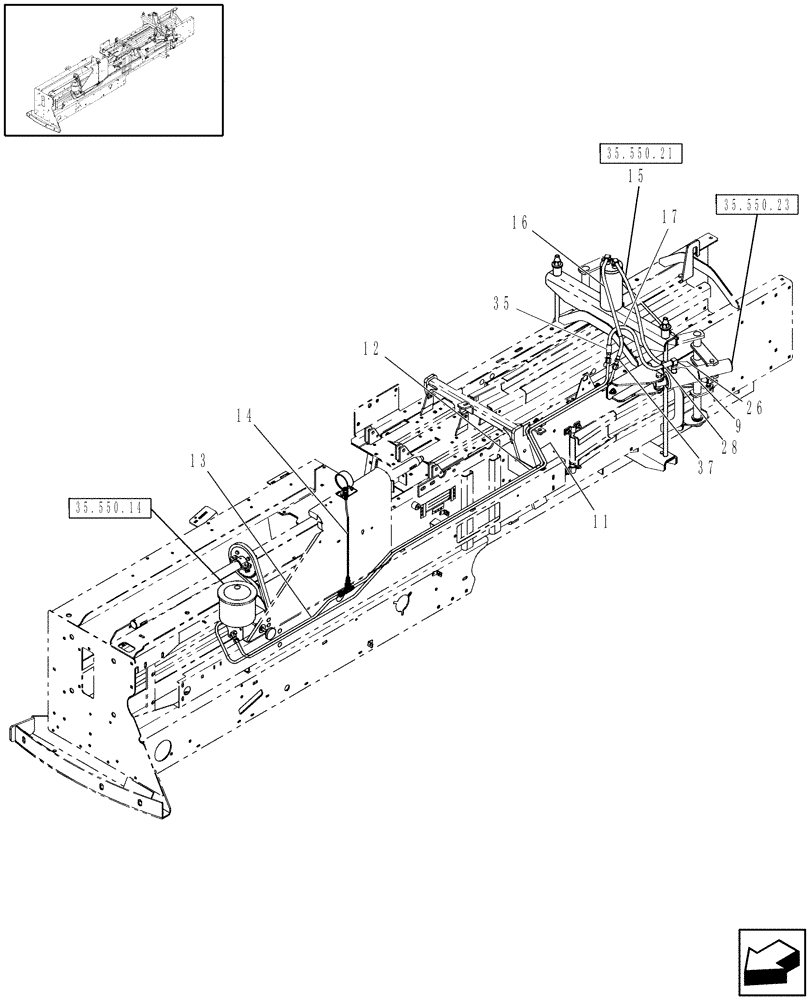

Запчасти Case IH SB541C (35.550.20) - HYDRAULIC BALE TENSION, SC541C (35) - HYDRAULIC SYSTEMS

9

126786

ADAPTER

3шт.

11

87643023

HYD TUBE,9.52 mm OD x 2212.4, 190 mm L

1шт.

12

87643024

HYD TUBE,9.52 mm OD x 1619.2, 222 mm L

1шт.

13

87643025

HYD TUBE

1шт.

14

87643026

HYD TUBE

1шт.

15

86550672

FLEXIBLE HOSE

1шт.

16

237732

HYDRAULIC HOSE,0.25" ID x 24.00"

1шт.

17

511404

FLEXIBLE HOSE

1шт.

26

87752071

ELBOW

90° 1/4"-18 NPTF

1шт.

28

86627339

HYD CONNECTOR

Tee -04 Female NPTF

1шт.

29

87052301

HYD CONNECTOR

1шт.

Use with Ref. 28. Not Shown.

1шт.

35

217-1101

HYD CONNECTOR,1/4"-18 NPTF, Female

Pipe

1шт.

37

9706918

HYD CONNECTOR,9/16" - 18 JIC x 1/4" - 18 NPT

2шт.
