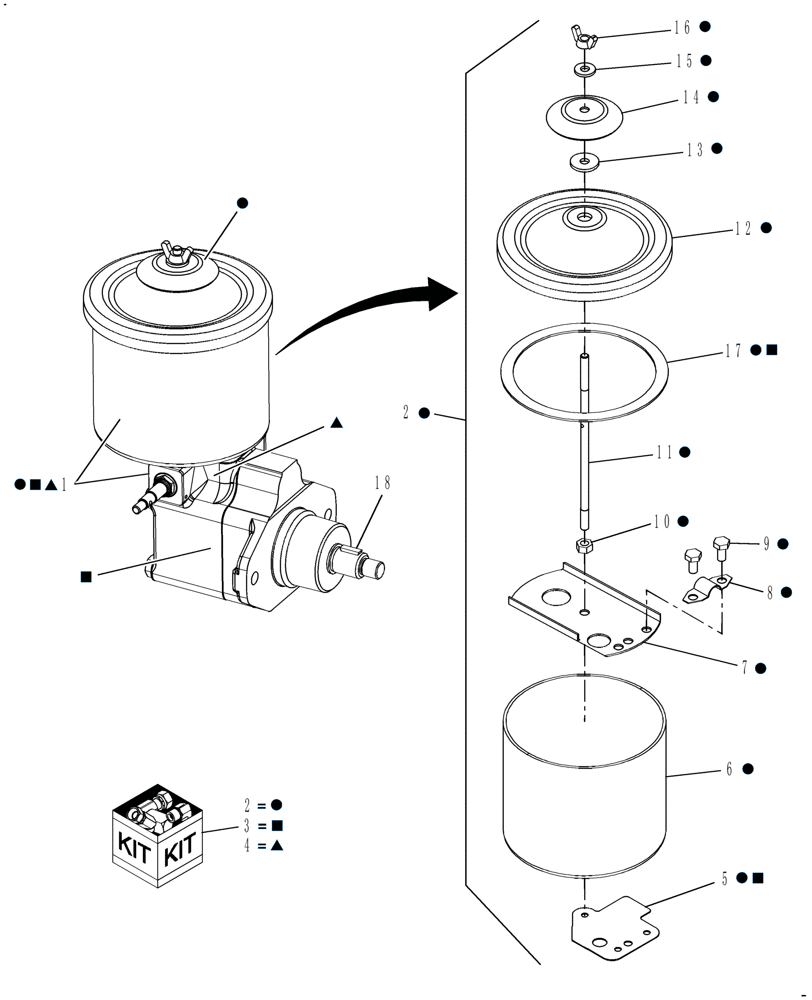

Запчасти Case IH SB541C (35.550.13) - HYDRAULIC BALE TENSION OIL PUMP (35) - HYDRAULIC SYSTEMS

1

86640940

HYDRAULIC PUMP,3.93 CC

Bale Tension

1шт.

86640940R

REMAN-HYD PUMP

SB531, SB541, SB541C,

1шт.

86640940C

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

84293637

RESERVOIR, HYDRAULIC

1шт.

3

84306042

SEAL KIT

Includes: (7) Gaskets & Seals

1шт.

Components are N.S.S

1шт.

4

84306043

HYDRAULIC VALVE

Includes: (1) Ring, (1) Rotor & (12) Vanes

1шт.

This kit only services a 12 Vane Pump Only. This kit WILL NOT service a 10 Vane Pump

1шт.

5

NSS

NOT SOLD SEPARAT

Gasket

1шт.

6

NSS

NOT SOLD SEPARAT

Tank

1шт.

7

NSS

NOT SOLD SEPARAT

Plate

1шт.

8

NSS

NOT SOLD SEPARAT

1шт.

9

88542

BOLT,Hex, 1/4"-20 x 1/2", Gr 5

2шт.

10

86517505

NUT,1/4"-20, G5

1шт.

11

NSS

NOT SOLD SEPARAT

Stud

1шт.

12

NSS

NOT SOLD SEPARAT

Cover

1шт.

13

NSS

NOT SOLD SEPARAT

1шт.

14

NSS

NOT SOLD SEPARAT

1шт.

15

87361

WASHER,0.28" ID x 0.62" OD x 0.07" Thk

1шт.

16

86627130

WING NUT,1/4"-20

1шт.

17

NSS

NOT SOLD SEPARAT

Gasket

1шт.

18

88406

WOODRUFF KEY,#61, 3/16" x 5/8"

1шт.
