Запчасти Case IH SB541C (90.108.01) - DECALS, NORTH AMERICA (90) - PLATFORM, CAB, BODYWORK AND DECALS

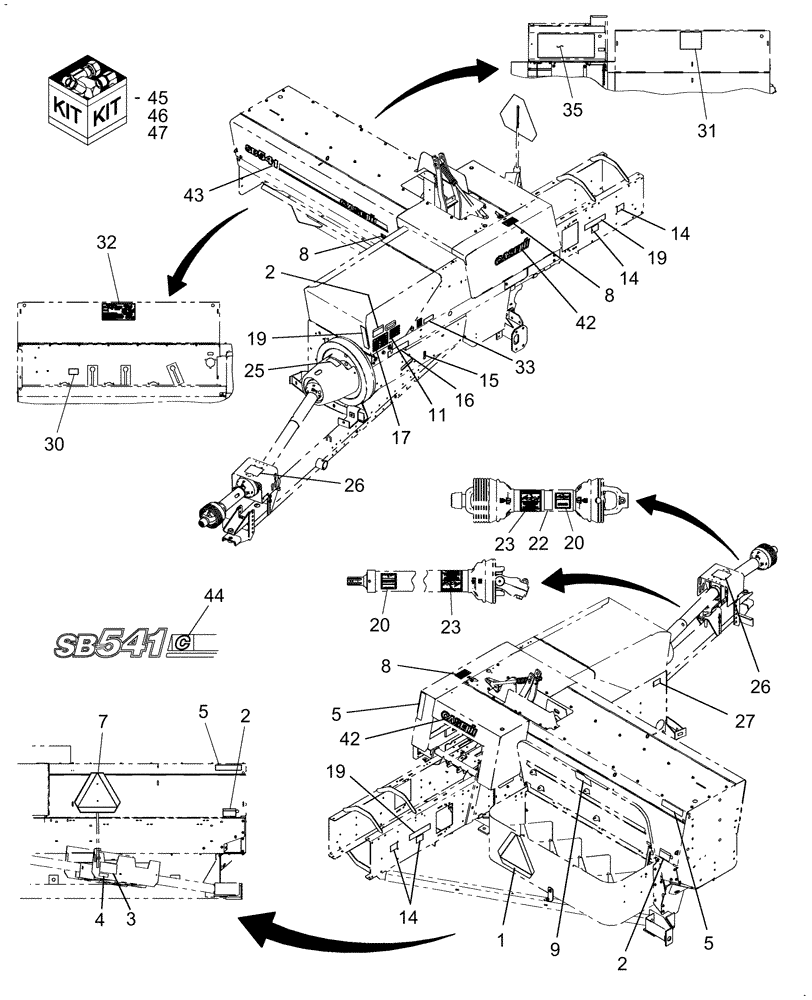

Схема запчастей Case IH SB541C - (90.108.01) - DECALS, NORTH AMERICA (90) - PLATFORM, CAB, BODYWORK AND DECALS
26
20
8
2
25
42
8
19
2
14
42
35
5
33
44
46
3
19
27
30
8
1
23
14
19
20
43
22
14
9
23
45
4
11
17
32
2
31
5
26
16
15
7
47
5

Артикул

Название

Примечание

Количество

1

86547711

DECAL,SMV

SMV, Used on Twine Units

1шт.

2

86629205

WARNING DECAL

English

2шт.

2

86630249

WARNING SIGN

French

2шт.

3

786531

DECAL

Wire Threading

1шт.

4

705747

DECAL

Wire ASAE Standard

1шт.

5

86547781

REFLECTOR,RED

Red Retroreflective

2шт.

7

86547710

EMBLEM

KIT SMV, Used on Wire Units

1шт.

8

86626958

WARNING DECAL

English

1шт.

8

86626961

WARNING DECAL

French

1шт.

9

86547723

DECAL

Twine Threading

1шт.

SB531

1шт.

9

84134297

DECAL

Twine Threading

1шт.

SB541

1шт.

9

84134297

DECAL

Twine Threading

1шт.

SB541C Only

1шт.

11

87041060

WARNING DECAL

Transport/Roading, English

1шт.

11

87042011

WARNING DECAL

Transport/Roading, French

1шт.

14

86630717

WARNING DECAL

English

2шт.

14

86630250

WARNING DECAL

French

2шт.

15

165109

DECAL

Lube Fitting

3шт.

16

86605188

DECAL

ATTENTION, Timing & Hypoid Oil

1шт.

17

86622073

WARNING DECAL

English

1шт.

17

86622074

WARNING DECAL

French

1шт.

19

86547782

REFLECTOR,YELLOW

Yellow, Retroreflective

3шт.

20

849472

DANGER DECAL

English

2шт.

20

849483

DANGER DECAL

French

2шт.

22

87041061

WARNING DECAL

English

1шт.

22

87042013

DECAL

WARNING, French

1шт.

23

849471

DANGER DECAL

English

2шт.

23

849482

DANGER DECAL

French

2шт.

24

87758276

DECAL

Hydraulic Bale Tension

1шт.

Not Illustrated

1шт.

25

221252

DECAL

INSTRUCTION, PTO

2шт.

26

708659

DECAL

WARNING, PTO

1шт.

27

NS

NOT SERVICED

Model ID Plate

1шт.

30

NS

NOT SERVICED

DECAL, "Do Not Store Twine or Wire in this Area".

1шт.

242957

1шт.

32

9804078

DECAL

Rotor Timing

1шт.

33

NS

NOT SERVICED

DECAL, Hydraulic Pump Instructions

1шт.

635935

1шт.

35

87017126

DECAL

Knotter Adjustment

1шт.

42

87622972

DECAL

CIH Logo

2шт.

43

87749913

DECAL

SB531

1шт.

43

87749914

DECAL

SB541

1шт.

44

84134246

DECAL

C

1шт.

SB541C Only

1шт.

45

84131747

DECAL KIT

SB531, Includes: English Ref. 1-5, 7-9, 11, 14-17, 19, 20, 22-26, 30, 32, 33, 35, 42, 43 & Decal Placement Guide

1шт.

45

84131751

DECAL KIT

SB541, Includes: English Ref. 1-5, 7-9, 11, 14-17, 19, 20, 22-26, 30, 32, 33, 35, 42, 43 & Decal Placement Guide

1шт.

45

84134247

DECAL KIT

SB541C, Includes: English Ref. 1-3, 5, 7-9, 11, 14-17, 19, 20, 22-26, 30, 32, 33, 35, 42, 43, 44 & Decal Placement Guide

1шт.

46

84134259

DECAL KIT

French, Includes: French Ref. 2, 4, 8, 11, 14, 17, 17, 20, 22, 23, 26, 30, 32 & 33

1шт.

47

84134265

DECAL KIT

Spanish, Includes: Spanish Ref. 2, 4, 8, 11, 14, 17, 17, 20, 22, 23, 26, 30, 32 & 33

1шт.

Выбрано товаров: 51
