Запчасти Case IH SB541 (68.180.13) - NEEDLE & YOKE, WIRE (68) - TYING/WRAPPING

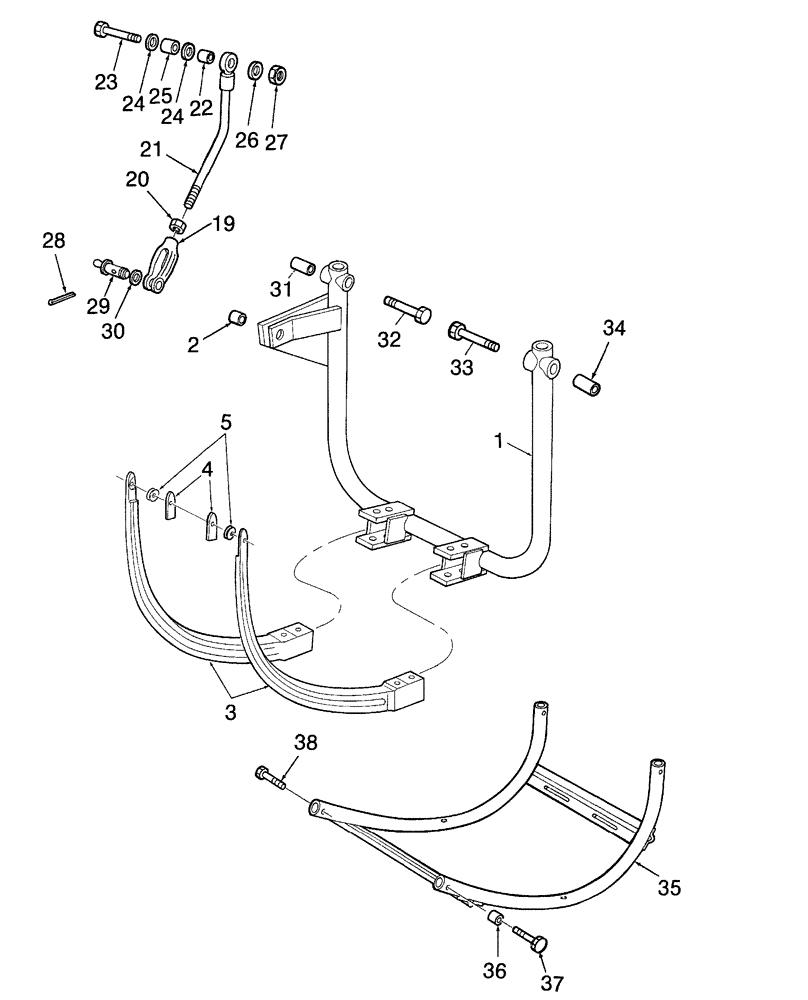

Схема запчастей Case IH SB541 - (68.180.13) - NEEDLE & YOKE, WIRE (68) - TYING/WRAPPING
38
4
27
24
19
21
22
3
29
2
36
1
33
30
31
34
23
5
25
37
32
20
28
26
24
35

Артикул

Название

Примечание

Количество

1

86635615

YOKE

Needle, Includes: Ref. 2

1шт.

2

132452

SPACER

1шт.

3

86977214

NEEDLE

2шт.

814-12090

BOLT,Hex, M12 x 1.75 x 90mm, Cl 8.8

2шт.

86566268

LOCK BOLT,Prev Torque, Hex, M12 x 1.75 x 35mm, Cl 8.8, Full Thd

HH, Self-Locking, CL 8.8, M12 x 1.75 x 35

4шт.

65319

WASHER,13.1mm ID x 25.4mm OD x 3.68mm Thk

6шт.

832-46412

NUT,M12 x 1.75, Cl 8

2шт.

4

128458

NEEDLE

Needle

2шт.

62-42512

HEX SOC SCREW,Flat Hd, 1/4"-28 x 3/4"

4шт.

5

7714660

ROLLER ASSY.

Bearing

2шт.

19

86641516

CLEVIS

1шт.

20

320771

NUT,Thin, M20 x 1.5, Cl 04

1шт.

21

86640956

ADJUSTMENT ROD

Needle Yoke, Includes: Ref. 22

1шт.

219-87

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

22

132447

BUSHING,22.25mm ID x 25.45mm OD x 22mm L

1шт.

23

413-1052

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5

1шт.

24

86516680

WASHER

5/8"

2шт.

25

132449

SPACER

1шт.

26

49637

WASHER,16.5mm ID x 30mm OD x 2.99mm Thk

Special, 5/8"

1шт.

27

85700693

NUT,5/8" - 11, Gr C

1шт.

28

432-816

COTTER PIN,1/8" x 1"

1шт.

29

132469

PIN

1шт.

219-87

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

30

26382

WASHER

21/32" ID x 1-3/32" OD x .060" (16 Gauge) Thick

1шт.

31

848470

SPACER

1шт.

32

433-1072

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 4 1/2", Gr 5

1шт.

832-46416

NUT,M16 x 2, Cl 8

1шт.

33

433-1096

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 6", Gr 5

1шт.

34

848469

SPACER

1шт.

35

86635473

GUARD

Needle

1шт.

814-10050

BOLT,Hex, M10 x 1.5 x 50mm, Cl 8.8

2шт.

145788

WASHER,10.32mm ID x 22.23mm OD x 3.5mm Thk

Hardened, 3/8"

2шт.

832-46410

NUT,M10 x 1.5, Cl 8

2шт.

36

86610677

SPACER,10.3mm ID X 19.05mm OD X 14.3mm L

1шт.

37

814-10060

BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8

1шт.

435-1828

GROOVED PIN,1/4" x 1 3/4", Type A

1шт.

832-46410

NUT,M10 x 1.5, Cl 8

1шт.

37

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

1шт.

435-1828

GROOVED PIN,1/4" x 1 3/4", Type A

1шт.

232-4146

NUT,3/8"-16, GC

1шт.

38

413-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

1шт.

435-1828

GROOVED PIN,1/4" x 1 3/4", Type A

1шт.

232-4146

NUT,3/8"-16, GC

1шт.

Выбрано товаров: 43
