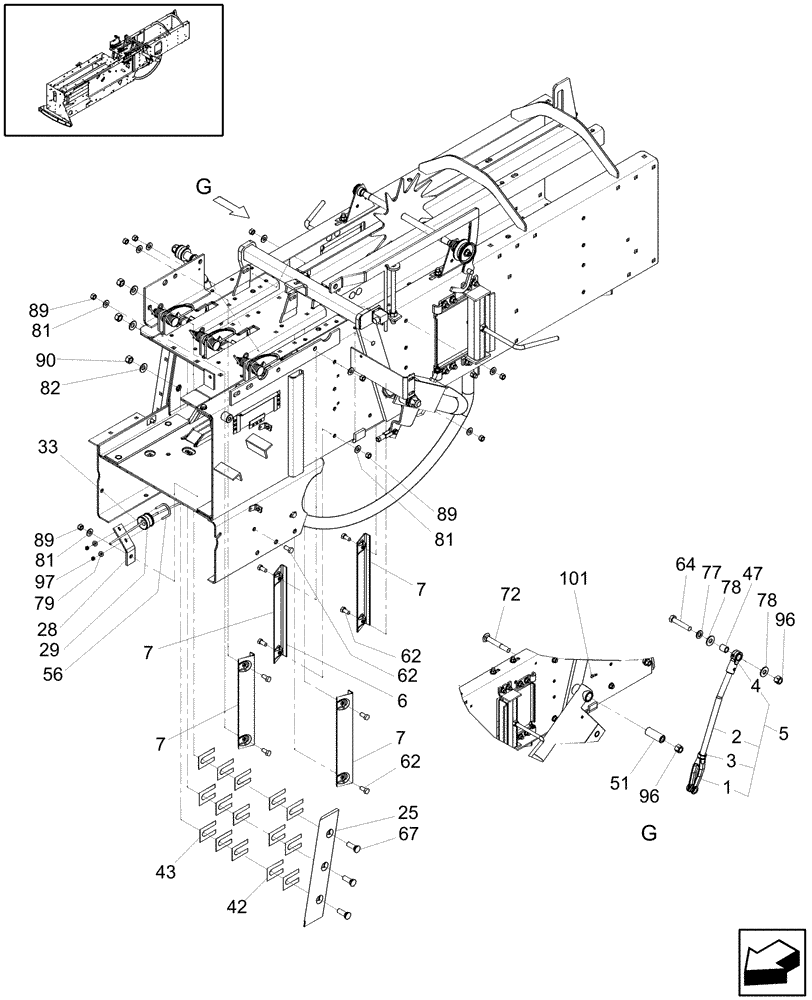

Запчасти Case IH SB541 (62.150.03[2]) - STATIONARY KNIFE, NEEDLE YOKE ROD & HAY WEDGES, SB541 (62) - PRESSING - BALE FORMATION

1

9604514

CLEVIS

1шт.

2

848472

ADJUSTMENT ROD

Needle Yoke

1шт.

3

320771

NUT,Thin, M20 x 1.5, Cl 04

1шт.

4

87414

LUBE NIPPLE,1/4" - 28

1шт.

5

0C

ORDER COMPONENTS

Needle Yoke Adjustment Rod

1шт.

6

86626431

STOP

Hay

2шт.

7

32124

STOP

Hay

2шт.

18

848541

SIDE RAIL

1шт.

25

625972

KNIFE,342.9mm L x 76.99mm W x 9.13mm Thk

Stationary

1шт.

28

848783

SUPPORT

1шт.

29

86543545

GUIDE

1шт.

33

848939

CABLE,1355mm L

1шт.

42

67510

SHIM,0.254mm Thk

(.010" Thk)

6шт.

43

67606

SHIM,0.6mm Thk

(.024")

9шт.

47

132449

SPACER

1шт.

51

848470

SPACER

1шт.

56

28114

U-BOLT

1шт.

62

88434

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

9шт.

64

9827853

BOLT,Hex, 5/8" - 11 x 3 1/4", Gr 5

1шт.

67

280320

PLOW BOLT,#3, 1/2" - 13 x 1 1/2", Gr 5, Full Thd

3шт.

72

9602207

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 4 1/2", Gr 5

1шт.

77

49637

WASHER,16.5mm ID x 30mm OD x 2.99mm Thk

1шт.

78

86516680

WASHER

2шт.

79

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

2шт.

81

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

9шт.

82

86513238

LOCK WASHER,.515” ID x 1.070” OD x .120” TK

3шт.

89

9628503

NUT,3/8"-16, G5

9шт.

90

280431

NUT,1/2"-13, G5

3шт.

96

19670

NUT,5/8"-11, GB

2шт.

97

87304

NUT,#10-24

2шт.

101

87569

LUBE NIPPLE,45 Degree, 1/4" NPT x 4/5" L, Drive

2шт.
