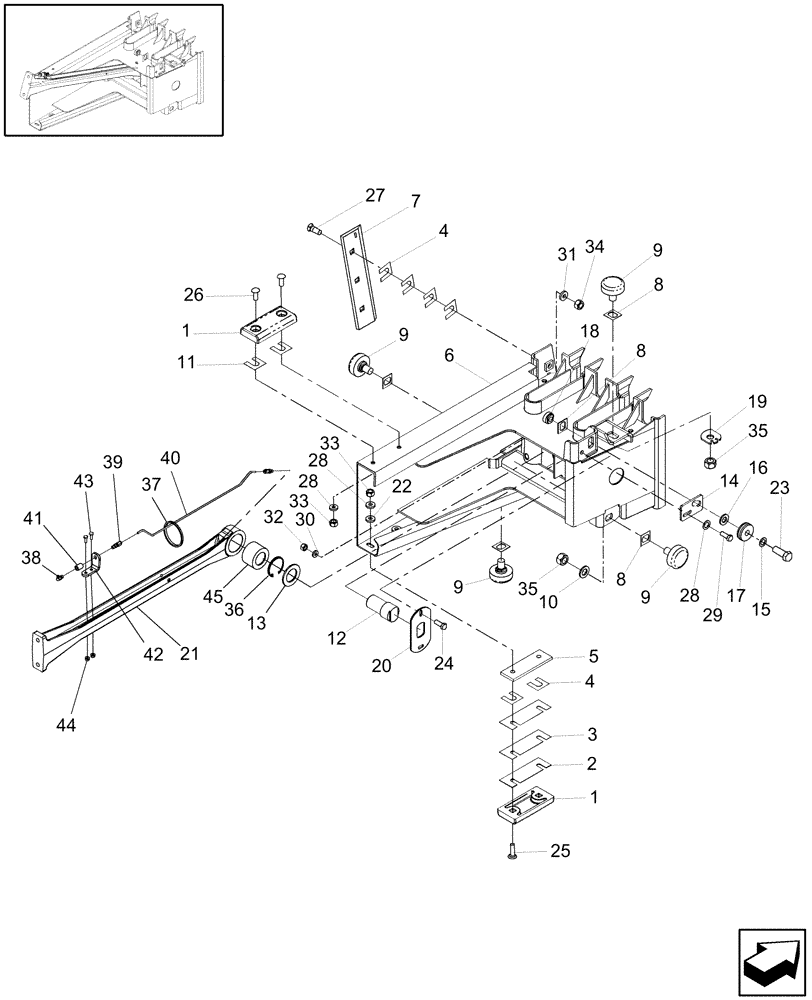

Запчасти Case IH SB541 (62.150.02[2]) - PLUNGER, SB541 (62) - PRESSING - BALE FORMATION

1

848530

GUIDE

2шт.

2

848534

SHIM,1.5mm Thk

1шт.

3

848533

SHIM,0.8mm Thk

2шт.

4

686876

SHIM,.010" Thk

14шт.

5

848536

SPACER

1шт.

6

87044838

PLUNGER

1шт.

7

625972

KNIFE,342.9mm L x 76.99mm W x 9.13mm Thk

1шт.

8

86629517

WASHER

5шт.

9

688282

BALL BEARING,0.748" ID x 63.5 mm OD x 22.6 mm

4шт.

10

NLS

NO LONGER SERVICED

3шт.

11

686877

SHIM,.024" Thk

2шт.

12

848535

PIN,45mm OD x 91mm L

1шт.

13

84814169

WASHER,46mm ID x 75mm OD x 4mm Thk

1шт.

14

9824600

CAM

1шт.

15

86977690

LOCK WASHER,Ext Tooth, 5/8"

1шт.

16

27367

WASHER,16.67mm ID x 31.75mm OD x 3.43mm Thk

1шт.

17

165484

BALL BEARING,15.94mm ID x 50.8mm OD x 15mm W

1шт.

18

284620

BEARING LOCK NUT

1шт.

19

691326

CAM

1шт.

20

848531

PLATE

1шт.

21

87588951

ROD

Connecting

1шт.

22

35097

WASHER,10.3mm ID x 25.4mm OD x 5mm Thk

2шт.

23

9627896

BOLT,Hex, 5/8" - 11 x 1 3/4", Gr 5

1шт.

24

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.

25

374892

CARRIAGE BOLT,M10 x 1.5 x 40mm, Cl 8.8

2шт.

26

86512446

CARRIAGE BOLT,M10 x 1.5 x 30mm, Cl 8.8

2шт.

27

280320

PLOW BOLT,#3, 1/2" - 13 x 1 1/2", Gr 5, Full Thd

3шт.

28

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

5шт.

29

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

1шт.

30

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

2шт.

31

86513238

LOCK WASHER,.515” ID x 1.070” OD x .120” TK

3шт.

32

9706690

NUT,M8 x 1.25, Cl 8

2шт.

33

100016

NUT,M10 x 1.5, Cl 8

4шт.

34

280431

NUT,1/2"-13, G5

3шт.

35

86547668

LOCK NUT,3/4" - 16, GB

4шт.

36

370012

RING,M62, Internal

2шт.

37

263117

CABLE TIE,292.1mm L, Nylon, Black

CABLE STRAP

1шт.

38

80719

LUBE NIPPLE,1/8" NPT

1шт.

39

11787

FITTING,3/8"-24 Fem x 1/8" NPT

1шт.

40

84131759

LINE

Grease

1шт.

41

91932

COUPLING,1/8" - 27 NPT x 1/8" - 27 NPT

1/8" NPT

1шт.

42

84129651

MOUNT

1шт.

43

9707580

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

2шт.

44

9626558

FLANGE NUT,Flg, 1/4"-20

2шт.

45

848532

SPHERICAL BEARING,38.09mm ID x 61.91mm OD x 33.3mm W

1шт.
