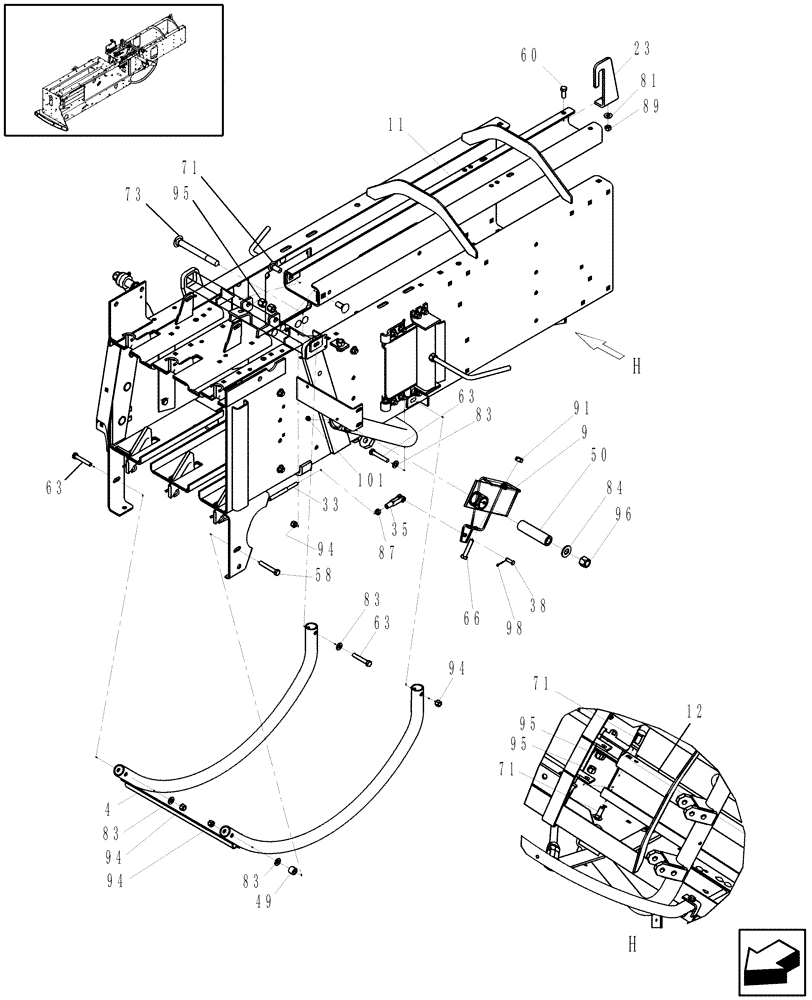

Запчасти Case IH SB541 (62.140.03[2]) - BALE TENSION RAIL & NEEDLE YOKE GUARD, SB541 (62) - PRESSING - BALE FORMATION

4

848471

NEEDLE

Guard

1шт.

9

848465

ARM

Needle Yoke

1шт.

11

87662563

RAIL ASSY.

Upper

1шт.

12

87662567

RAIL ASSY.

Lower

1шт.

23

86626034

HOOK

1шт.

33

848939

CABLE,1355mm L

1шт.

35

86629512

YOKE,5/16" - 24

Adjustable

1шт.

38

200731

CLEVIS PIN,7.9mm OD x 26.72mm L

1шт.

49

698872

SPACER

1шт.

50

848469

SPACER

1шт.

58

87936

BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 5

1шт.

60

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

63

88546

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 5

2шт.

66

120113

BOLT,Hex, M10 x 1.5 x 50mm, Cl 8.8, Full Thd

1шт.

71

87868

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/4", Gr 5, Full Thd

4шт.

73

9807008

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 6", Gr 5

1шт.

81

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

1шт.

83

87016

WASHER,0.41" ID x 0.81" OD x 0.07" Thk

4шт.

84

87365

WASHER,0.66" ID x 1.31" OD x 0.1" Thk

1шт.

87

86629539

NUT,5/16"-24, G5

1шт.

89

9628503

NUT,3/8"-16, G5

1шт.

91

100016

NUT,M10 x 1.5, Cl 8

1шт.

94

9637692

NUT,3/8"-16, GB

4шт.

95

9636698

NUT,1/2"-13, GB

4шт.

96

19670

NUT,5/8"-11, GB

3шт.

98

280250

COTTER PIN,3/32" OD x 3/4" L

1шт.

101

87569

LUBE NIPPLE,45 Degree, 1/4" NPT x 4/5" L, Drive

1шт.
