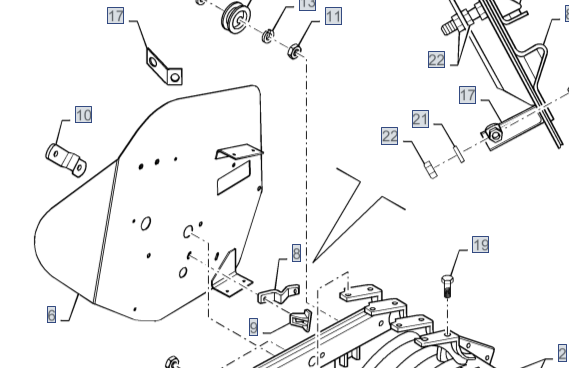

Запчасти Case IH SB541 (60.220.09) - PICKUP PIVOT PIPE (60) - PRODUCT FEEDING

86630310

PICK-UP

SB531

1шт.

86630898

PICK-UP

SB541

1шт.

1

86635497

SHEET

Side, LH

1шт.

2

86635521

PIN

Pivot Pipe, SB531

1шт.

2

86635619

PIPE ASSY.

Pivot, SB541

1шт.

3

86635481

GUARD

Pickup

2шт.

4

86635483

GUARD

Pickup, SB531

21шт.

4

86635483

GUARD

Pickup, SB541

25шт.

5

40662

BRACKET

4шт.

6

86635532

SHEET

RH

1шт.

7

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

3шт.

8

86640845

SUPPORT

1шт.

9

86640885

BRACKET

1шт.

10

86640886

COVER

1шт.

11

88727

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 2 1/2", Gr 5

1шт.

12

678571

IDLER WHEEL

1шт.

13

29684

WASHER,13.5mm ID x 50.8mm OD x 5.52mm Thk

Belleville, 1/2"

2шт.

14

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

2шт.

15

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

6шт.

16

88727

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 2 1/2", Gr 5

1шт.

17

86641545

SUPPORT

1шт.

18

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

3шт.

19

380426

SCREW,Flng, M6 x 10mm

Self-Tapping, HWH, M6 x 1 x 10, SB531

92шт.

19

380426

SCREW,Flng, M6 x 10mm

Self-Tapping, HWH, M6 x 1 x 10, SB541

108шт.

20

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

2шт.

21

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

2шт.

22

9635082

NUT,5/16" - 18, Gr 5

2шт.

23

86977196

SUPPORT

Upper

1шт.

Welding Required

1шт.

24

86977213

SUPPORT

Lower

1шт.

Welding Required

1шт.

25

86640885

BRACKET

1шт.

26

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

3шт.

27

280615

BOLT,1/2"-13 x 2.8.13" OAL, Cl 5, Full Thd

1шт.

28

280431

NUT,1/2"-13, G5

3шт.

29

7770

NUT,Hex, 1/4 - 20, Cl 5

1шт.

30

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

4шт.

31

84468

SCREW,Slotted Truss Hd, 1/4" - 20 x 5/8"

1шт.
