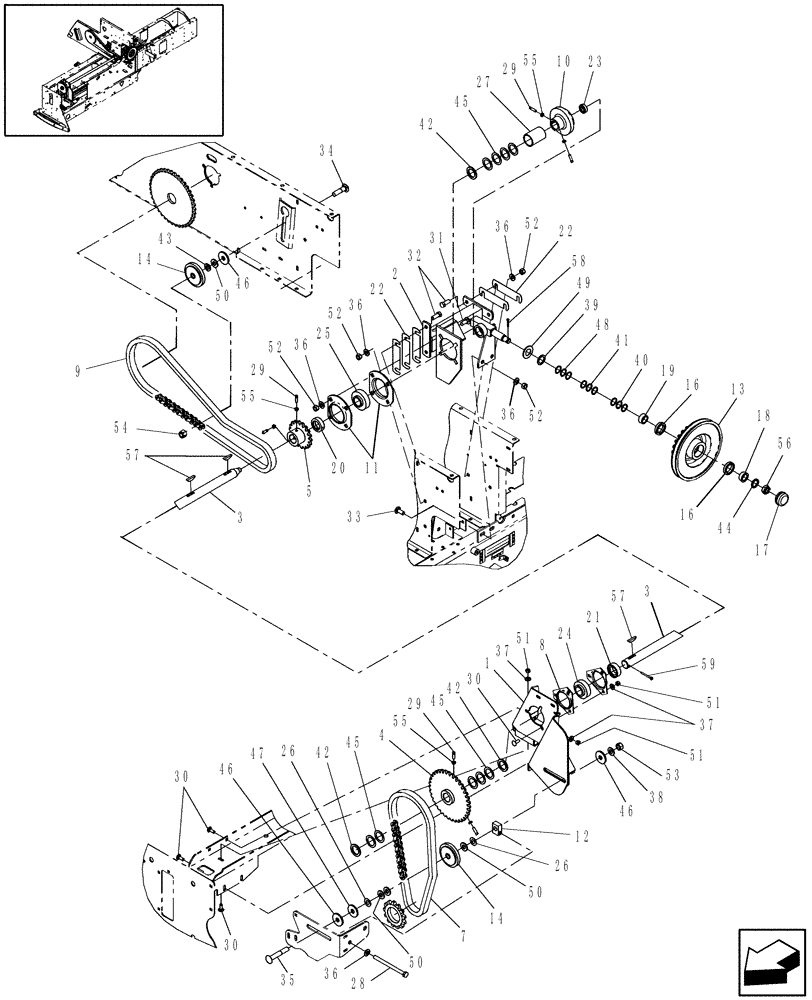

Запчасти Case IH SB541 (60.220.06) - FEEDER DRIVESHAFT (60) - PRODUCT FEEDING

1

87746180

BRACKET

1шт.

2

848615

ANGLE

1шт.

3

9801471

SHAFT

1шт.

4

9801473

SPROCKET

1шт.

5

9801474

DRIVING SPROCKET

1шт.

7

848638

CHAIN

1шт.

8

86620026

FLANGED BEARING

2шт.

9

848630

CHAIN

Roller, RC60, 94 Total Pitches, Includes: Ref. 60

1шт.

10

9801472

DRIVE PINION

1шт.

11

86548973

FLANGE

2шт.

12

87667418

BLOCK

1шт.

13

87648794

SHEAVE

1шт.

14

511265

SPROCKET

2шт.

16

132709

BEARING CUP,50.29mm OD x 10.67mm W

2шт.

17

200734

HUB CAP

1шт.

18

132710

BEARING CONE,25.4mm ID x 14.73mm W

1шт.

19

223796

ROLLER BEARING,25.4mm ID x 14.73mm W

1шт.

20

45393

COLLAR

1шт.

21

47067

RETAINER COLLAR,34.92mm ID x 56.33mm OD x 17.46mm Thk

1шт.

22

848616

SHIM

5/ARшт.

23

86629503

BALL BEARING,17mm ID x 35mm OD x 10mm W

1шт.

24

47559

BALL BEARING,39.937 mm ID x 72 mm OD x 37.7 mm

1шт.

25

86575514

BALL BEARING,34.92mm ID x 80mm OD x 24.3mm W

1шт.

26

47407

WASHER,16.7mm ID x 33.3mm OD x 0.75mm Thk

2/ARшт.

27

848622

SPACER

1шт.

28

281022

BOLT,Tap, Hex, 1/2" - 13 x 6 1/2", Gr 5

1шт.

29

88971

SET SCREW,5/16" - 18 x 1"

6шт.

30

88682

CARRIAGE BOLT,Short Nk, 3/8"-16 x 1", Gr 5

8шт.

31

87868

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/4", Gr 5, Full Thd

4шт.

32

87670

BOLT,1/2" - 13 x 1-1/4", Full Thd, Gr 5

4шт.

33

88707

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/4", Gr 5, Full Thd

2шт.

34

280466

CARRIAGE BOLT,Short Sq Nk, 5/8" - 11 x 2 1/2", Gr 5

1шт.

35

280547

CARRIAGE BOLT,Sht Sq Nk, 5/8" - 11 x 4", Gr 5

1шт.

36

86513238

LOCK WASHER,.515” ID x 1.070” OD x .120” TK

11шт.

38

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

6шт.

38

140048

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 2.8mm Thk

1шт.

39

673

WASHER,29mm ID x 41mm OD x 1.52mm Thk

1шт.

40

245531

WASHER,25.53mm ID x 31.24mm OD x 1.65mm Thk

3шт.

41

245532

WASHER,25.53mm ID x 31.24mm OD x 0.38mm Thk

3/ARшт.

42

267571

WASHER

3/ARшт.

43

49637

WASHER,16.5mm ID x 30mm OD x 2.99mm Thk

1шт.

44

536293

WASHER

1/ARшт.

45

58630

WASHER,.0299" Thk

9/ARшт.

46

604937

WASHER,16.7mm ID x 52.4mm OD

3шт.

47

623800

WASHER

1шт.

48

80245530

WASHER,25.53mm ID x 31.24mm OD x 0.91mm Thk

3/ARшт.

49

9615177

WASHER

1шт.

50

87365

WASHER,0.66" ID x 1.31" OD x 0.1" Thk

4/ARшт.

51

9628503

NUT,3/8"-16, G5

6шт.

52

280431

NUT,1/2"-13, G5

10шт.

53

280374

NUT,Hex, 5/8" - 11, Gr 5

1шт.

54

19670

NUT,5/8"-11, GB

1шт.

55

9626568

JAM NUT,Jam, 5/16"-18, G2

6шт.

56

412106

SLOTTED NUT,M20 x 1.5, Cl 04

1шт.

57

87122

WOODRUFF KEY,#128, 5/16" x 2 1/8"

3шт.

58

84887

COTTER PIN,5/32" x 1 1/4"

1шт.

59

80812

COTTER PIN,3/16" x 2"

1шт.

60

165590

CONNECTING LINK

1шт.

Not Illustrated

1шт.
